  • XI100XUSB-PRO Magewell
  • Magewell USB 3.0
  • XI100XUSB-PRO PNP USB 3.0

3G/HD/SD-SDI, HDMI DVI, VGA, YPbPr, CVBS to USB 3.0 By Magewell

$689.00
SKU:
XI100XUSB-PRO
Availability:
Ships within 24 hours
Shipping:
Free Shipping
Quantity:

Product Description

Magewell XI100USB-PRO (PNP) - Convert 3G/HD/SD-SDI, HDMI DVI, VGA, YPbPr, CVBS input and 1 unbalanced stereo audio

USB 3.0 Interface

XI100XUSB-PRO PnP supports UVC protocol, which enables Plug-and-Play on Windows, Linux and Mac OS X. Its actual data transmission rate is up to 390 MB/S.

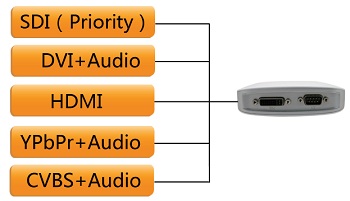

Various HD and SD inputs

By XI100XUSB-PRO (PnP), you can capture various kinds of SD and HD video, including SDI (3G/HD/SD) , HD inputs such as DVI, HDMI and analog inputs such as VGA and YPbPr. You can also connect to SD devices to capture S-video, CVBS and so on. You can capture nearly all the inputs by just using one XI100XUSB-PRO capture box.

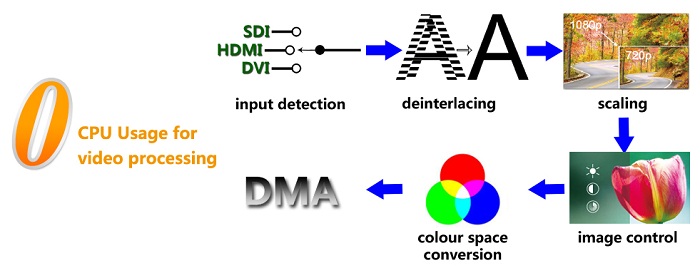

Professional Video Processing

With FPGA on the board, XI100XUSB-PRO (PnP) has powerful image control ability. The following work are fully done by FPGA causing zero CPU usage, including scaling or clipping the high-quality input, or converting its color space, removing the black edges, automatically detecting the interlaced video source and de-interlacing it.


Endless pursuit of clarity

Teeth may appear in image in fast motion in interlaced videos. XI100XUSB-PRO (PnP) automatically selects the suitable deinterlacing method, which is either line filtering or single field deinterlacing, so that sharpness and clarity of the image are improved.

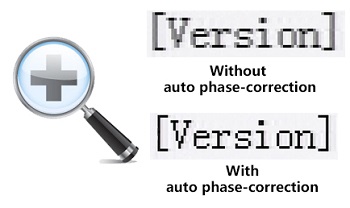

XI100XUSB-PRO (PnP) offers auto phase-correction function to handle VGA videos. As a result, the words in captured videos have sharper edges and are much more legible.

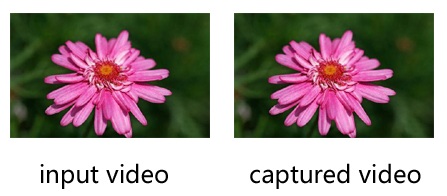

Accurate Image Color

XI100XUSB-PRO (PnP) uses a new video processing pipeline which is able to process videos with color space being both RGB and YUV. Depending on the setting of the input and output, it minimize the conversion between RGB to avoid color loss in YUV videos as much as possible. Currently, the new pipeline can process four different color spaces including YUV601, YUV709, Studio RGB and Computer RGB.


Multiple Types of Outputs

XI100XUSB-PRO (Pnp) supports the following output settings:

  • YUY2Ì´å´__4:2:2 packed format. 16 bits/pixel
  • NV12Ì´å´__4:2:0 planar formatÌ´å´_Î 12 bits/pixelÌ´å´_Î suitable for GPU encoders
  • I420Ì´å´__4:2:0 planar formatÌ´å´_Î12 bits/pixelÌ´å´_Î suitable for software encoders
  • RGB24Ì´å´__4:4:4 format Ì´å´_Î24 bits/pixel

Compatibility with more software and systems

It adopts standard development interface and is based on audio and video capture interface of DirectShow Filter and audio capture interface of DirectSound. It is based on IKsPropertySet expansion interface and it’s compatible with more software, like Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VideoLAN for Windows.

XI100XUSB-PRO (PnP) can run stably on Windows and Linux. In addition, it is perfectly compatible with Mac OS X.





Tech Spec's:

Connection
Host Interface USB3.0, *300-350MB/s throughput
USB2.0, *40MB/s throughput
Input Interface 1 DVI-I interface (can connect to HDMI, VGA, YPbPr)
1 BNC interface (can connect to SD/HD/3G-SDI)
1 DB9 interface (to YPbPr, S-Video, CVBS,1 unbalanced stereo audio line in)
DVI Input 1 1080p/60Hz HD DVI signal
HDMI Input 1 1080P/60Hz HDMI signal
SDI Input 1 SD/HD/3G-SDI signal, it can reach 1080P/60Hz
VGA Input 1 VGA
YPbPr Input 2 YPbPr
CVBS Input 1 SD video signal
HDMI Audio Input 1 LPCM audio signal
SDI Audio Input 1 embedded SDI audio
Analog Audio Input 1 analog audio


Standard
DVI Input Formats It meets DVI 1.0 standard, single connection (480i, 576i, 480p, 576p, 720p, 1080i, 1080p)
HDMI Input Formats It meets HDMI 1.3 standard, support 36 bits DeepColor
SDI Input Formats SD/HD/3G-SDI, it meets standards of SMPTE-259/274/296/372/424/425/292
YPbPr Input Formats 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
VGA Input Formats 640×400—2048×1536 when the pixel is below 170MHz
CVBS Input Standard PAL/ NTSC
Output Format Resolution: 640×480 / 720×480 / 720×576 / 768×576 / 800×600 / 1024×768 / 1280×720 / 1280×800 / 1280×960 / 1280×1024 / 1368×768 / 1440×900 / 1600×1200 / 1680×1050 / 1920×1080 / 1920×1200 / 640×360 / 856×480 / 960×540
Frame rate: 15 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
Audio and video capture support UVC (USB video class), UACÌ´å´_öUSB audio classÌ´å´_ä protocol
Video sampling rate CVBS: 57.27MHz (4x Oversampling)
RGB /YPbPr: 170MHz
HDMI/ DVI: 225MHz
Color Space YUY2, NV12, I420, RGB24


Video Processing
Color space switch Hardware color switch
Image Scale Hardware scale
Image Adjustment Image adjustment including brightness, contrast, hue, saturation


Others
Operating System Support Support following operating systems (x 86 version or x64 version):
Windows 7
Windows Server 2008 R2
Linux (Kernel version 2.6.38 and above)
OS X (10.8 and above)
Software Compatibility Windows Media Encoder (Windows)
Adobe Flash Media Live Encoder (Windows, OS X)
Real Producer Plus (Windows)
VLC (Windows, OS X, Linux)
QuickTime Broadcaster (OS X)
QuickTime Player (OS X)
Wirecast (Windows, OS X)
Compatible development interface DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux)
Onboard Memory 128MB DDR2, working rate is 160 Mhz, bit width is 32 bits
Update Firmware can be updated.
Size 98mm x 98mmx25mm (L/W/H)
Power Consumption <= 3.5W
Working temperature range 0-50 degree centigrade
Storage temperature range -20-70 degree centigrade
Storage humidity range 5%-90%
