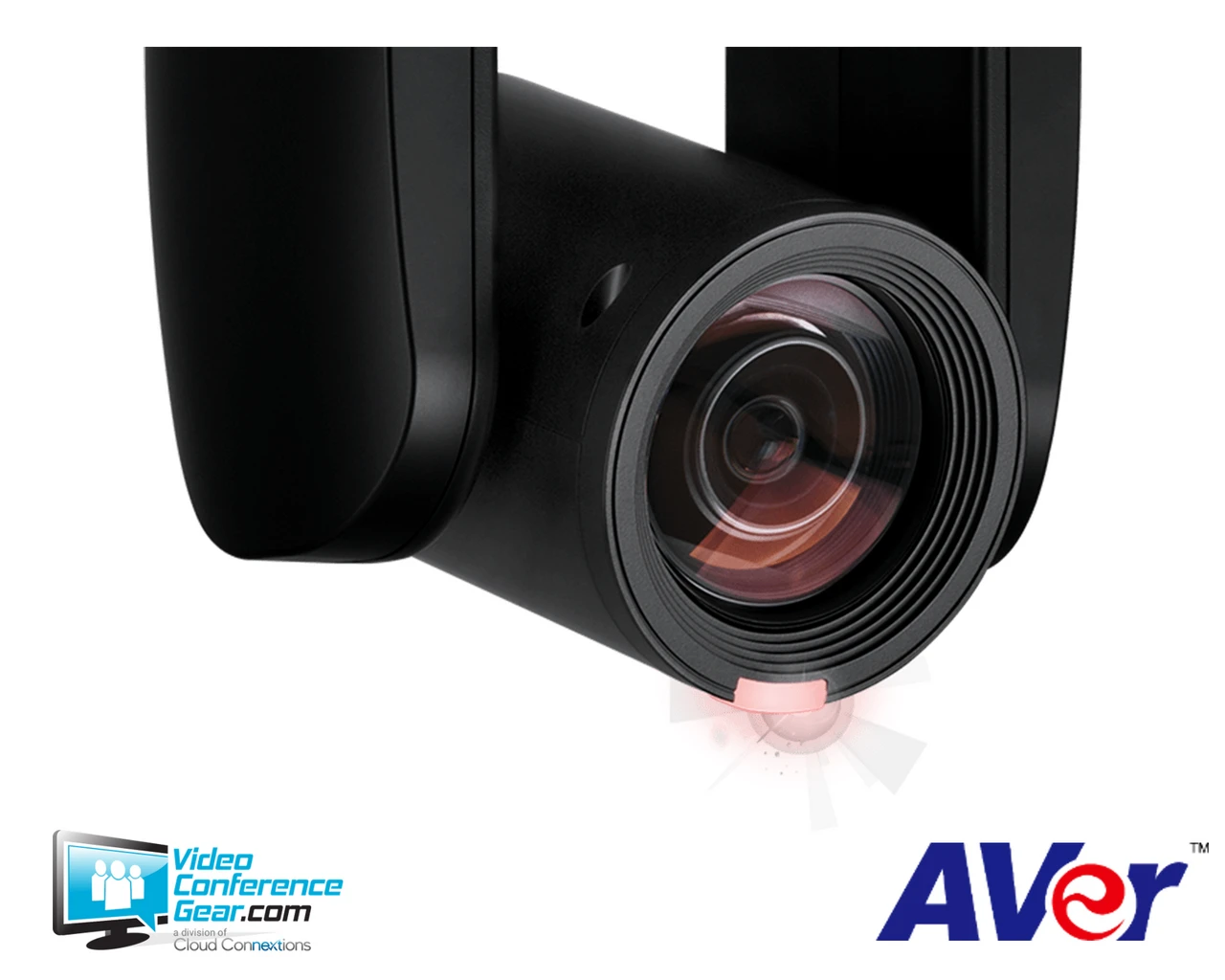

AVer TR315 V3 — 12X 4K AI Auto Tracking PTZ Camera (Black)

4K clarity and AI tracking in a versatile 12X zoom package.

The AVer TR315 V3 is a professional AI auto tracking PTZ camera that combines 4K 60fps resolution with a 12X optical zoom for broadcast-quality streaming, lecture capture, houses of worship, and live event production. The 8MP Exmor CMOS sensor delivers stunning Ultra HD detail, while three AI-powered tracking modes — Presenter, Zone, and Hybrid — automatically follow speakers and capture content zones without a dedicated camera operator. An upgrade from the previous generation TR313V2, the TR315 delivers improved performance with simultaneous output via HDMI, 3G-SDI, USB, and IP, built-in NDI®|HX3, and flexible power via PoE+. Backed by AVer’s industry-leading 5-year warranty, the TR315 sits at the sweet spot between the 1080p TR211 and the 30X zoom TR335 — delivering 4K quality at a mid-range price point.

3 AI Auto Tracking Modes
The TR315 features three distinct tracking modes driven by on-camera AI processing. Presenter Mode follows speakers as they move — even off-stage — tracking full body or half body with smooth, natural camera movement. Zone Mode lets you establish up to four preset content zones to capture screens, whiteboards, or display areas. Hybrid Mode combines the best of both, auto-switching between presenter tracking and zone capture for maximum production flexibility.

12X Optical Zoom with 4K60 Output
The TR315’s 12X optical zoom (144X total with digital zoom) operates seamlessly during pan and tilt movements, allowing dynamic shot adjustments without sacrificing image quality. The 8MP Exmor CMOS sensor captures stunning detail at up to 4K 60fps, with a minimum illumination of 0.5 lux and Wide Dynamic Range (WDR) for clear, balanced images in any lighting condition.

NDI®|HX3 Built In
The TR315 includes the latest NDI®|HX3 protocol, enabling high-quality, low-latency IP video production. Stream 4Kp60 over NDI with less than 100ms latency, making the TR315 ideal for multi-camera IP-based production workflows using platforms like vMix, NewTek TriCaster, and other NDI-compatible systems.

Simultaneous Multi-Format Output
Stream and record from multiple outputs at the same time. The TR315 delivers 4K60 through HDMI, USB, and IP simultaneously, plus 3G-SDI for traditional broadcast integration. Support for H.265, H.264, MJPEG, and RTSP/RTMP streaming protocols ensures compatibility with virtually any production pipeline.

Voice Tracking Integration
Pair the TR315 with compatible microphones for precise voice tracking using camera preset points. Run PTZ Link software on an in-room computer, or integrate the AVer MT300N tracking box for a dedicated, worry-free voice tracking solution.

Gesture Control
The TR315 supports intuitive hand gesture commands for hands-free operation. Activate or deactivate tracking, switch between body framing modes, zoom in, and control camera movement — all without touching a remote or controller.

Tally Light & Multi-Camera Production
An integrated tally light illuminates red when the camera is the active source, simplifying multi-camera live productions and letting presenters know which camera is live.

Free Software & Broad Compatibility
AVer provides CaptureShare and PTZ Management software at no cost, plus the AVer PTZ Control Panel for iPad. The TR315 is compatible with Crestron, Extron, echo360, Panopto, Kaltura, vMix, Zoom, Telestream, NewTek, and many more production platforms.

AVer TR315 V3 Specifications

Image Sensor

• 1/2.8” 8MP Exmor CMOS sensor
• Resolution: up to 3840 x 2160 (4K UHD)
• Frame rates: 4K/1080p/720p at 60, 59.94, 50, 30, 29.97, 25 fps
• TV line: 1400 (center/wide)
• Minimum illumination: 0.5 lux (50 IRE, F1.6)
• Wide Dynamic Range (WDR)
• 2D/3D noise reduction, backlight compensation
• Auto/manual white balance and gain control

Lens & Zoom

• 12X optical zoom, 12X digital zoom (144X total)
• Focal length: 3.90 mm – 46.80 mm (varifocal)
• Aperture: f/1.6 (wide) – f/4.8 (tele)
• Horizontal FOV: 62.3° (wide) to 2.5° (tele)
• Vertical FOV: 37.3° (wide) to 1.4° (tele)
• Diagonal FOV: 69.2° (wide) to 2.8° (tele)
• Zoom operates during pan and tilt movements

Pan / Tilt

• Pan range: ±170°
• Tilt range: -30° to +90°
• Smooth, precise mechanical PTZ movement

AI Auto Tracking

• Presenter Mode: full body or half body speaker tracking
• Zone Mode: up to 4 preset content zones
• Hybrid Mode: auto-switches between Presenter and Zone
• Gesture control: activate/deactivate tracking, zoom, body mode switching
• Voice tracking via PTZ Link software or MT300N tracking box

Video Output

• HDMI: up to 4K60
• 3G-SDI
• USB 3.1 Gen 1 Type-B
• IP streaming (H.265, H.264, MJPEG)
• NDI®|HX3: 4Kp60 with <100ms latency
• Simultaneous output on USB and IP
• RTSP / RTMP streaming protocols

Audio

• 3.5mm stereo analog audio input (line in, embedded in stream)

Connectivity & Control

• Gigabit Ethernet (RJ-45) with PoE+
• RS-232 / RS-422 serial control
• VISCA, VISCA over IP, PELCO-D/P protocols
• Web UI for remote configuration
• HTTP, HTTPS, RTSP, RTMP

Power

• PoE+ (IEEE 802.3at)
• AC 100–240V to DC 12V (included adapter)

Features

• Tally light (red, for active camera indication)
• Ceiling mountable (ceiling mount hardware included)
• TAA compliant
• Black finish

Software

• CaptureShare (free desktop software)
• PTZ Management (free, manage 100+ cameras on network)
• AVer PTZ Control Panel for iPad
• PTZ Link (voice tracking software)

Warranty

• 5-year limited hardware warranty
• 1st-year Advanced Replacement with 24-hour turnaround

In the Box

• AVer TR315 V3 AI Auto Tracking PTZ Camera (Black)
• Remote control
• 12V power adapter and power cable
• RS-232 In/Out cable
• DIN 8 to D-Sub 9 cable
• Ceiling mounts (x2)
• M2x4mm screws (x3), M3x4mm screws (x3)
• Cable fixing plates and cable ties (x4)
• Drilling template
• Quick start guide
