Highlights
- Dual-lens design: 30X optical zoom PTZ + 110° wide-angle lens
- 8MP 4K Exmor CMOS sensor with 4K60 output
- 4 AI auto tracking modes: Presenter, Zone, Segment, and Hybrid
- NDI® High Bandwidth for ultra-low latency IP streaming
- Dual HDMI + USB + 3G-SDI + IP outputs simultaneously
- Dual USB streams via single cable for independent streaming and recording
- Wide-angle lens provides overview while PTZ tracks close-ups
- Picture-in-Picture (PiP) for simultaneous speaker and room views
- PoE++ (802.3bt) for single-cable power and data
- Wall and ceiling mount options with tiltable secondary lens
- 5-year warranty with 1st-year Advanced Replacement
Resources

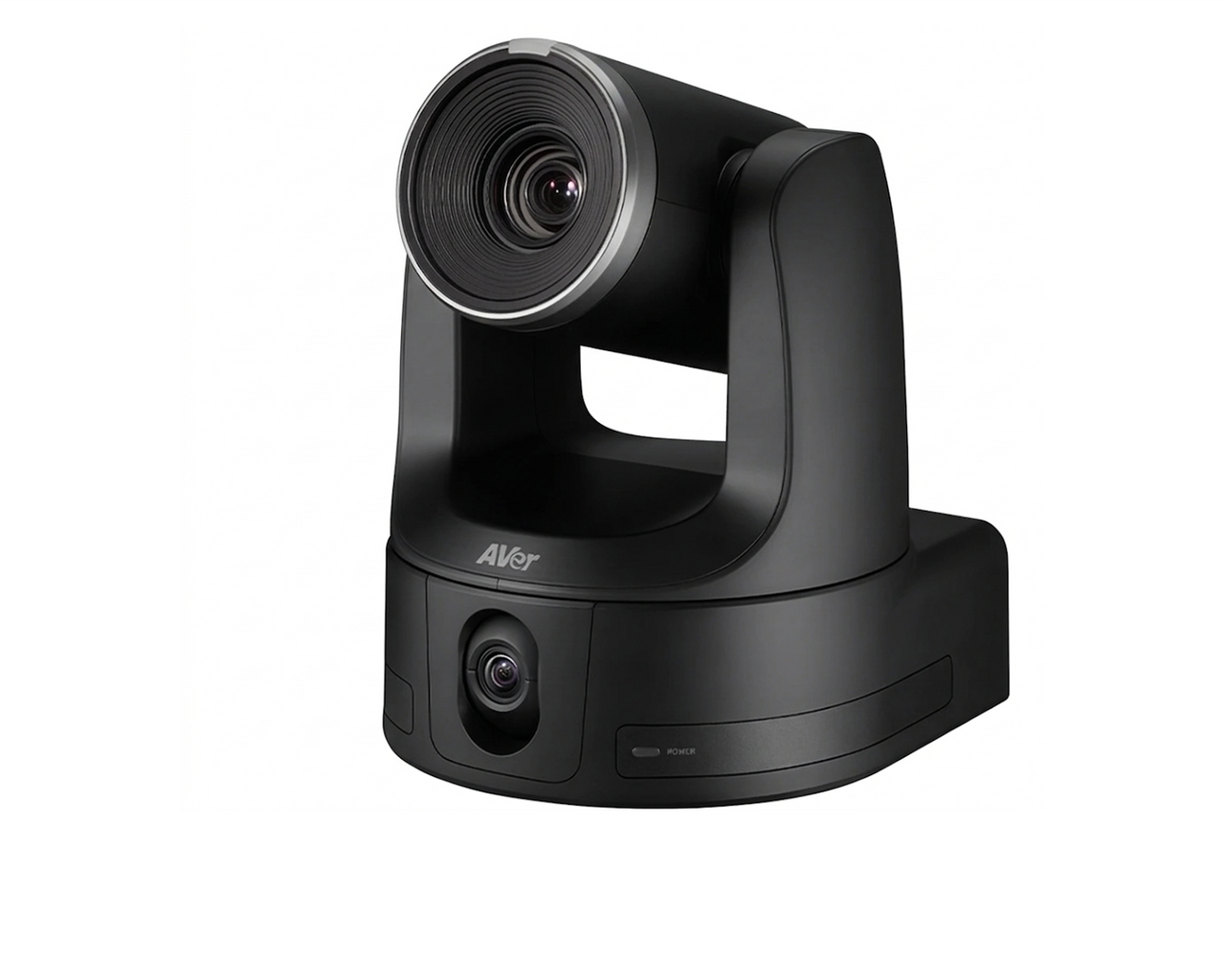

AVer TR535N Professional Dual-Lens AI Auto Tracking PTZ Camera with NDI®
Two lenses. Four tracking modes. Zero blind spots.
The AVer TR535N is AVer’s flagship dual-lens AI auto tracking PTZ camera, combining a 30X optical zoom PTZ lens with a 110° wide-angle lens for unmatched coverage and tracking precision. The wide-angle lens acts as a watchful eye, pinpointing subjects across the full room, while the PTZ lens delivers detailed close-ups — eliminating blind spots and ensuring presenters always stay in frame. Powered by four AI-driven tracking modes and built-in NDI® High Bandwidth streaming, the TR535N delivers 4K60 video through dual HDMI, USB, 3G-SDI, and IP outputs simultaneously. With PoE++ (802.3bt) support for single-cable power and data, the TR535N is the ultimate solution for enterprise collaboration, higher education, houses of worship, broadcasting, and live event production.
Revolutionary Dual-Lens Design
The TR535N’s dual-lens system is what sets it apart from traditional PTZ cameras. The 110° wide-angle lens continuously captures the entire scene, providing the AI engine with a comprehensive view for pinpointing subjects across a large area. The 30X optical zoom PTZ lens then delivers precision close-ups and smooth tracking. Together, the two lenses minimize blind spots and deliver an expansive field of view that keeps important subjects in frame even when they’re on the move. The Picture-in-Picture (PiP) function lets you display both the speaker close-up and the room overview simultaneously.
4 AI Auto Tracking Modes
The TR535N offers four advanced tracking modes. Presenter Mode follows speakers as they move freely, tracking full body or half body. Zone Mode establishes preset zones to prioritize static content like screens and whiteboards. Segment Mode selects specific visual content at any distance or height, keeping audiences engaged with relevant material. Hybrid Mode combines Presenter and Segment tracking, auto-switching between modes as presenters move through defined areas. A Shield Zone feature lets you exclude busy areas from the tracking zone to avoid unwanted triggers.
NDI® High Bandwidth Built In
The TR535N features full NDI® High Bandwidth integration — not just HX. This means almost lossless compression, ultra-low latency, and pristine image quality over IP. The TR535N fits seamlessly into existing NDI networks and workflows, making it ideal for multi-camera productions using vMix, NewTek TriCaster, and other NDI-compatible systems.
Dual Outputs Everywhere
The TR535N takes multi-output capability to the next level. Two HDMI ports connect to two monitors for simultaneous display and capture. Dual USB streams via a single USB cable enable independent recording and streaming to a PC. Add 3G-SDI and IP streaming (H.265, H.264, MJPEG via RTSP/RTMP), and you have the most versatile output options in AVer’s lineup.
Voice Tracking Integration
Pair the TR535N with compatible microphones from Audio-Technica, Biamp, ClearOne, Nureva, Shure, Sennheiser, or Yamaha for precise voice tracking using camera preset points. Run PTZ Link software on an in-room computer, or integrate the AVer MT300N tracking box for a dedicated solution.
Flexible Installation with Tiltable Secondary Lens
The TR535N’s innovative design allows wall and ceiling mounting, with a tiltable secondary wide-angle lens that adjusts to maintain optimal coverage regardless of mounting orientation. This ensures the wide-angle overview remains properly framed whether the camera is mounted above or to the side of the presentation area.
PoE++ Single-Cable Simplicity
With PoE++ (IEEE 802.3bt) support, the TR535N receives power and data through a single CAT cable, dramatically simplifying installation and reducing cable runs. AC power (12V adapter) is also included as an alternative.
Programmable Tally Lights
Programmable red, yellow, and green tally lights provide flexible signaling for multi-camera productions, letting presenters and operators know camera status at a glance.
Free Software & Broad Compatibility
AVer provides CaptureShare and PTZ Management software at no cost, plus the AVer PTZ Control Panel for iPad. The TR535N is compatible with Crestron, Extron, echo360, Panopto, Kaltura, vMix, Zoom, Telestream, NewTek, and many more production platforms.
AVer TR535N Specifications
PTZ Camera — Image Sensor
- 1/2.8” 8MP 4K Exmor CMOS sensor
- Resolution: up to 3840 x 2160 (4K UHD)
- Frame rates: 4K/1080p/720p at 60, 59.94, 50, 30, 29.97, 25 fps
- TV line: 1600 (center/wide)
- Wide Dynamic Range (WDR)
- 2D/3D noise reduction, backlight compensation
- Auto/manual white balance and gain control
PTZ Lens & Zoom
- 30X optical zoom, 12X digital zoom
- Focal length: 4.50 mm – 135.00 mm (varifocal)
- Aperture: f/1.8 (wide) – f/4.7 (tele)
- Zoom operates during pan and tilt movements
Wide-Angle Lens
- 110° field of view
- Tiltable for wall and ceiling mount installations
- Provides overview for AI tracking and PiP display
Pan / Tilt
- Pan range: ±170°
- Tilt range: -30° to +90°
- Smooth, precise mechanical PTZ movement
AI Auto Tracking
- Presenter Mode: full body or half body speaker tracking
- Zone Mode: preset zones for content capture
- Segment Mode: select specific content at any distance or height
- Hybrid Mode: auto-switches between Presenter and Segment
- Shield Zone: exclude areas from tracking
- Gesture control for hands-free operation
- Voice tracking via PTZ Link software or MT300N tracking box
- Compatible microphones: Audio-Technica, Biamp, ClearOne, Nureva, Shure, Sennheiser, Yamaha

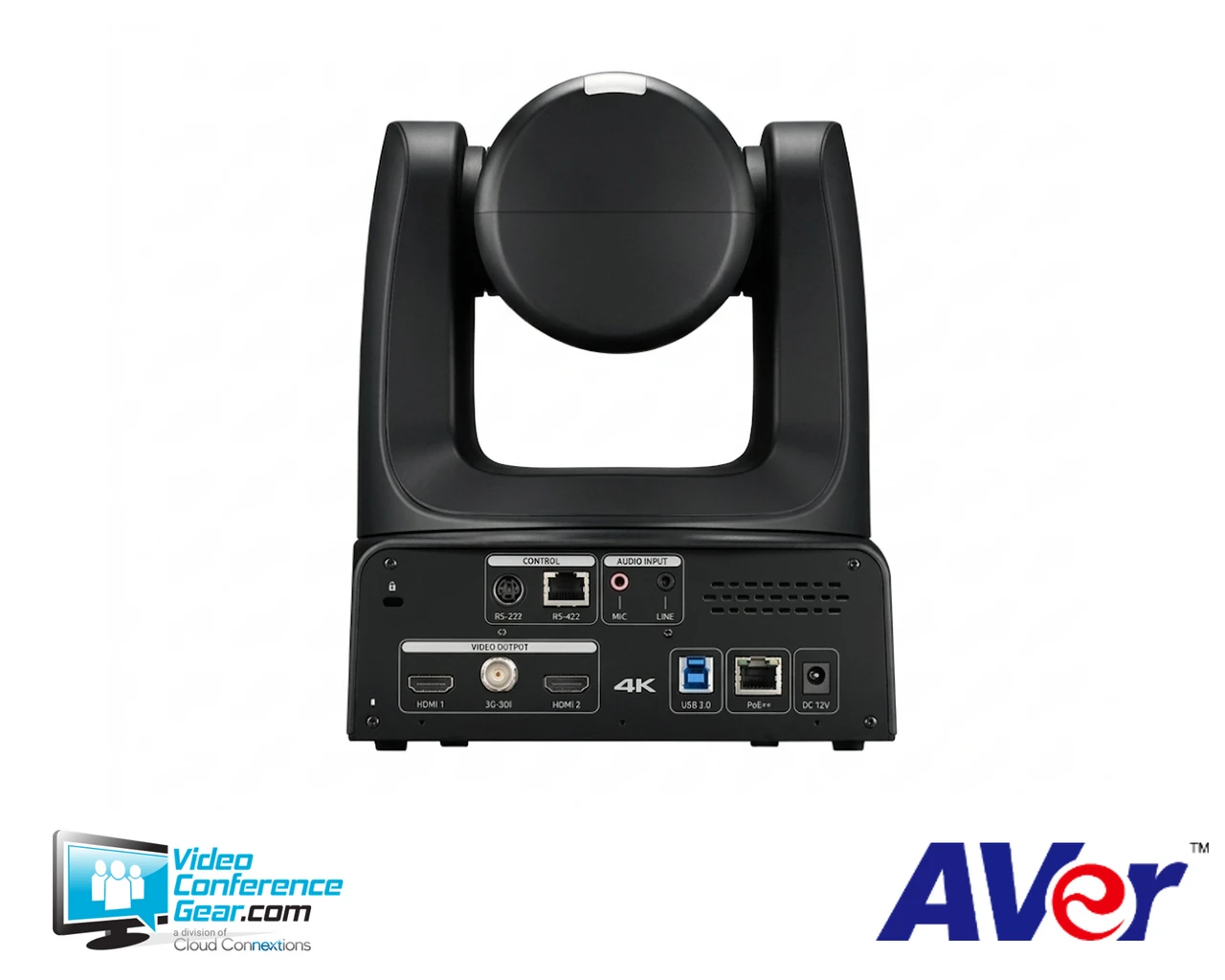

Video Output
- HDMI 1 + HDMI 2 (dual HDMI): up to 4K60
- 3G-SDI
- USB 3.0 (dual streams via single cable)
- IP streaming (H.265, H.264, MJPEG)
- NDI® High Bandwidth
- RTSP / RTMP streaming protocols
- Picture-in-Picture (PiP) mode
Audio
- Mic input: 3.5mm (50 mVrms max, 2.5V supplied)
- Line input: 3.5mm (1 Vrms max)
- Embedded audio in stream
Connectivity & Control
- Gigabit Ethernet (RJ-45) with PoE++ (IEEE 802.3bt)
- RS-232 / RS-422 serial control
- VISCA, VISCA over IP protocols
- Web UI for remote configuration
- Kensington lock slot
Power
- PoE++ (IEEE 802.3bt) — single cable for power and data
- DC 12V (adapter included)
Features
- Programmable tally lights (red, yellow, green)
- Wall and ceiling mountable
- TAA compliant
Software
- CaptureShare (free desktop software)
- PTZ Management (free, manage 100+ cameras on network)
- AVer PTZ Control Panel for iPad
- PTZ Link (voice tracking software)
Warranty
- 5-year limited hardware warranty
- 1st-year Advanced Replacement with 24-hour turnaround
In the Box
- AVer TR535N Dual-Lens Auto Tracking PTZ Camera
- Remote control
- HDMI cable
- RS-232 / RS-422 cables
- 12V power adapter and power cord
- Mounting hardware
- Quick start guide
Warranty Information
5 Years, with 24-hour Advanced Replacement (Year 1–5)Product Videos
