Highlights
- Connects Rally Mic Pods and the meeting-room computer at the table while linking to the Rally Display Hub through one CAT6A cable.
- Supports up to seven Rally Mic Pods for expandable microphone coverage across larger conference-room tables.
- Analyzes audio from up to 56 beams every 8ms to support active speaker detection.
- Provides HDMI passthrough, USB, Ethernet, and Rally Mic Pod connectivity for flexible room-system integration.
- Uses a tabletop form factor, with an optional Rally Mounting Kit available when hub mounting is preferred.
Ideal For
- Medium-to-large corporate conference rooms using Logitech Rally
- Medium-to-large conference rooms using Logitech Rally Plus
- PC-based meeting-room deployments requiring a replacement Rally Table Hub
- Existing Rally installations that need table-side microphone and room-computer connectivity
Resources

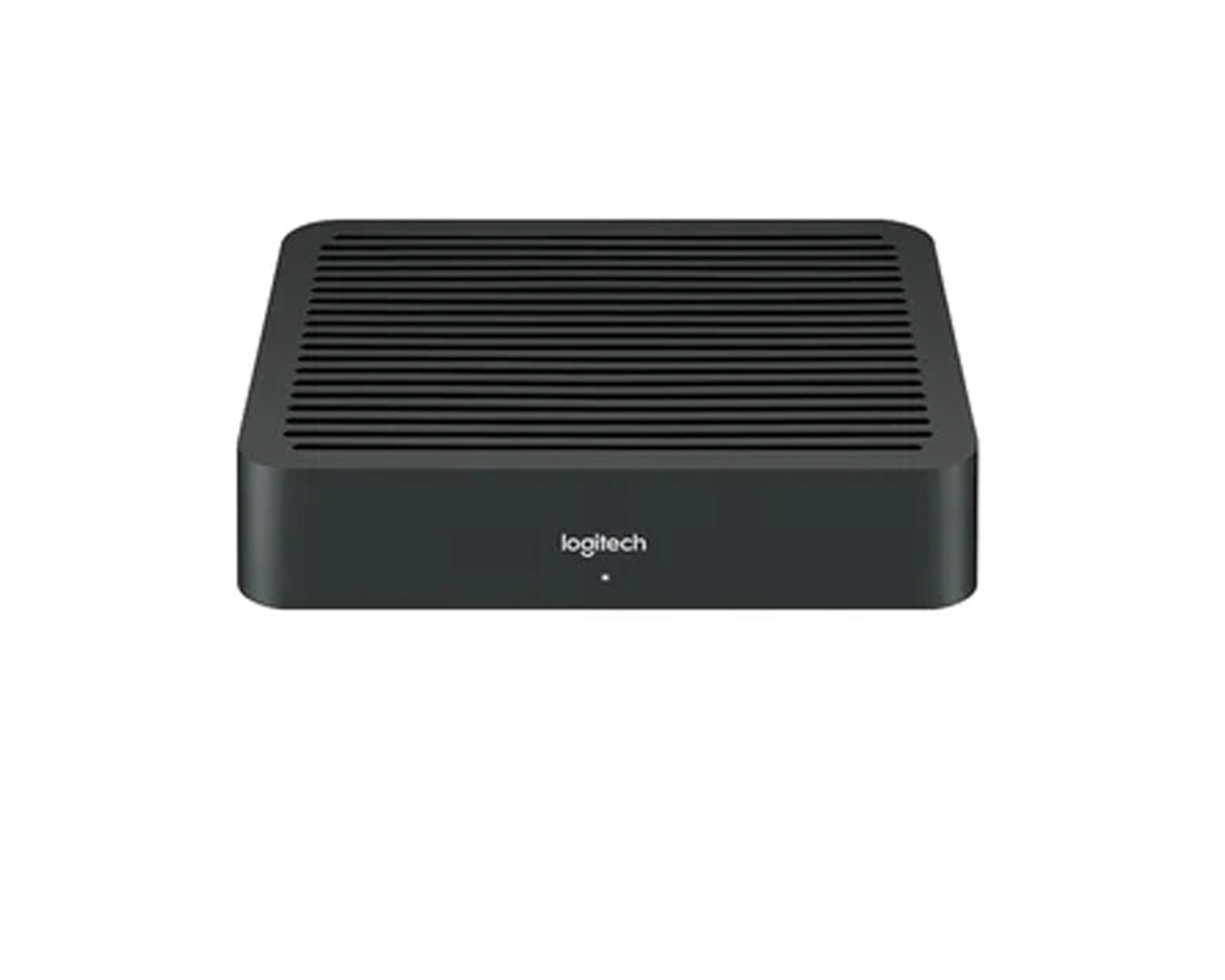

Logitech Rally Solution Table Hub
The Logitech Rally Solution Table Hub is a replacement component for Rally and Rally Plus systems in medium-to-large conference rooms. It centralizes table-side connections for Rally Mic Pods and the room computer while providing the link to the Rally Display Hub, making it a practical choice when an existing Rally installation needs a replacement hub.
This tabletop hub is best suited to PC-based room deployments with a compatible meeting-room computer, Rally Display Hub, and one or more Rally Mic Pods. The system can support up to seven Rally Mic Pods, while active speaker detection analyzes audio from up to 56 beams every 8ms. This is not a complete conferencing system; the required power adapter and related Rally components must be provided separately.
Key Specifications
- Connections: 2 x HDMI Type A passthrough; USB Type C; USB Type B for the meeting-room computer; USB Type A reserved for future capability; RJ45 connection to the Display Hub; reserved RJ45; proprietary 12-pin Rally Mic Pod connector.
- Display Hub connection: One CAT6A cable; customer-supplied CAT6A cables are supported up to 164 ft (50 m).
- Rally Mic Pod support: Up to 7 Mic Pods through the 12-pin connector.
- USB video capability: USB Type C is documented as Ultra HD / 4K capable.
- Active speaker detection: Audio analysis from up to 7 Mic Pods and 56 beams every 8ms.
- Power: Requires Logitech Rally Table Hub Power Adapter, P/N 993-001942, rated 96W / 48V.
- Dimensions: 1.57 in H x 6.93 in W x 5.43 in D (40 x 176 x 138 mm).
- Weight: 503 g.
- Form factor: Tabletop; optional Rally Mounting Kit provides mounting hardware for hubs.
What's Included
- Replacement Rally Table Hub only
Compatibility
- Meeting and collaboration platforms: No exact-product platform certification was verified for this replacement hub. Use it as part of a Logitech Rally or Rally Plus system connected to a compatible meeting-room computer running the required conferencing software.
- Logitech room systems: Designed for Logitech Rally and Rally Plus systems; connects to the Rally Display Hub through CAT6A.
- Microphones and audio: Supports Rally Mic Pods through the proprietary 12-pin connector, with system support for up to seven Rally Mic Pods.
- Required compute and room hardware: A compatible meeting-room computer with USB connectivity, Rally Display Hub, applicable Rally Mic Pod or Pods, and the required power adapter are needed for operation.
- Operating-system requirements: The Rally system documents Windows 10 or higher and macOS 10.10 or higher for the meeting-room computer.
- Cabling: The connection between the Table Hub and Display Hub uses CAT6A Ethernet cabling. A 16.4 ft (5 m) CAT6A F/UTP cable is associated with the Rally system; customer-supplied cables up to 164 ft (50 m) are supported.
Licensing, Warranty & Support
No subscription or license is required for the replacement Table Hub itself. Rally operation still requires compatible conferencing software and a compatible meeting-room computer; any software licensing for that environment is separate. The 993-001952 replacement does not include the Rally Table Hub power adapter, P/N 993-001942, which is required for operation. Logitech provides support documentation, Rally system support through Logitech Sync, warranty-claim access, and B2B assistance through a local reseller or salesperson for spare-part availability. Rally and Rally accessories are associated with a standard 2-year or 2-year limited hardware warranty, but exact replacement-part coverage can vary by region and purchase channel.
VideoConferenceGear.com Assistance
We can help validate that this replacement hub fits your Rally or Rally Plus room, confirm the required Display Hub, Mic Pods, CAT6A cabling, room computer, power adapter, and conferencing software, and coordinate accessory selection, nationwide deployment, and ongoing support.
Common Questions
Does the Logitech Rally Table Hub include the power supply?
No. The replacement hub does not include the power supply and requires the Logitech Rally Table Hub Power Adapter, P/N 993-001942, rated 96W / 48V.
Can this hub operate as a complete standalone conferencing system?
No. It is a replacement component for Logitech Rally and Rally Plus systems. It requires the related Rally Display Hub, applicable Rally Mic Pod or Pods, a compatible meeting-room computer, and the required power supply.
What does the Rally Table Hub connect to?
At the table, it connects Rally Mic Pods and the meeting-room computer, then links to the Rally Display Hub through one CAT6A cable. It also provides HDMI passthrough and additional USB and Ethernet connections for the room system.
How many Rally Mic Pods can the system support?
A Rally system can support up to seven Rally Mic Pods. The active speaker detection system analyzes audio from up to 56 beams every 8ms.
Are cables included with replacement SKU 993-001952?
The replacement package is the Rally Table Hub only, and the power supply is not included. Do not assume that the full Rally system cable package is included with this spare hub.
Warranty Information
2-year Limited Hardware WarrantyProduct Videos
