Highlights
- 4K video capture and output support provides detailed room video across common meeting resolutions.
- RightSight automatic framing and AI Viewfinder help keep meeting participants appropriately framed.
- Six beamforming microphones and three integrated speakers provide an integrated audio system for small rooms.
- Built-in Android/CollabOS compute allows supported room applications to run without a separate room PC.
- Tap IP adds a dedicated 10.12-inch touchscreen controller with a PoE network and power connection.
- Appliance, USB, and BYOD modes provide flexibility for platform-based rooms and laptop-led meetings.
Ideal For
- Huddle rooms
- Small meeting rooms for up to 12 participants
- Microsoft Teams Rooms, Zoom Rooms, or Google Meet on Android deployments
- RingCentral Rooms appliance configurations
- BYOD meeting rooms that connect to a user laptop over USB
- Small rooms requiring a dedicated touchscreen room controller
Resources

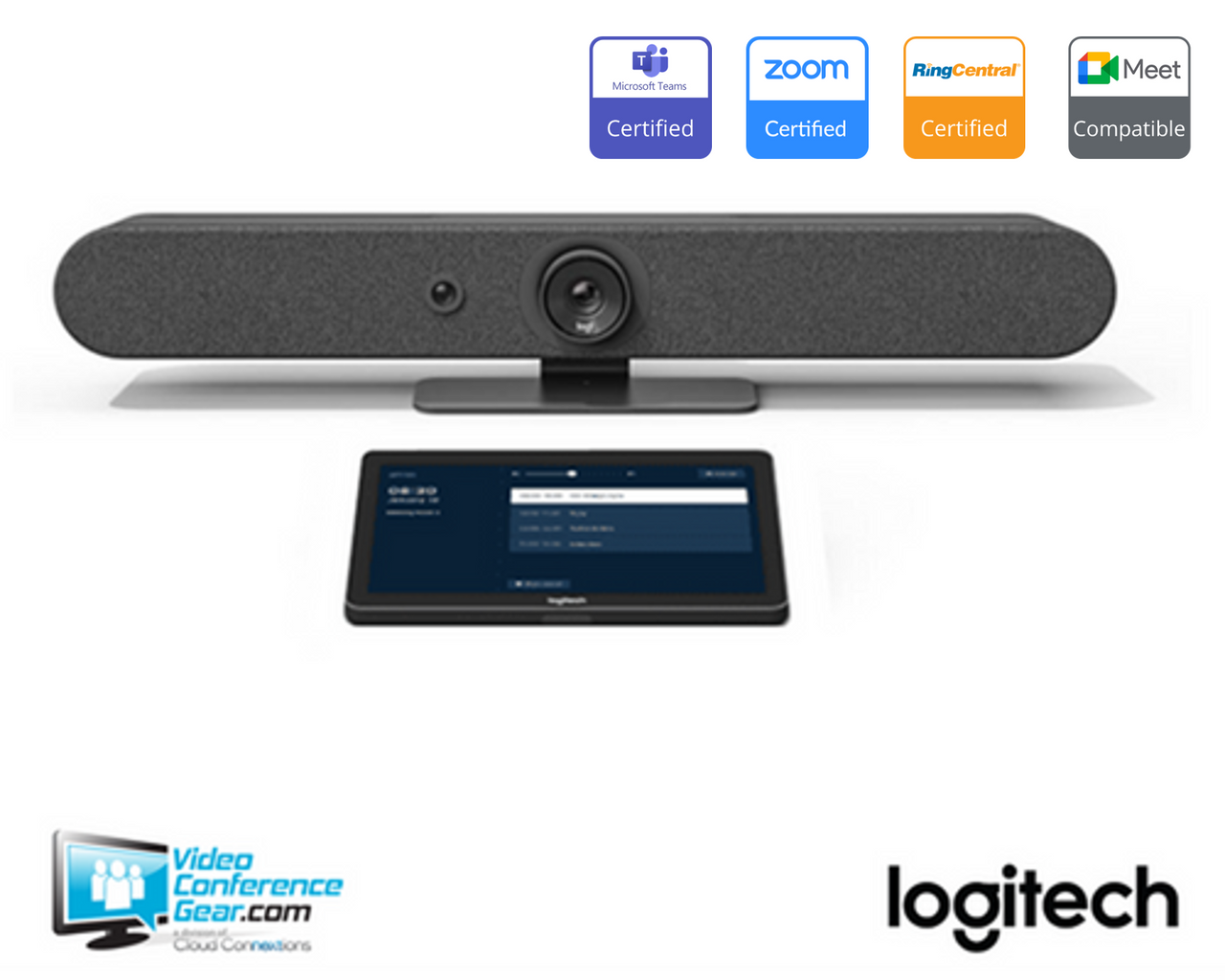

Logitech Rally Bar Mini + Tap IP PoE Appliance Bundle for Small Meeting Rooms – 991-000385
The Logitech Rally Bar Mini + Tap IP bundle brings the camera, microphones, speakers, room compute, and touch control together in one appliance-based system for huddle and small meeting rooms. The Rally Bar Mini captures and outputs video up to 4K, while the Tap IP provides a dedicated 10.12-inch interface for starting and managing meetings.
This configuration is best suited to small rooms and spaces with up to 12 participants, with support for up to two HDMI displays. Appliance mode does not require an external room computer, but the Tap IP requires a PoE network connection and the selected meeting platform may require its own license or service plan.
Platform Compatibility
- Certification applies to the listed component models and supported firmware; verify deployment firmware and current Microsoft support dates.
- Google's directory names Rally Bar Mini rather than the commercial bundle SKU; Tap IP pairing and current firmware should be confirmed for deployment.
- Use supported Zoom Rooms appliance firmware and current Zoom licensing.
Key Specifications
- Camera video: 4K, 1440p, 1080p, 900p, 720p, and SD supported at 30 fps.
- Field of view: 113° horizontal, 120° diagonal, and 80.7° vertical.
- Camera movement: motorized pan ±25°, tilt ±15°, and 4x HD digital zoom.
- Framing: Logitech RightSight automatic framing and AI Viewfinder.
- Microphones: six beamforming microphones.
- Speakers: one 70 mm woofer and two 38 mm mid-range drivers.

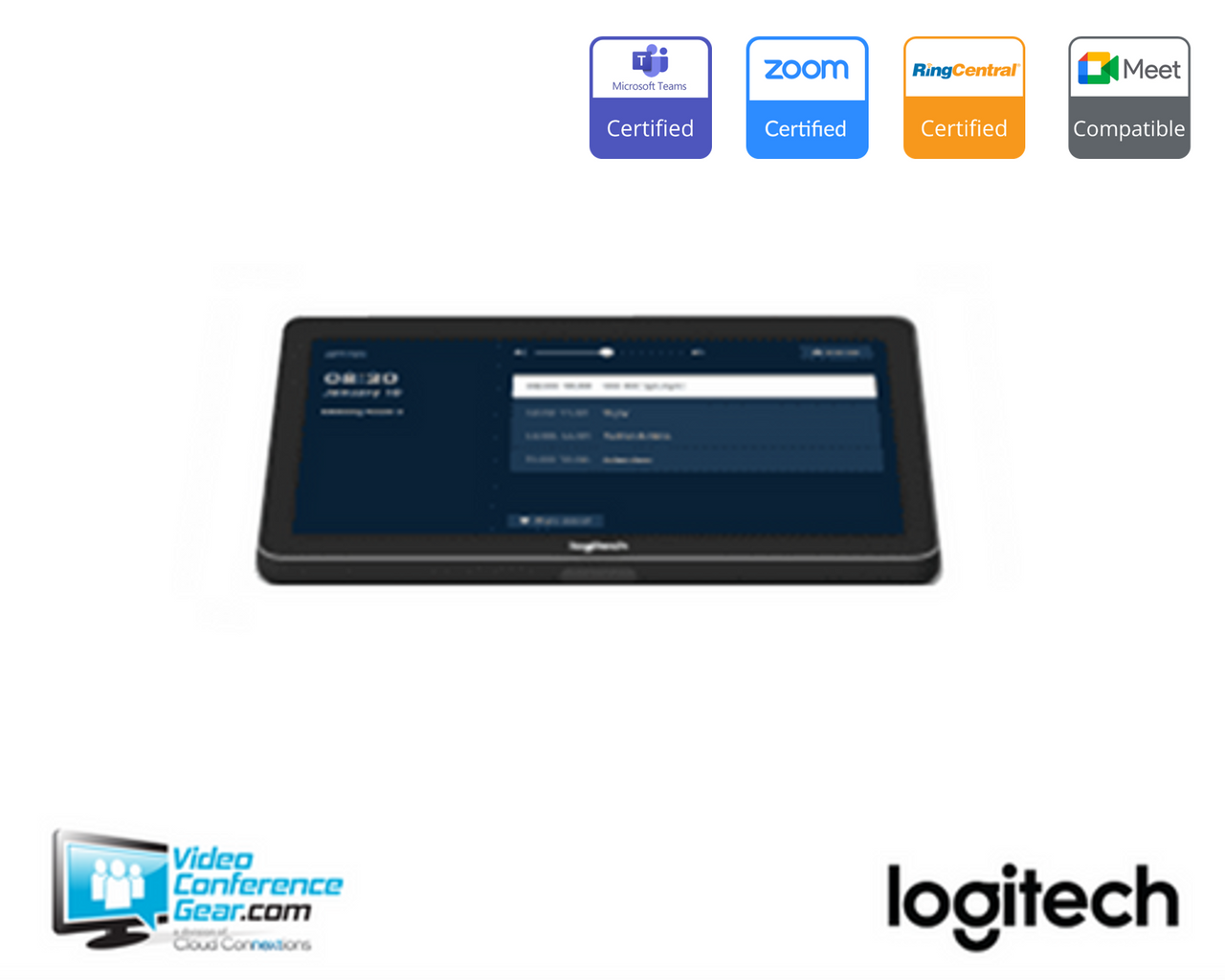

- Room controller: Logitech Tap IP with a 10.12-inch touchscreen, 1280 x 800 resolution, and 14° display angle.
- Display support: up to two HDMI displays, with display output up to 1080p.
- Connections: HDMI input and output, USB-A, USB-C, 10/100/1G Ethernet, Wi-Fi 802.11a/b/g/n/ac, Bluetooth, and proprietary Rally Mic Pod input.
- Power: Rally Bar Mini uses a 100–240 V AC power adapter with 19 V / 4.74 A output; Tap IP uses IEEE 802.3af Type 1 Class 3 PoE.
- Color: Graphite.
- Management: supports Logitech Sync for device monitoring, configuration, and updates.
What's Included
- Rally Bar Mini video bar
- Rally Bar Mini power supply and AC power cord
- HDMI cable
- USB cable
- Lens caps
- Remote control
- Logitech Tap IP touch controller
- VESA mounting screws
- Microfiber cloth and documentation
Compatibility
- Meeting and collaboration platforms: native appliance-mode support for Microsoft Teams Rooms, Zoom Rooms, and Google Meet on Android, subject to the applicable platform account, firmware, and regional requirements.
- RingCentral Rooms: supported appliance configuration for the Rally Bar Mini and Tap controller; confirm exact bundle certification for SKU 991-000385.
- Deployment modes: appliance mode with built-in Android/CollabOS compute, USB mode with a meeting-room PC, or BYOD mode connected to a user laptop.
- BYOD meetings: the Rally Bar Mini connects to a laptop over USB and provides the room camera, microphones, and speakers; content-sharing requirements depend on the chosen system topology.
- Displays and AV: supports up to two HDMI displays and includes HDMI input and output for room-system connectivity.
- Network and control requirements: Tap IP requires a PoE network connection; the system also supports Ethernet, Wi-Fi, Bluetooth, USB, HDMI, and Rally Mic Pod connections.
- Audio expansion: optional Rally Mic Pods can extend microphone coverage; confirm the applicable deployment configuration before specifying the maximum number of additional pods.
Licensing, Warranty & Support
The hardware does not include a meeting-platform subscription or room-service license. Plan for the licensing required by the selected Microsoft Teams Rooms, Zoom Rooms, Google Meet, or RingCentral Rooms deployment, and confirm current commercial terms with the platform provider. Logitech Sync device management is supported for monitoring, configuration, and updates, but the required Sync tier or any advanced service plan is not included in this product specification and should be confirmed separately. A 2-year limited hardware warranty is included. We can help review the room-computer, display, PoE, microphone, platform licensing, and deployment requirements before ordering.
VideoConferenceGear.com Assistance
We can help validate whether this Rally Bar Mini and Tap IP configuration fits your room, confirm the selected meeting-platform workflow, and plan the required displays, PoE networking, accessories, and licensing. We can also coordinate installation, nationwide multi-location deployment, and ongoing support for your conferencing environment.
Common Questions
Does the bundle require an external room computer?
No for supported appliance-mode deployments. Rally Bar Mini includes Android/CollabOS compute and can run supported room applications directly; USB mode with a room PC and BYOD mode with a user laptop are also available.
Is the bundle suitable for BYOD meetings?
Yes. Connect Rally Bar Mini to a user laptop over USB to use the room camera, microphones, and speakers for a laptop-led meeting. Content sharing may require HDMI or a different accessory and connection topology.
How many displays can it support?
Up to two HDMI displays are supported in appliance mode, with display output up to 1080p.
Is the PoE cable for Tap IP included?
No. Tap IP requires a PoE network connection, and the PoE cable is not included, so plan for a compatible PoE connection and cable during installation.
Is a meeting-platform subscription included?
No platform subscription or room-service license is included with the hardware. The required license depends on whether the room uses Microsoft Teams Rooms, Zoom Rooms, Google Meet on Android, or RingCentral Rooms.
Warranty Information
Standard: 2-year limited hardware warranty included Extended: Additional one-year extended warranty available at the time of hardware purchase.Product Videos
