Highlights
- Combines the Logitech Tap touch controller with a Lenovo ThinkSmart Core Gen 2 compute device to run Microsoft Teams Rooms, no in-room laptop required
- Lenovo ThinkSmart Core Gen 2 is powered by an Intel Core Ultra 7 165H processor on the Intel vPro platform
- 10.1" capacitive touchscreen with anti-glare and oleophobic coating for one-touch join, scheduling, and in-call control
- Microsoft Teams certified compute platform, running Windows 11 IoT Enterprise for Collaboration
- Built-in Wi-Fi 6E and Bluetooth 5.3 for flexible wired or wireless network deployment
- Discrete TPM 2.0 and Kensington Security Slot on the compute unit for device-level physical and platform security
- Centrally managed through Lenovo ThinkSmart Manager and Logitech Sync
- Base kit only: does not include a camera, microphone, or speaker; requires a separately selected Microsoft Teams Rooms-certified video bar to complete the room
Ideal For
- Rooms standardizing on Microsoft Teams Rooms where the video bar is being selected or sourced separately
- Multi-room deployments needing a consistent control-and-compute layer across spaces of different sizes
- IT teams needing centralized device management through Lenovo ThinkSmart Manager and Logitech Sync
- Enterprise, education, and government environments consolidating on a single Teams Rooms compute standard
Resources

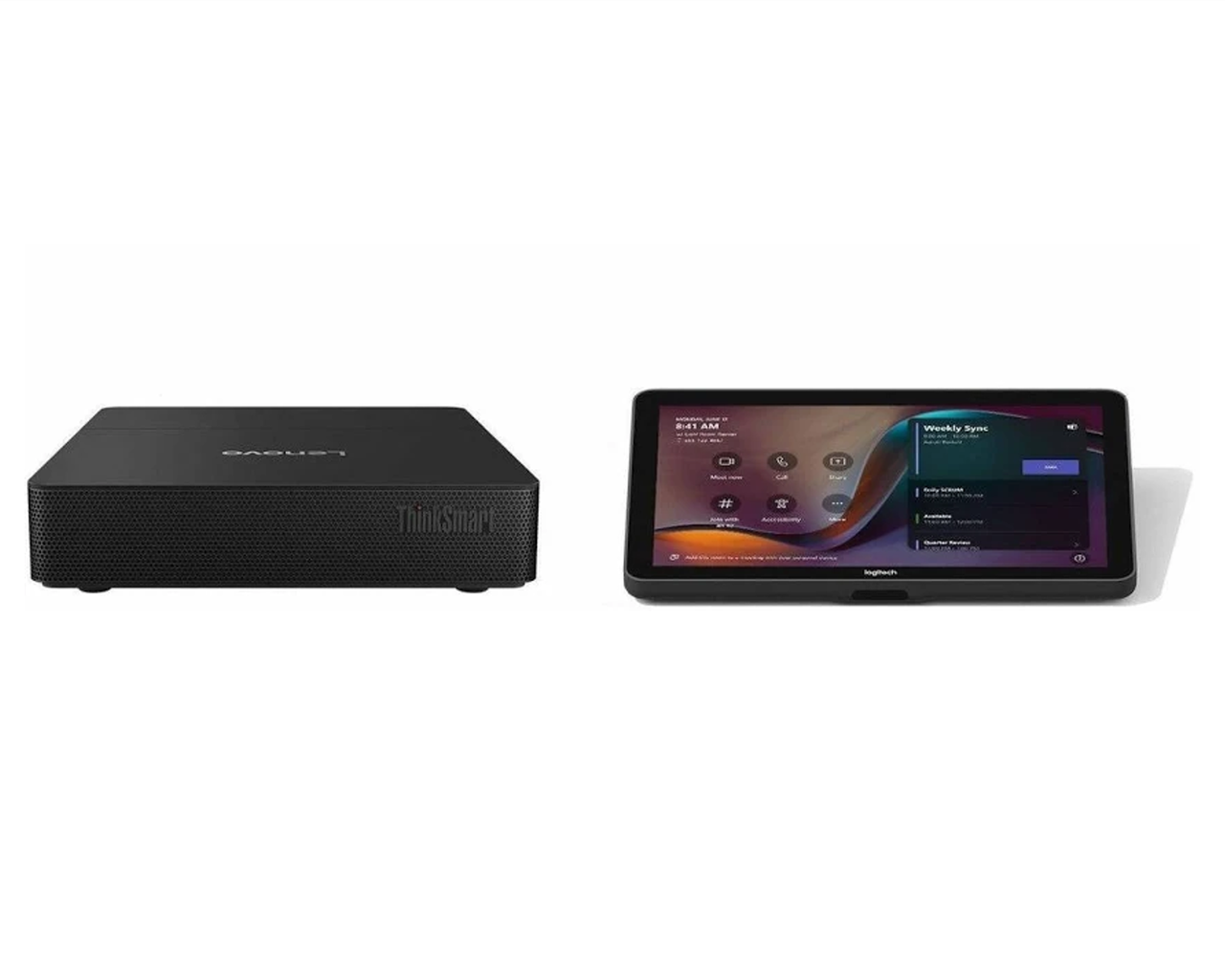

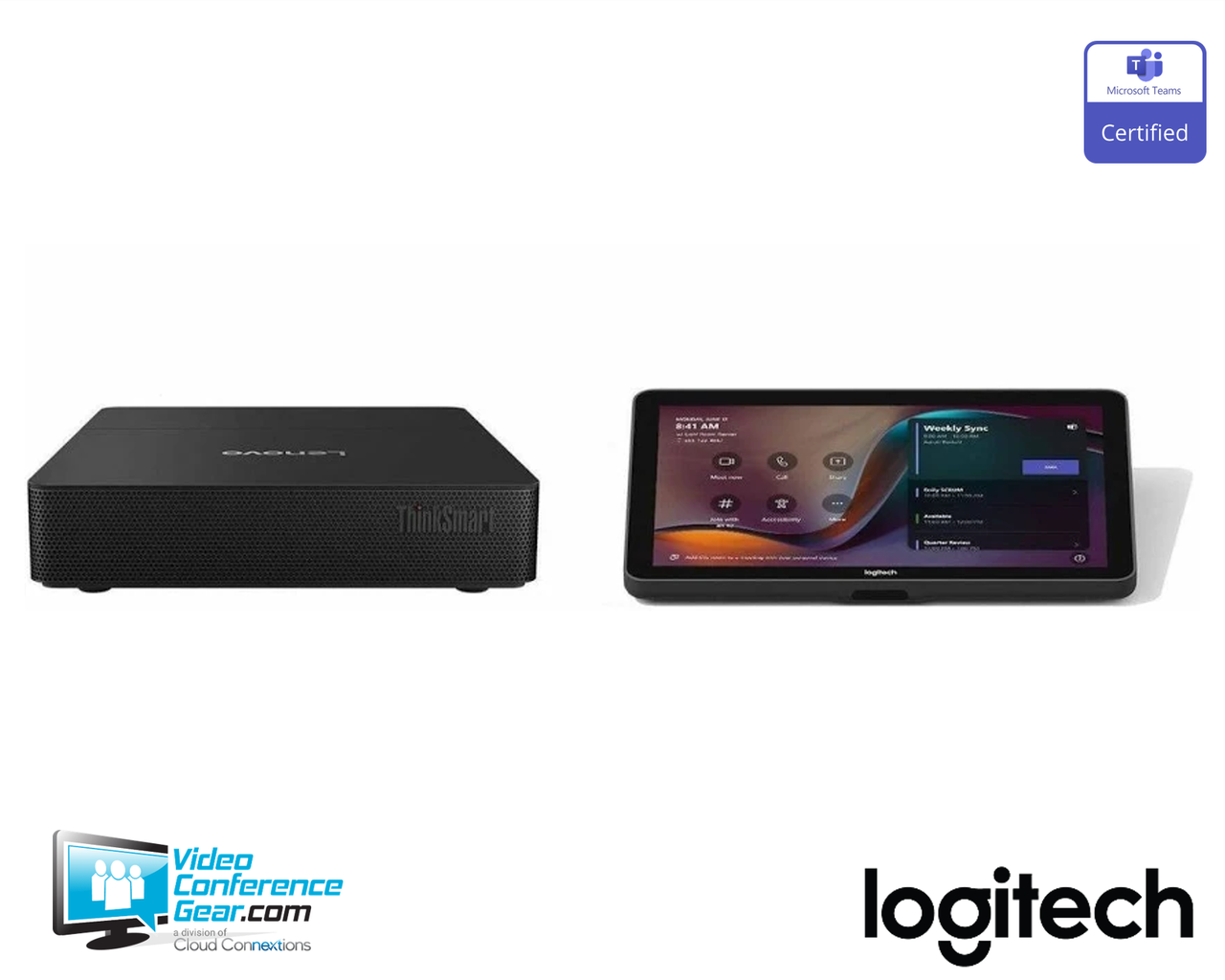

Logitech Tap with Lenovo ThinkSmart Core Gen 2 (Ultra 7) Base Bundle for Microsoft Teams Rooms, No Room Camera or Audio
The Logitech Tap with Lenovo ThinkSmart Core Gen 2 Base Bundle supplies the control and compute layer for a Microsoft Teams Rooms deployment. Logitech Tap gives the room a 10.1" touchscreen for one-touch join, calendar-based scheduling, and in-call control, while the Lenovo ThinkSmart Core Gen 2, built on an Intel Core Ultra 7 165H processor, runs Microsoft Teams Rooms certified software so the room does not depend on a laptop or a separate PC.
Because this is a base bundle, it does not include a camera, microphone, or speaker. Before ordering, confirm which Microsoft Teams Rooms-certified video bar will complete the room (Rally Bar, Rally Bar Mini, Rally, or MeetUp, sized to the space) and plan for the cabling and mounting location of the ThinkSmart Core Gen 2 unit alongside the Tap controller.
Does not include room camera or audio, create a full room solution with a Logitech Rally Bar or Rally Bar Mini.
Key Specifications
- Logitech Tap part number: 939-001950
- Logitech Tap touchscreen: 10.1" diagonal, 1280 x 800, capacitive touch with oleophobic and anti-glare coating, 14° display angle
- Logitech Tap dimensions: 2.28 in x 9.6 in x 7.0 in (58 x 244 x 179 mm); weight: 2.76 lbs (1.25 kg)
- Logitech Tap connectivity: USB-C to Cat5e receiver, USB 2.0 Type-A accessory port, HDMI input (1080p content sharing), 3.5 mm headset jack
- Lenovo ThinkSmart Core Gen 2 processor: Intel Core Ultra 7 165H, 16C (6P + 8E + 2LPE) / 22T, max turbo up to 5.0GHz, 24MB cache
- Lenovo ThinkSmart Core Gen 2 operating system: Windows 11 IoT Enterprise for Collaboration GAC 64
- Lenovo ThinkSmart Core Gen 2 memory and storage: up to 32GB DDR5 5600 SODIMM (Dual-Channel) / 256GB SSD M.2 2280 PCIe 4.0x4 NVMe
- Lenovo ThinkSmart Core Gen 2 graphics: Integrated Intel Arc Graphics, max resolution 3840x2160@60Hz
- Lenovo ThinkSmart Core Gen 2 rear ports: 2x USB-C (10Gbps, with DisplayPort 1.4), 3x USB-A (5Gbps), 1x USB-A (2.0, with IP controller), 2x HDMI-out 2.1 TMDS, 1x Ethernet RJ-45
- Lenovo ThinkSmart Core Gen 2 wireless: Intel Wi-Fi 6E AX211 (802.11ax 2x2) with Bluetooth 5.3, Intel vPro support
- Lenovo ThinkSmart Core Gen 2 dimensions: 7.28 in x 8.66 in x 1.5 in (185 x 220 x 38 mm) with cable management, without rubber feet; weight: 2.23 lbs (1.01 kg) with cable management
- Lenovo ThinkSmart Core Gen 2 security: discrete TPM 2.0 (TCG certified), Kensington Security Slot
What's Included
- Lenovo ThinkSmart Core Gen 2 compute device (Intel Core Ultra 7 165H)
- Logitech Tap touch controller (SKU 939-001950)
- Camera/Audio not included
Certifications and Compatibility
- Certified for Microsoft Teams Rooms
- Requires a separately selected Microsoft Teams Rooms-certified camera and audio device (video bar) to form a complete room
- Managed through Lenovo ThinkSmart Manager and Logitech Sync
Licensing, Warranty & Support
No separate software license is required to run Microsoft Teams Rooms on the ThinkSmart Core Gen 2; the room otherwise operates under your organization's existing Microsoft 365 and Teams Rooms licensing. Lenovo's ThinkSmart Core Gen 2 includes a 3-year limited onsite service warranty.
VideoConferenceGear.com Assistance
We can help confirm which Microsoft Teams Rooms-certified video bar fits your room size before you order, since this bundle supplies the control and compute layer only. We can also help plan mounting and cabling for the ThinkSmart Core Gen 2 unit alongside the Tap controller, and help standardize the control and compute layer across a multi-room Teams Rooms deployment.
Common Questions
Does this bundle include a camera or speaker?
No. It supplies only the Tap controller and the ThinkSmart Core Gen 2 compute device. A Microsoft Teams Rooms-certified video bar, such as a Logitech Rally Bar or Rally Bar Mini, must be added separately.
What processor powers this bundle?
An Intel Core Ultra 7 165H on the Intel vPro platform.
How is the room managed after deployment?
Through Lenovo ThinkSmart Manager for the compute device and Logitech Sync for the Tap controller.
What warranty applies to the compute device?
A 3-year limited onsite service warranty from Lenovo.
