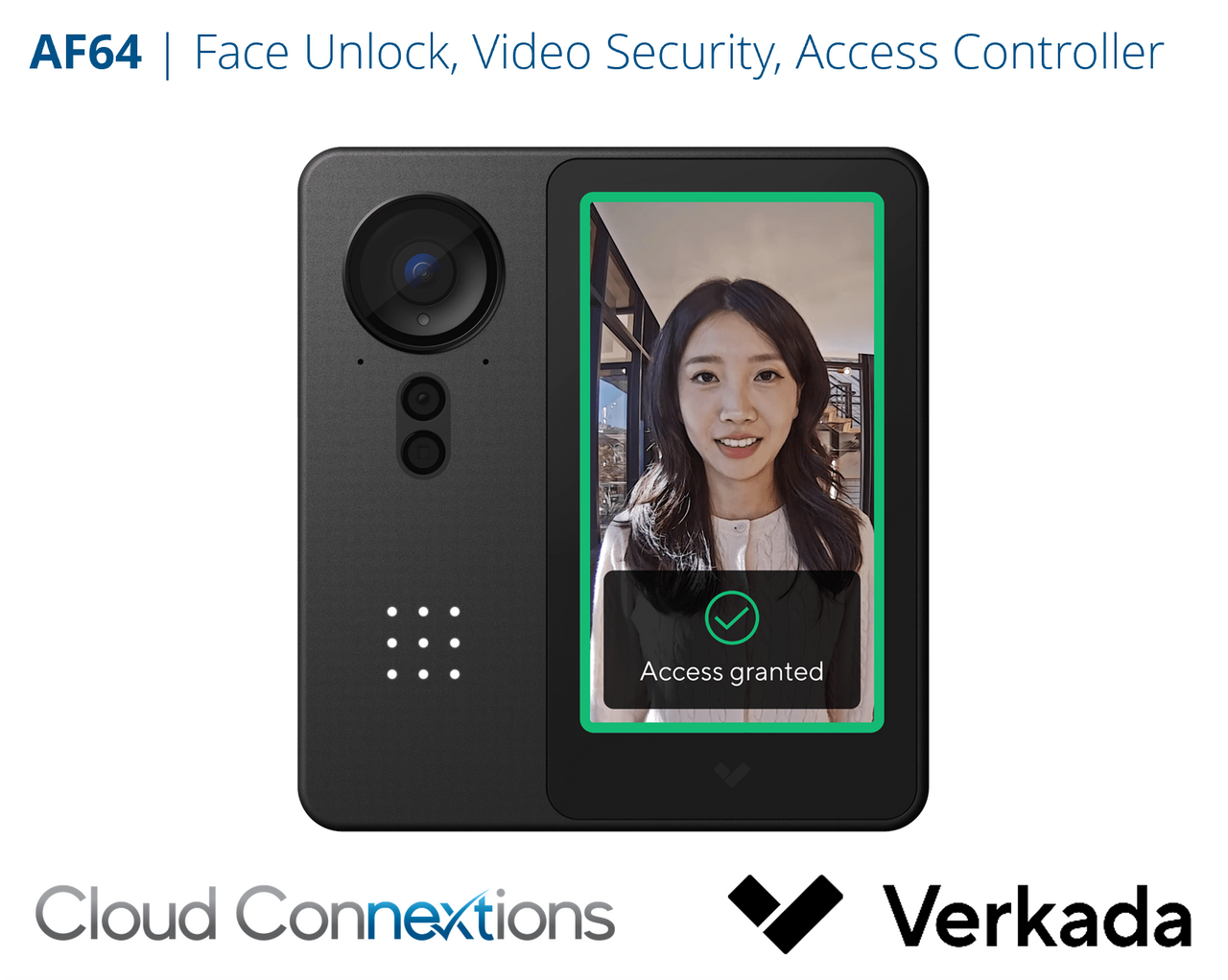

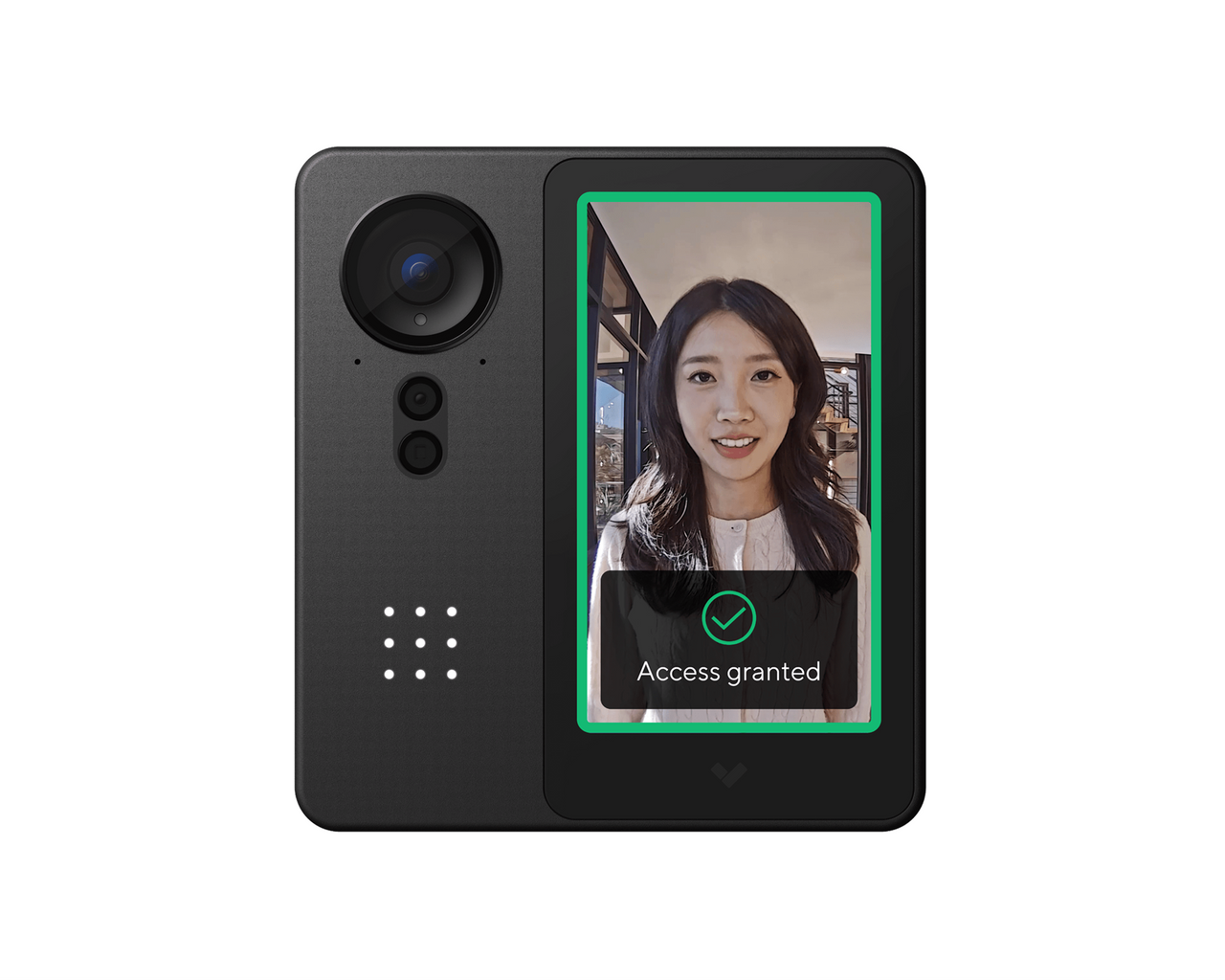

Verkada AF64 Access Station Pro

All-in-one cloud-managed access station with Face Unlock, multi-credential support, touchscreen PIN entry, built-in video security, and integrated access control.

The Verkada AF64 Access Station Pro is an all-in-one entryway access device designed to combine several access control functions into one clean, modern form factor. It brings together Face Unlock, a multi-technology credential reader, 5.5-inch touchscreen, 5MP wide-angle camera, and integrated access controller, helping organizations simplify entryway security while improving visibility at the door.

The AF64 is designed for modern commercial environments where security, user experience, and operational visibility all matter. Users can authenticate with Face Unlock, keycards, mobile credentials, Bluetooth, NFC, or PIN codes, while administrators manage access policies, monitor events, and review video context through Verkada Command. The built-in camera also provides a visual audit trail for access events, giving security teams more context than a traditional reader-only deployment.

Key Features

• All-in-One Access Station: Combines a reader, controller, touchscreen, security camera, and Face Unlock capability in a single PoE-powered device.
• Face Unlock with Liveness Detection: Uses facial recognition with 3D + IR liveness detection to help reduce spoofing attempts from photos, videos, or masks.
• Multi-Credential Support: Supports low-frequency cards, high-frequency credentials, mobile NFC, Bluetooth Low Energy, Apple Wallet, Verkada Pass, and PIN entry.
• 5.5-Inch Touchscreen: Provides a responsive color touchscreen for PIN entry, access feedback, and a modern user experience at the door.
• Built-In 5MP Camera: Captures wide-angle video context at the entry point and supports Verkada video analytics for investigations and alerts.
• Integrated Access Controller: Can run directly as an access controller or operate through RS-485 or LAN connection to a standalone Verkada access controller.
• PoE+ Powered: Uses IEEE 802.3at PoE+ for simplified cabling and power delivery.
• Durable Outdoor-Rated Design: IP65 and IK06 ratings support use across a range of indoor and outdoor entryway environments.
• Command Platform Integration: Access events, user credentials, video context, alerts, and audit activity are managed through Verkada Command.
• Flexible Mounting Options: Supports wall, single-gang, and mullion mounting, with separate up-angle, side-angle, and mullion accessories available.

A Modern Entry Experience

The AF64 is designed for organizations that want access control to feel less like an old badge reader and more like a modern, intelligent entry experience. Employees, staff, visitors, or authorized users can authenticate using the method that fits the environment: Face Unlock for fast contactless entry, mobile credentials for phone-based access, PIN codes for backup or multi-factor authentication, or traditional physical credentials where cards and fobs remain part of the workflow.

This flexibility makes the AF64 useful for offices, schools, healthcare facilities, secured workspaces, commercial buildings, multi-tenant properties, and other controlled entry points where identity, convenience, and security all need to work together.

Built-In Video Context at the Door

Traditional access readers can tell you that a credential was used. The AF64 can help show what happened at the door. Its built-in 5MP wide-angle camera captures visual context around access events, helping security teams review activity, investigate incidents, and understand what occurred before, during, and after an unlock attempt.

Because the AF64 is part of the Verkada platform, access activity can be connected with video, alerts, people analytics, audit logs, and incident workflows inside Command. That makes the AF64 more than a reader — it becomes part of a broader physical security visibility layer.

Flexible Deployment for Verkada Access Control

The AF64 can be deployed as a standalone single-door access controller or used with a separate Verkada access controller through RS-485 or LAN. This allows organizations to choose the wiring and control architecture that fits the door, the building, and the broader access control design.

For new deployments, the integrated controller can simplify hardware requirements at the door. For larger Verkada access control environments, the AF64 can also serve as a powerful reader and access station tied into the rest of the Verkada ecosystem.

Technical Specifications

• Product Type: Cloud-managed access station
• Model / SKU: AF64-HW
• Access Methods: Face Unlock, LF card, HF card, mobile NFC, Bluetooth Low Energy, Apple Wallet, Verkada Pass app, and PIN
• Controller Compatibility: Runs directly on AF64 or via RS-485 or LAN connection to a standalone Verkada access controller
• Power Input: IEEE 802.3at PoE+
• Power Consumption: 25.5W
• Connectivity: Ethernet 10/100/1000 Mbps RJ-45 for network and PoE connection
• Display: 5.5-inch IPS color LCD capacitive touchscreen
• Display Resolution: 1280 x 720 pixels
• Camera Resolution: 5MP / 2592 x 1944
• Image Sensor: 1/2.8-inch progressive CMOS
• Lens Type: Fixed
• Iris: Fixed
• Aperture: F2.1
• Focal Length: 2.12 mm
• Field of View: 130° horizontal, 100° vertical, 160° diagonal
• IR Range: 15 m / 50 ft in low light
• Face Unlock Range: 0.3 m to 1.5 m / approximately 1 ft to 5 ft
• Face Unlock Authentication Height: Approximately 1.0 m to 2.0 m / 39 in to 78 in
• Face Unlock Liveness Detection: 3D + IR
• Maximum Face Capacity: Up to 25,000 faces per install guide; Verkada product page currently lists up to 50,000 faces
• Low Frequency Credential Support: 125 kHz proximity cards
• High Frequency Credential Support: Verkada DESFire EV3 card or fob and MiFare DESFire card serial number
• Mobile Credential Support: Verkada Pass app via BLE, Apple Wallet, and mobile NFC
• PIN Support: 4 to 16 digit PIN codes for single- or multi-factor authentication
• Inputs: 1 x REX input and 1 x DPI input
• Outputs: 1 x dry relay, 30VDC @ 1A resistive load; 1 x RS-485 port; 1 x Wiegand port
• Dimensions: 153 mm H x 141 mm W x 34 mm D
• Weight: 804 g
• Operating Temperature: -40°C to 50°C
• Operating Humidity: 5–90% RH, non-condensing
• Ratings: IP65 and IK06
• Tamper Detection: Yes
• Mounting Options: Wall, single-gang, or mullion with separate accessory
• Recommended Mounting Height: 1.5 m / 60 in
• Separate Accessories: Up angle mount, side angle mount, and mullion mount
• Compliance: FCC, IC, IEC 62368-1, IEC 62471, VCCI, MIC, TELEC, UL62368, UL294

What’s in the Box

• Verkada AF64 Access Station Pro
• Surface mounting plate
• T10 Torx security screwdriver
• 4 x 1-inch wall screws
• 4 x 1-inch wall anchors
• 4 x 8-32 x 1-inch junction box screws
• 4 x 6-32 x 1-inch junction box screws
• Grommet attached to device
• Grommet punch
• I/O cable

Ideal for Modern Secure Entryways

For organizations looking to modernize access control without adding unnecessary hardware at every door, the Verkada AF64 Access Station Pro provides a polished, cloud-managed entry solution. It combines flexible credentials, Face Unlock, PIN support, video context, access control, and Verkada Command management into one device — making it a strong fit for offices, schools, healthcare facilities, commercial buildings, and other environments where secure access and visibility need to work together.
