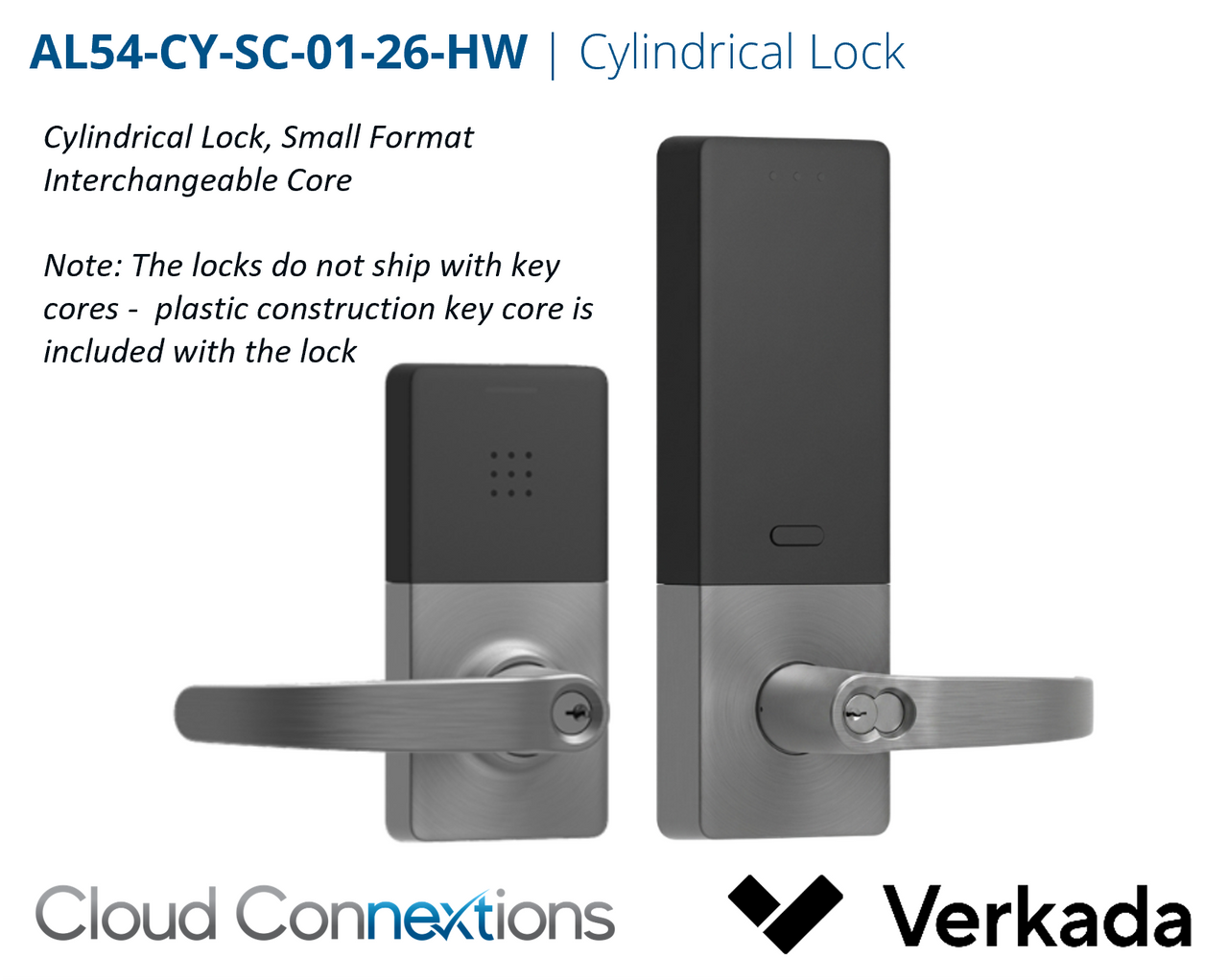

Verkada AL54-CY Cylindrical Lock, Small Format Interchangeable Core

Cloud-managed ANSI Grade 1 cylindrical wireless lock with Small Format Interchangeable Core support for extending Verkada access control to more doors.

The Verkada AL54-CY-SC-01-26-HW is a cloud-managed cylindrical wireless lock designed to bring modern access control to more doors without requiring the same wiring approach as a traditional hardwired opening. Built for commercial environments, the AL54-CY combines electronic access control, credential reading, wireless communication, door status visibility, and cloud-based management into a single connected lock assembly.

This model is the Small Format Interchangeable Core version of the AL54-CY cylindrical lock. It is designed for organizations that use SFIC keying systems and want to maintain that key-management approach while adding centralized Verkada access control, real-time door visibility, credential-based unlocks, alerting, and remote administration through Verkada Command. Verkada lists this SKU as the AL54 Cylindrical Lock, Small Format Interchangeable Core.

Key Features

• Cloud-Managed Access Control: Manage users, permissions, schedules, alerts, and door activity through Verkada Command.
• Small Format Interchangeable Core Configuration: This SKU is the SFIC version of the AL54-CY cylindrical wireless lock.
• Multi-Technology Credential Reader: Supports low-frequency proximity cards, high-frequency credentials, mobile NFC, and Bluetooth Low Energy credentials.
• Bluetooth Intent Unlock: Allows authorized users to unlock with a seamless mobile credential experience.
• Built-In Door Monitoring: Includes latch bolt monitoring and door position indicator support to help verify whether a door is closed, locked, and latched.
• Wireless VLink Communication: Connects wirelessly to Verkada’s WH32 wireless hub using Verkada’s VLink protocol.
• Long-Range Wireless Support: Supports up to 150 ft wireless range with obstructions and up to 2,000 ft with clear line of sight.
• Interior and Exterior LED Feedback: Provides clear visual confirmation for access granted, access denied, lockdown states, and connectivity status.
• Local Schedule Override: Allows immediate door schedule changes directly at the lock.
• Proactive Alerts: Supports alerts for low battery, offline devices, held-open doors, forced-open doors, and other access events.

Bring Access Control to More Doors

The AL54-CY is designed for organizations that want to expand access control beyond only the highest-priority perimeter doors. Offices, schools, healthcare facilities, warehouses, and multi-site businesses often have many interior doors that still rely on traditional keys. The AL54-CY helps bring those doors into a centralized access control environment while preserving compatibility with existing keying strategies, including Small Format Interchangeable Core systems.

By using wireless communication through the WH32 hub and Verkada’s cloud-managed Command platform, the AL54-CY gives teams a practical path to manage more doors, more users, and more access policies from one system.

Real-Time Visibility and Faster Response

The AL54-CY is not just an electronic lock. It is part of Verkada’s connected access control ecosystem. Administrators can manage door schedules, update permissions, respond to access events, and trigger changes such as lockdowns through Command. The AL54-CY requires a dedicated Verkada AC12 access controller and WH32 wireless hub, with each AC12 supporting up to 16 AL54 locks through one to four WH32 hubs.

That makes the AL54-CY especially valuable for organizations with distributed facilities, shared spaces, sensitive rooms, or changing access requirements. Instead of rekeying locks or manually distributing keys every time access needs change, teams can adjust access digitally and maintain visibility into lock activity.

Designed for Modern Credential Flexibility

The AL54-CY supports a wide range of credential types, including 125 kHz low-frequency credentials, 13.56 MHz high-frequency credentials, mobile NFC, and Bluetooth Low Energy. This gives organizations flexibility when transitioning from older card systems to mobile-first or NFC-based access experiences. Credential validation is listed at under one second, helping provide a fast user experience at the door.

Technical Specifications

• Product Type: Cloud-managed cylindrical wireless lock
• Model / SKU: AL54-CY-SC-01-26-HW
• Lock Type: Cylindrical
• Core Type: Small Format Interchangeable Core
• System Interface: Wireless communication via Verkada VLink protocol to Verkada WH32 wireless hub and AC12 access controller
• Required Hardware: Verkada AC12 access controller and WH32 wireless hub
• Controller Compatibility: Requires dedicated AC12 controller; not compatible with other controllers or wireless hubs
• Locks per Controller: Up to 16 AL54 locks per AC12 controller
• Wireless Hub Support: 1–4 WH32 wireless hubs per AC12 controller
• Wireless Frequency Range: 915.0–915.7 MHz
• Wireless Range: Up to 150 ft with obstructions; up to 2,000 ft with clear line of sight
• Credential Technologies: Low Frequency 125 kHz, High Frequency 13.56 MHz, Mobile NFC 13.56 MHz, Bluetooth Low Energy 2.4 GHz
• Read Range: LF up to 8 cm; HF up to 4 cm; Mobile NFC up to 4 cm; BLE up to 8 cm
• Credential Validation Time: Less than 1 second
• Audio / Visual Feedback: Interior and exterior LED feedback; buzzer feedback
• Power Supply: 8 x AA L91 lithium batteries
• Battery Life: Approximately 18 months depending on environment, polling time, usage, and door activity
• Backup Power: USB-C backup power using a 5V power bank
• Voltage Range: 5V to 7.2V
• Maximum Current Requirement: 1.8A peak, 5.5 mA average
• Operating Temperature: -35°C to 55°C / -31°F to 131°F
• Operating Humidity: 5–90% RH, non-condensing
• Exterior Assembly Dimensions with Handle: 177.3 x 170.8 x 91.9 mm
• Interior Assembly Dimensions with Handle: 266.0 x 171.4 x 92.4 mm
• Exterior Assembly Dimensions without Handle: 177.3 x 82.3 x 35.0 mm
• Interior Assembly Dimensions without Handle: 266.0 x 83.6 x 35.5 mm
• Weight: 3.2 kg
• Ratings: IP65, IK08, ANSI/BHMA A156.2 Grade 1
• Compliance: FCC, IC, UL10C, UL294, ULC60389-11-1, ANSI/BHMA A156.25
• Availability: USA and Canada
• Warranty: 10 years

What’s in the Box

• Interior assembly and mount plate
• Exterior assembly and mount plate
• Lock mechanism
• Fix plate
• Strike plates
• 2-3/8 in latch
• 2-3/4 in latch
• Lock connector cable
• Screw kit
• Lever removal tool
• T10 Torx security screwdriver
• L91 AA batteries
• Exterior lever
• Exterior rose liner
• Interior rose liner
• Interior lever
• Temporary key core
• Core stopper for Small Format Interchangeable Core model
• Door position indicator door and frame cable

Note: Verkada states that AL54-CY locks do not ship with the actual key core. A plastic construction key core is included, but the final key core itself is not included.

Ideal for Expanding Verkada Access Control

For organizations already using Verkada access control — or those planning to modernize interior door security — the Verkada AL54-CY-SC-01-26-HW provides a practical way to bring more doors into a centralized, cloud-managed access system. It combines wireless deployment flexibility, credential support, real-time status visibility, and Small Format Interchangeable Core compatibility in a durable cylindrical lock designed for modern commercial environments.
