Highlights
- High-performance AV over IP decoder for the Yealink AV ONE ecosystem, designed to pair with the EN300 encoder.
- Near-lossless 4K@60Hz 4:4:4 video with 16ms ultra-low latency over 1 Gbps Ethernet.
- Built-in 2x2 video matrix for simplified video link management and source switching.
- Integrated USB 3.0 capture card for content sharing and MTR streaming.
- Transmits connected UAC/UVC device signals via USB over IP to a paired encoder for local meetings.
- Comprehensive display control via RS-232, CEC, and IR.
- Compact form factor, installs within a media console.
- HDCP 2.3 compliant for secure, encrypted content transmission.
Ideal For
- Rooms already using, or planning to deploy, the Yealink EN300 encoder for networked AV distribution
- Command centers, classrooms, and conference rooms needing flexible video link switching
- MTR (Microsoft Teams Rooms) deployments wanting a secondary stream input via USB capture
- Scalable Pro AV installations building a network-based audio and video matrix across multiple rooms
Resources

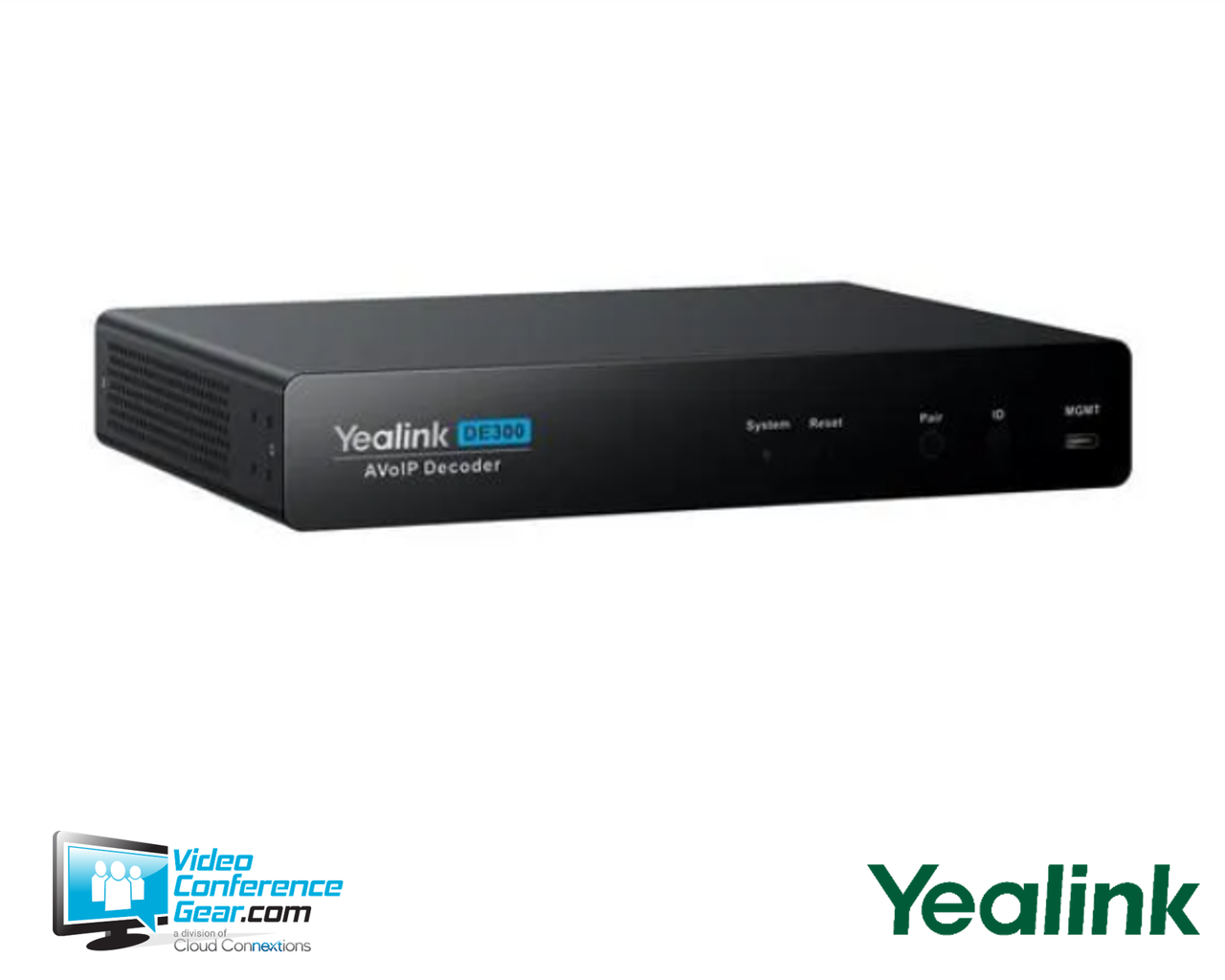

Yealink DE300 AVoIP Decoder, Designed to Pair with EN300 (1303135)
The DE300 is a high-performance AV over IP decoder, part of the Yealink AV ONE ecosystem, designed to pair with the separately available EN300 encoder. It receives near-lossless, low-latency IP video streams and converts them back into high-quality HDMI output, delivering 4K@60Hz video at 4:4:4 chroma sampling with just 16ms of latency over 1 Gbps Ethernet.
A built-in 2x2 video matrix simplifies video link management and source switching, while an integrated USB 3.0 capture card enables content sharing and lets the DE300 output audio and video as a secondary stream input for an MTR system. Connected UAC/UVC devices transmit their USB signal via USB over IP to a paired EN300 encoder, enabling local meetings, and comprehensive display control is available through RS-232, CEC, and IR. Its compact form factor installs within a media console for a streamlined setup. Before ordering, confirm the room already has, or will have, a matching EN300 encoder, since the DE300 is designed as a paired receiving unit.
Key Specifications
- Manufacturer model: DE300 (SKU 1303135)
- Product type: AV over IP decoder for the Yealink AV ONE ecosystem, pairs with EN300
- Video: up to 4K@60Hz, 4:4:4 chroma sampling, 16ms latency, HDCP 2.3 compliant
- Network: 1 Gbps Ethernet
- Video matrix: built-in 2x2
- Capture: integrated USB 3.0 capture card, supports content sharing and MTR secondary stream input
- USB over IP: transmits UAC/UVC device signals to a paired EN300 encoder
- Display control: RS-232, CEC, IR
- Form factor: compact, media-console installable
What's Included
- DE300 AVoIP decoder
- Power adapter
- Mounting hardware
Certifications and Compatibility
- Yealink EN300 encoder: designed pairing for a complete networked AV distribution system.
- Yealink AV ONE ecosystem: designed to work alongside the AVBridge and other AV ONE components.
- HDCP 2.3: compliant for secure, encrypted content transmission.
- Scalability: multiple encoders and decoders can be combined into a network-based AV matrix.
- Compatibility is limited to Yealink-published AV ONE ecosystem components. Confirm current compatibility against Yealink's documentation for your specific deployment.
Design Considerations
- Confirm the room has, or will have, a matching EN300 encoder, since the DE300 is a paired receiving unit.
- Plan the 2x2 video matrix configuration for the room's source-switching needs.
- Confirm whether the USB 3.0 capture card's content-sharing or MTR secondary-stream capability is needed for the deployment.
- Plan display control integration (RS-232, CEC, or IR) for the room's specific display.
- For multi-room standardization, specify a consistent EN300/DE300 encoder-decoder architecture across every AV ONE deployment.
VideoConferenceGear.com Assistance
We can confirm the DE300 is correctly paired with your EN300 encoder, and help plan the 2x2 video matrix and display control setup for your room. We can advise on USB capture card usage for content sharing or MTR streaming. For multi-room and multi-site programs we can help standardize the encoder/decoder architecture across every AV ONE deployment.
Common Questions
Does the DE300 work on its own?
No. It's designed to pair with the separately available EN300 encoder as a receiving unit.
What does the USB 3.0 capture card do?
It enables content sharing and lets the DE300 output audio and video as a secondary stream input for an MTR system.
How does display control work?
Through RS-232, CEC, and IR.
What video quality does it support?
Up to 4K@60Hz with 4:4:4 chroma sampling and 16ms latency, matching the EN300 encoder.
Can multiple encoders and decoders be combined?
Yes. Multiple EN300/DE300 units can build a scalable, network-based audio and video matrix.
