Highlights
- Intel Core Ultra 5 125H processing and a built-in 34 TOPS NPU support demanding Windows-based room workloads.
- 16GB of DDR5 memory and a 256GB SSD provide a balanced compute and storage configuration for room deployment.
- 4K HDMI-IN casting supports high-resolution content sharing from an attached source.
- Built-in EDID and CEC support help coordinate the connected display, including the ability for CEC to wake the display.
- Wi-Fi 6, Bluetooth 5.2, and dual RJ-45 connectivity provide flexible wired and wireless installation options.
- TPM 2.0 and UEFI Secure Boot provide built-in platform security features for managed Windows deployments.
Ideal For
- Yealink MeetingBoard and MeetingBoard Pro rooms requiring Windows-based computing
- Corporate meeting rooms and collaboration spaces
- Interactive presentation and content-sharing rooms
- Training rooms and multipurpose business spaces
Resources

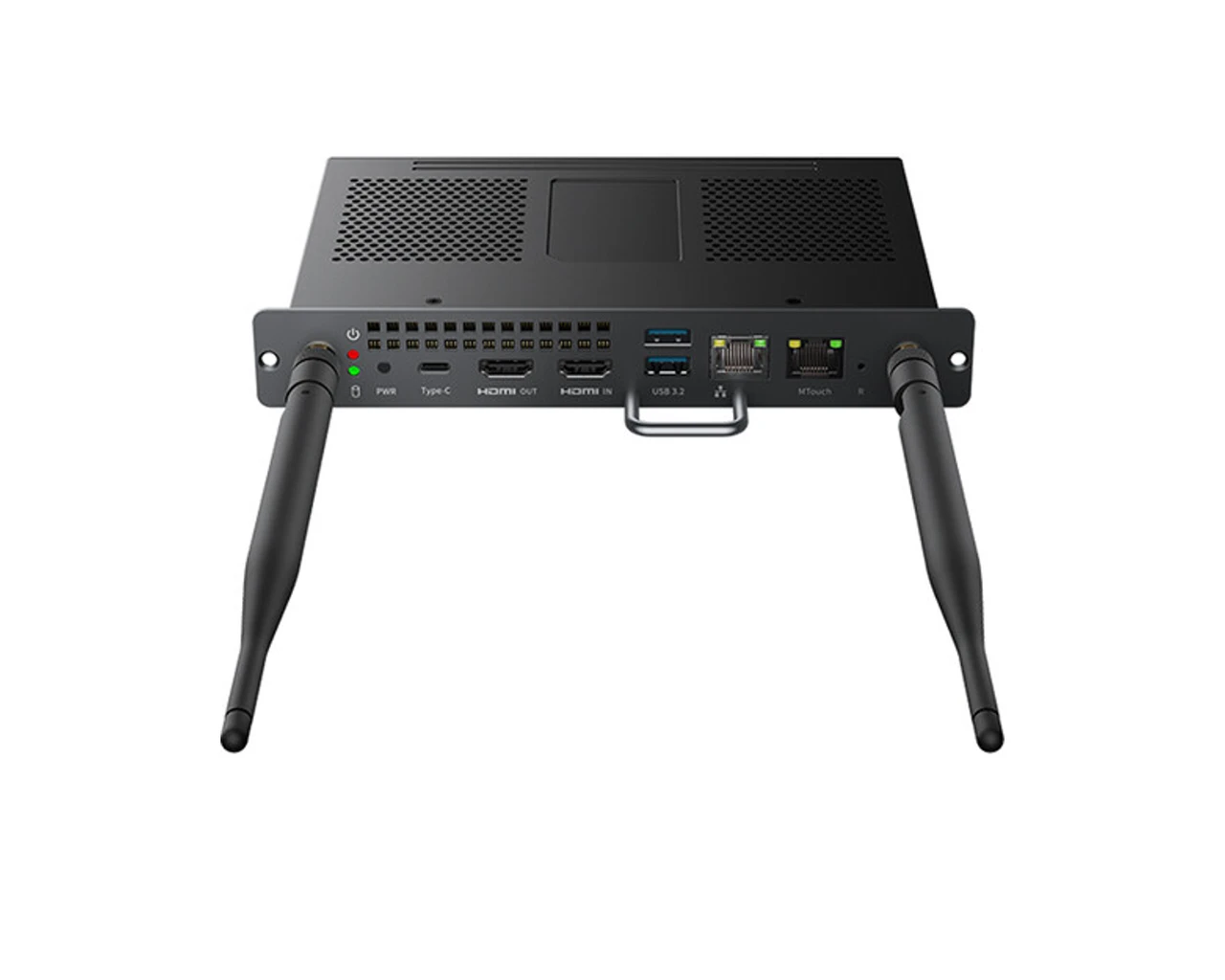

Yealink MCore-OPS-G2 Windows 11 IoT Enterprise OPS Compute Module for MeetingBoard Series (1303292)
The Yealink MCore-OPS-G2 is a standalone Windows compute module that installs in a compatible Yealink MeetingBoard or MeetingBoard Pro display.
It gives organizations a dedicated Windows 11 IoT Enterprise x64 computing platform for room applications, content sharing, and display-based collaboration without adding a separate desktop computer to the room.
Key Specifications
- Processor: Intel Core Ultra 5 125H
- Built-in NPU: 34 TOPS
- Memory: 16GB, configured as 2 x 8GB DDR5
- Storage: 256GB SSD
- Operating system: Windows 11 IoT Enterprise x64; license included
- Video input: 1 x HDMI input with support for 4K HDMI-IN casting
- Video output: 1 x HDMI output
- USB: 2 x USB 3.0 Type-A; 1 x USB 3.0 Type-C without DisplayPort
- Network: 1 x MTouch RJ-45 port and 1 x LAN RJ-45 port
- Wireless: Wi-Fi 6, IEEE 802.11a/b/g/n/ac/ax; Bluetooth 5.2 via Intel AX201
- Display control: Built-in EDID and CEC; CEC can wake a connected display
- Security: TPM 2.0, UEFI Secure Boot, and Kernel DMA support
- Power input: 12-19V DC at 4.7-7.5A
- Operating temperature: -10 to 50°C
- Operating humidity: 10% to 90%
- Storage temperature: -20 to 60°C
- Product dimensions: 180 x 119 x 30mm
- Product weight: 0.7kg
What's Included
- MCore-OPS-G2 compute module
- Two antennas
- Two screws and a screwdriver
- Quick Start Guide
Compatibility
- Meeting and collaboration platforms: The module provides Windows 11 IoT Enterprise x64 computing; a Microsoft Teams Rooms application is not documented as included with the G2 configuration.
- Yealink displays: Listed for the Yealink MeetingBoard Series and MeetingBoard Pro Series, including supported examples such as MeetingBoard 65, 75, and 86. Confirm the exact display model and generation before ordering.
- AV and display connectivity: Connects through one HDMI input and one HDMI output, with support for 4K HDMI-IN casting and built-in EDID and CEC display control.
- Required supporting hardware: A compatible Yealink MeetingBoard or MeetingBoard Pro display is required for installation. A display, camera, microphones, speakers, or touch controller is not included with this standalone module.
- Platform licensing: Microsoft Teams, Zoom, or another meeting-platform subscription is separate unless a specific software configuration states otherwise.
Licensing, Warranty & Support
The Windows 11 IoT Enterprise x64 license is included, and no recurring subscription is required for the hardware or Windows IoT license. Any meeting-platform subscription used with the room is separate. This is the G2 compute-module configuration, not the documented G2T configuration with the Microsoft Teams Rooms application and Yealink RoomConnect. Yealink video collaboration hardware generally carries a 24-month warranty when purchased new through an authorized distributor or reseller. Warranty coverage can vary by region and purchase channel, so we can help confirm the applicable coverage for your order. Support is available through Yealink's support ticket system and local channel-partner warranty or technical support.
VideoConferenceGear.com Assistance
We can help validate that the MCore-OPS-G2 is the right compute module for your MeetingBoard or MeetingBoard Pro model, confirm the required display and room peripherals, and separate the Windows license from any meeting-platform licensing. We can also help plan accessories, coordinate installation across locations, and provide ongoing support for the completed room system.
Common Questions

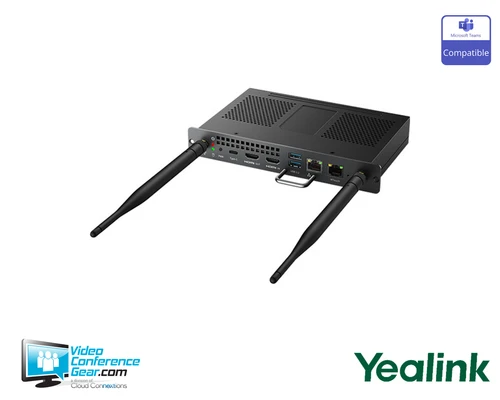

What is the difference between the MCore-OPS-G2 and MCore-OPS-G2T?
The MCore-OPS-G2 includes Windows 11 IoT Enterprise x64, while the MCore-OPS-G2T is the documented variant that adds the Microsoft Teams Rooms application and Yealink RoomConnect. Choose the G2T only when that preloaded Teams Rooms configuration is required.
Which Yealink displays can accept this module?
The module is listed for the Yealink MeetingBoard and MeetingBoard Pro Series, with supported examples including MeetingBoard 65, 75, and 86. The exact display model and generation should be checked against the applicable compatibility list before ordering.
Does the package include a display, camera, microphones, speakers, or touch controller?
No. The package includes only the compute module, antennas, screws, screwdriver, and Quick Start Guide. The compatible MeetingBoard or MeetingBoard Pro display and any room peripherals must be provided separately.
Does this product require a recurring subscription?
No recurring subscription is required for the hardware or included Windows 11 IoT Enterprise license. A Microsoft Teams, Zoom, or other meeting-platform subscription is separate if your room application requires one.
What warranty is available?
Yealink video collaboration hardware generally includes a 24-month warranty for new purchases through an authorized distributor or reseller. Coverage depends on the purchase channel and region, and we can help confirm the terms for your order.
