Highlights
- Next-generation ceiling array microphone for premium meeting spaces
- 24-inch square form factor for standard ceiling grid installations
- Automatic Coverage™ technology requires no manual lobe configuration
- Built-in IntelliMix® DSP for echo cancellation and noise reduction
- Advanced directional voice capture with Shure Steerable Coverage™ Technology
- Native integration with leading conferencing and DSP platforms
- Ideal for conference rooms, boardrooms, training rooms, and divisible spaces
Resources
- Shure MXA925 Spec Sheet
- Optional: Round/Square and Black/White

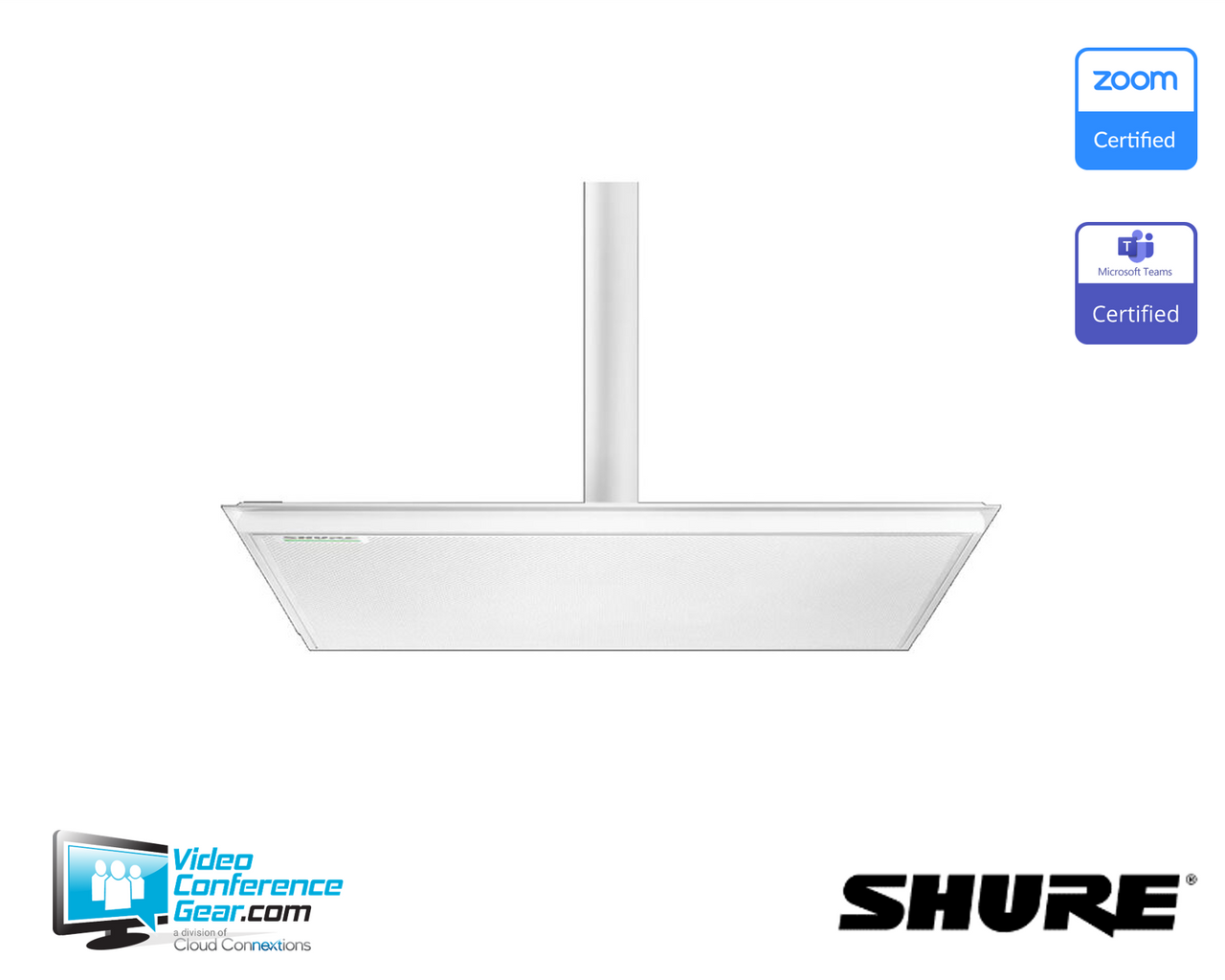

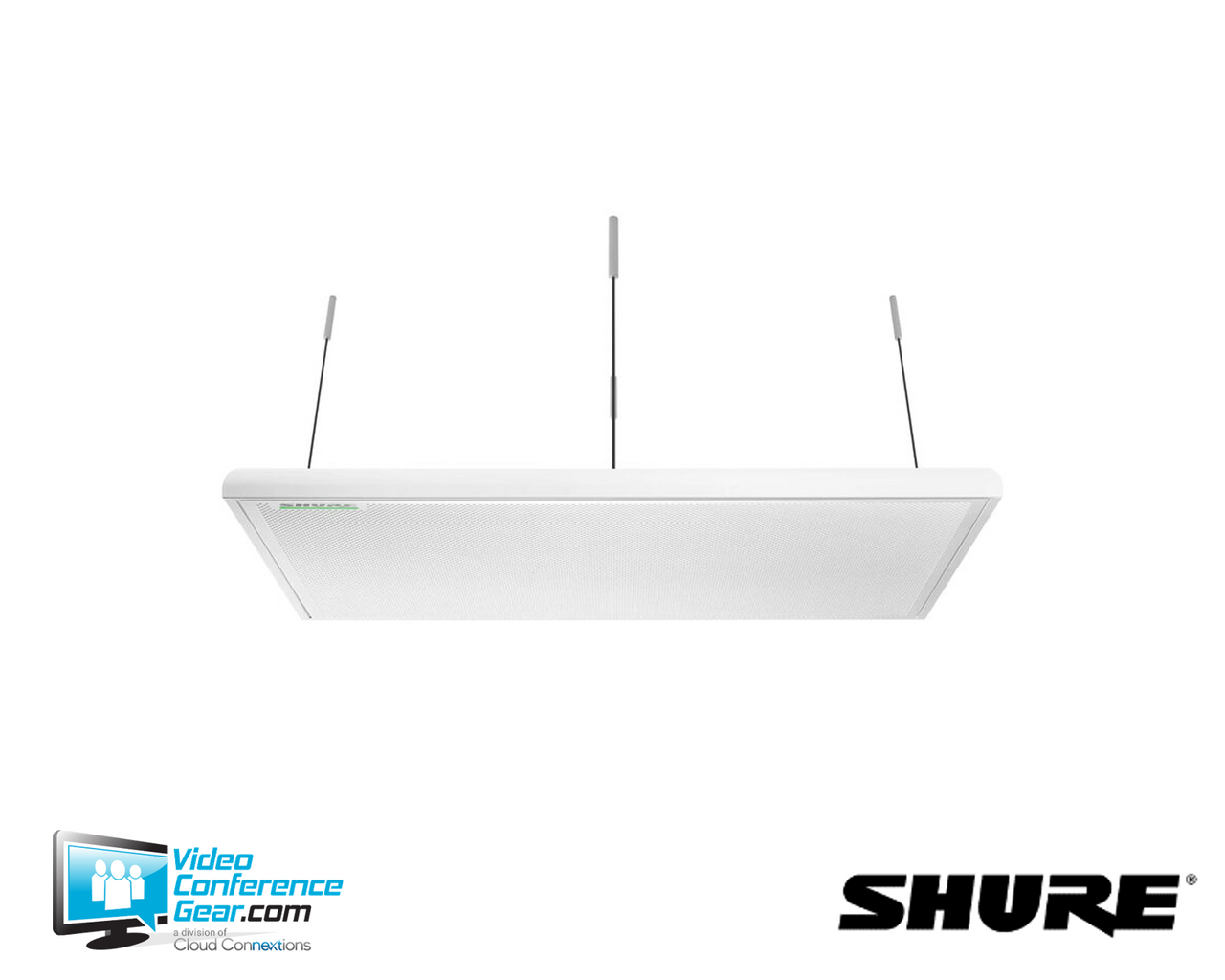

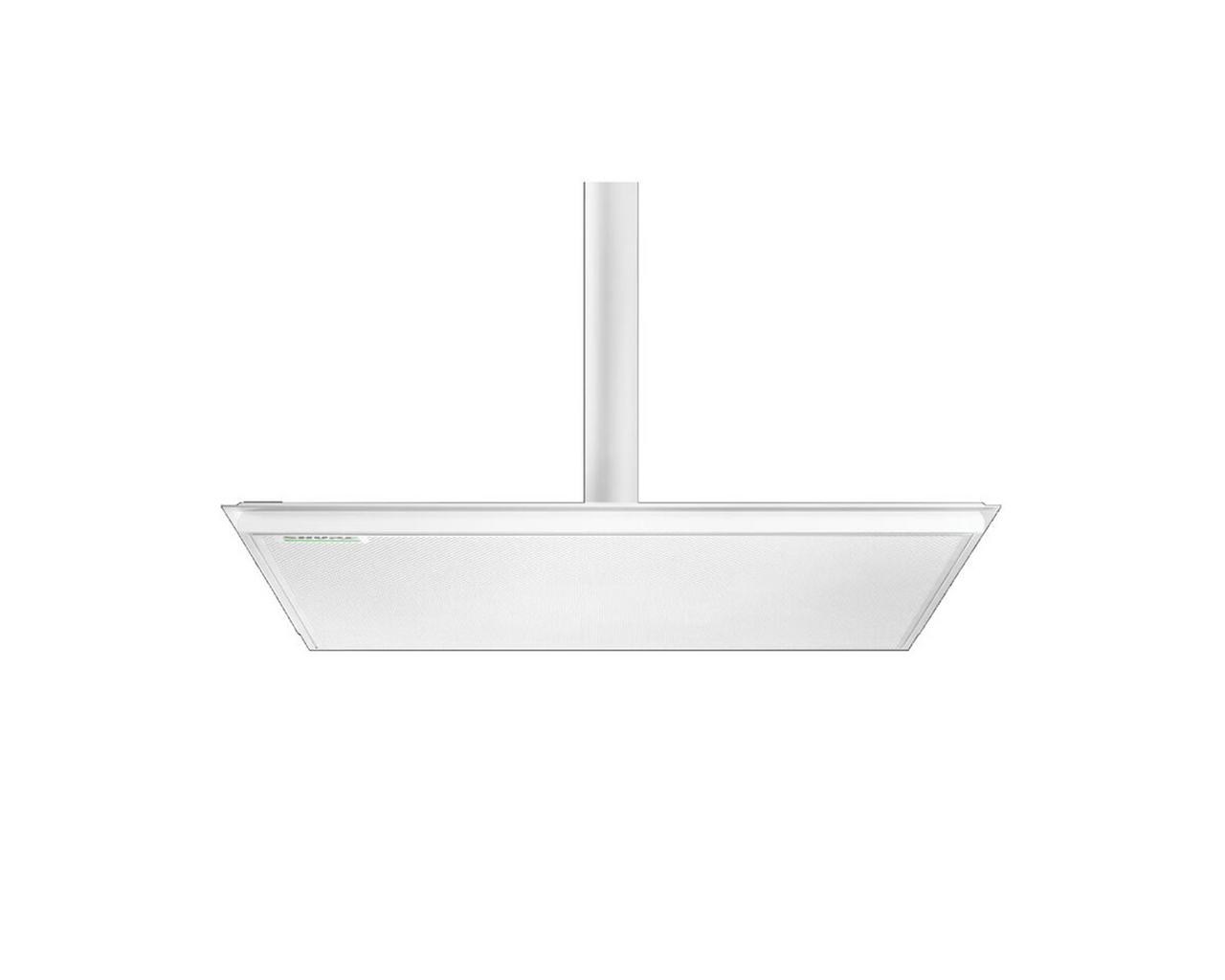

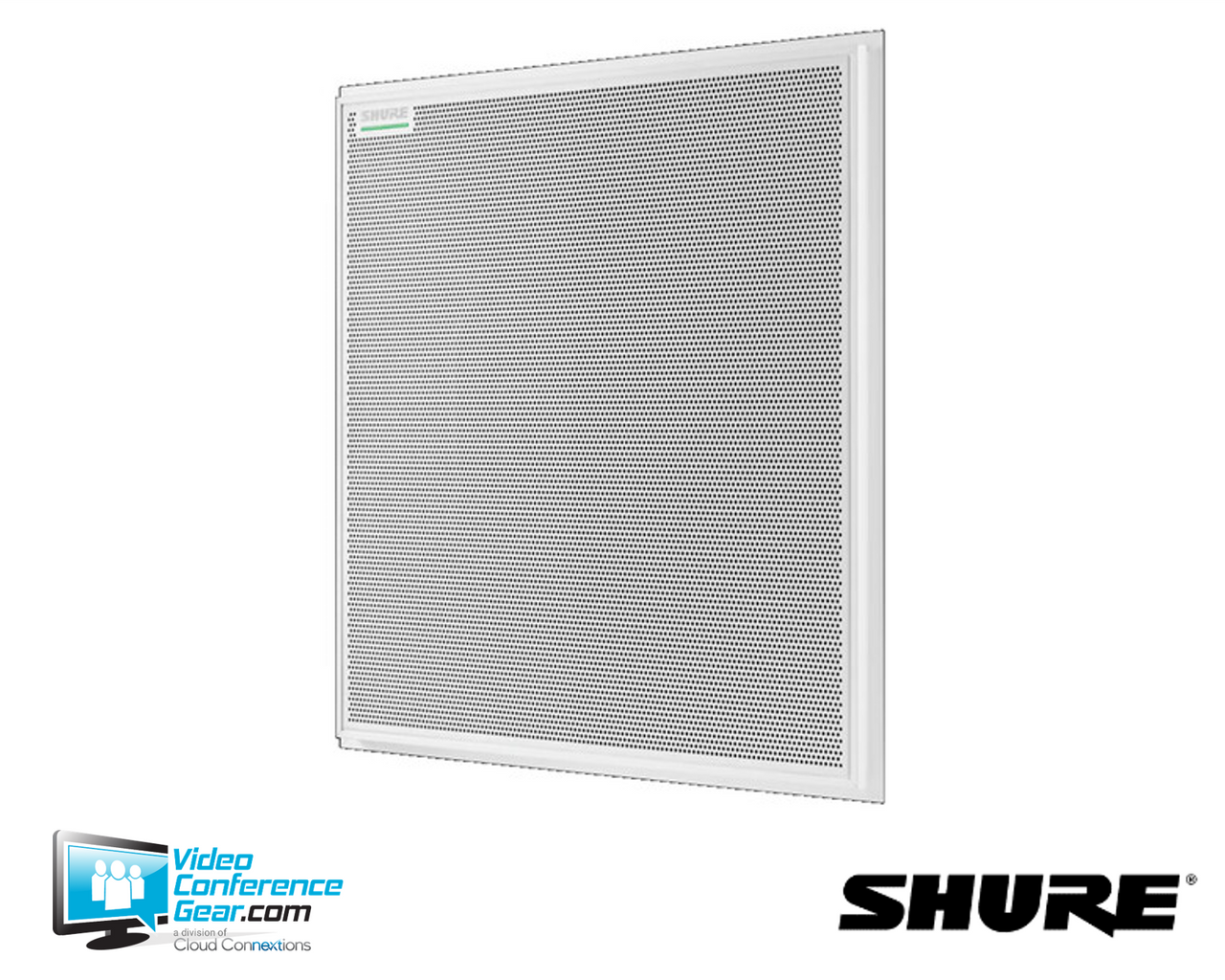

Shure MXA925 Ceiling Array Microphone (Square, White, 24") – MXA925W-S
Intelligent Ceiling Audio for Modern Collaboration Spaces
The Shure MXA925 Ceiling Array Microphone represents the next generation of ceiling-mounted conferencing audio. Designed for premium meeting environments, the MXA925 combines advanced beamforming technology, intelligent DSP processing, and simplified deployment to deliver exceptional voice capture throughout the room.
Unlike traditional ceiling microphones that require extensive tuning and manual coverage configuration, the MXA925 utilizes Automatic Coverage™ technology to automatically detect participants and optimize microphone coverage. This significantly reduces installation complexity while ensuring consistent audio performance across a wide variety of room layouts.
Built around Shure's industry-leading Steerable Coverage™ Technology, the MXA925 precisely captures voices while minimizing unwanted room noise and reverberation. Integrated IntelliMix DSP provides advanced acoustic echo cancellation, noise reduction, automatic gain control, and speech enhancement directly within the microphone, reducing the need for external processing hardware.
The 24-inch square design fits standard ceiling grid installations and provides a clean, professional appearance that keeps technology out of sight while maintaining exceptional audio quality.
Key Features
Automatic Coverage™ Technology
Automatically configures microphone coverage based on participant location, reducing setup time and simplifying deployments.
Steerable Coverage™ Technology
Precisely captures voices while minimizing background noise and room reflections.
Integrated IntelliMix® DSP
Built-in DSP includes acoustic echo cancellation, noise reduction, automatic gain control, and speech enhancement.
Ceiling-Mounted Design
Keeps tables free from microphones while delivering consistent room-wide audio coverage.
Simplified Deployment
Reduces installation complexity compared to traditional beamforming microphone systems.
Premium Voice Clarity
Designed specifically to optimize speech intelligibility for conferencing and collaboration environments.
Enterprise Integration
Compatible with leading conferencing, DSP, and AV control platforms.
Certifications & Compatibility
Certified & Compatible Platforms
- Microsoft Teams Rooms
- Zoom Rooms
- Google Meet
- Cisco Webex
- SIP Conferencing Platforms
Compatible Ecosystems
- Shure IntelliMix Room
- Shure IntelliMix P300
- Q-SYS
- Biamp
- Crestron
- Extron
- Logitech Room Solutions
- Poly Room Solutions
Recommended Room Types
- Boardrooms
- Conference Rooms
- Training Rooms
- Classrooms
- Multipurpose Spaces
- Divisible Meeting Rooms
Specifications (Summary)
Product Type: Ceiling Array Microphone
Form Factor:
- Square Ceiling Array
- 24-inch Ceiling Tile Format
Audio Technology
- Automatic Coverage™ Technology
- Steerable Coverage™ Technology
- Beamforming Microphone Array
- Integrated IntelliMix DSP
DSP Features
- Acoustic Echo Cancellation (AEC)
- Noise Reduction
- Automatic Gain Control (AGC)
- Speech Enhancement

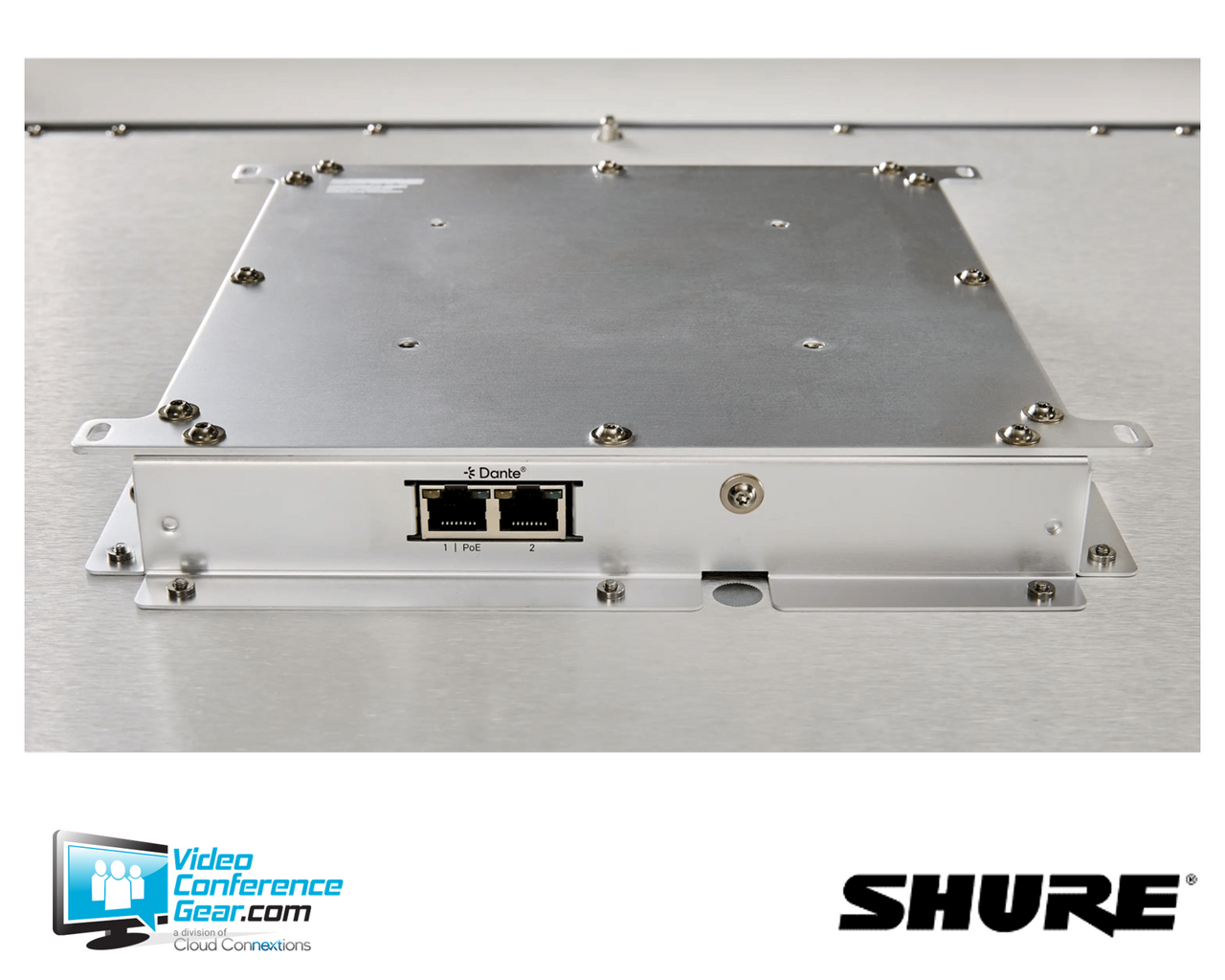

Networking
- Dante Audio over IP
- PoE+ Powered
- Network Management Support
Management
- Shure Designer Software
- Remote Monitoring
- Remote Configuration
- Firmware Management
Color
- White
In the Box
- Shure MXA925W-S Ceiling Array Microphone
- Ceiling Tile Mounting Hardware
- Safety Cable
- Installation Documentation
Physical Specifications
- Width: 23.7 in (603 mm)
- Length: 23.7 in (603 mm)
- Depth: 1.6 in (41 mm)
- Weight: 12.3 lbs (5.6 kg)
Shipping Information
- Shipping Dimensions: 29.1 × 29.1 × 5.3 in (739 × 739 × 135 mm)
- Shipping Weight: 17.6 lbs (8.0 kg)
Product Identifiers
- Manufacturer: Shure
- Product Name: MXA925 Ceiling Array Microphone
- Manufacturer Part Number (MPN): MXA925W-S
- Color: White
- Form Factor: Square 24-inch
Resources
- Product Datasheet (PDF)
- Installation Guide
- User Guide
- Shure Designer Configuration Guide
- IntelliMix DSP Documentation
Premium Ceiling Audio Without Compromise
The Shure MXA925 delivers exceptional speech capture, intelligent room coverage, and simplified deployment, making it an ideal microphone solution for modern conferencing and collaboration environments.
Warranty Information
Standard Manufacturer WarrantyProduct Videos
