Verkada | GW31-E Outdoor Wi-Fi Gateway

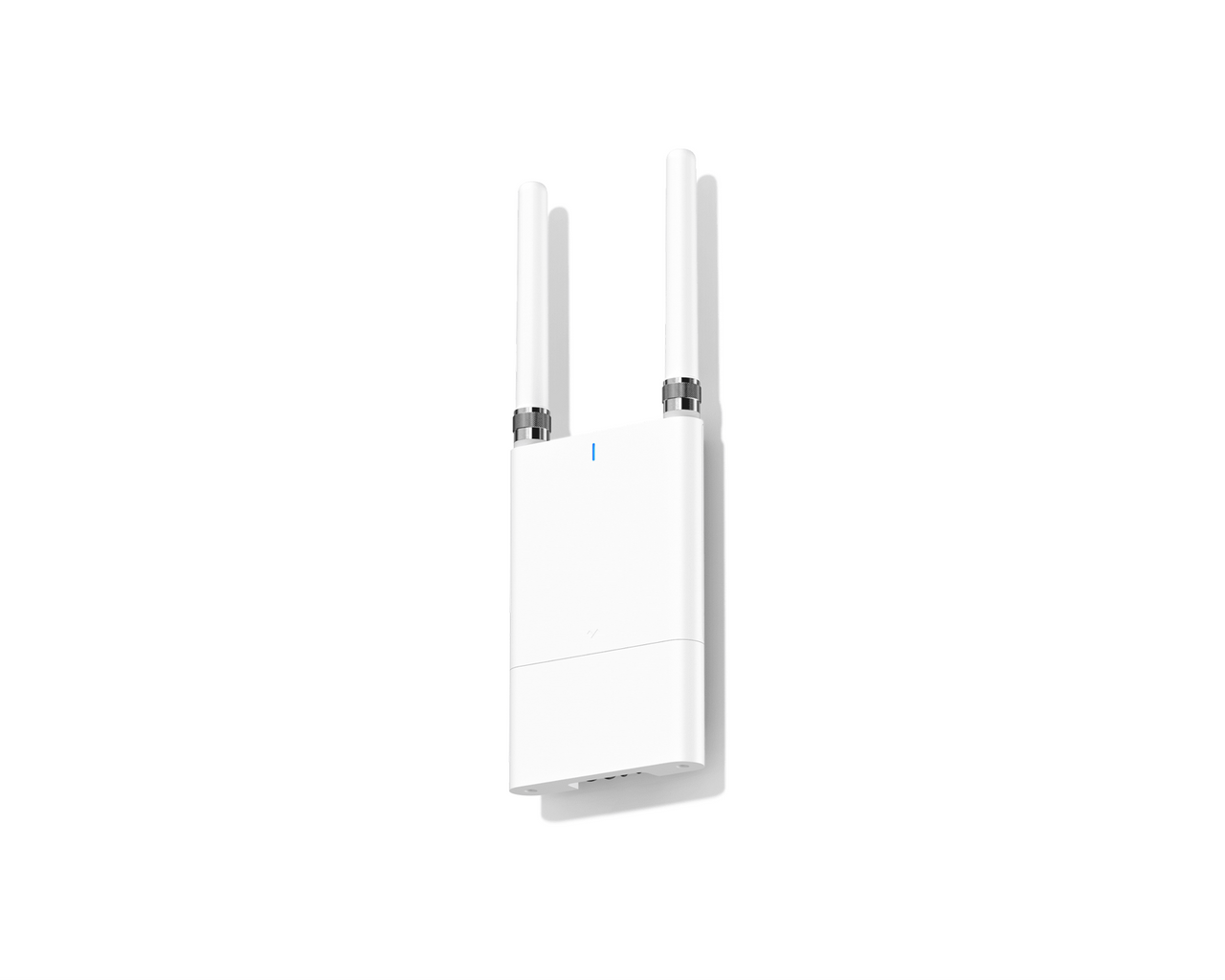

Verkada GW31-E Outdoor Wi-Fi Gateway

Cloud-managed outdoor Wi-Fi gateway for extending Verkada deployments to locations with power and Wi-Fi, but limited Ethernet access.

The Verkada GW31-E Outdoor Wi-Fi Gateway makes it easier to deploy Verkada devices in locations where running network cable is difficult, expensive, or impractical. Designed for outdoor perimeter environments such as parking lots, gates, fence lines, school campuses, outdoor yards, and remote building areas, the GW31-E connects to an available Wi-Fi access point and delivers both network connectivity and PoE power to downstream Verkada devices.

Purpose-built for Verkada deployments, the GW31-E helps organizations expand security coverage without trenching cable or relying on recurring cellular data plans. The gateway is managed through the Verkada Command platform, giving teams centralized visibility into connectivity, device status, diagnostics, alerts, traffic history, power usage, and remote troubleshooting.

Key Features

• Outdoor Wi-Fi Connectivity: Supports 802.11a/b/g/n/ac/ax Wi-Fi 6 operation on 2.4 GHz or 5 GHz bands for flexible wireless backhaul.
• Built-In PoE++ Outputs: Includes two PoE++ capable output ports with a combined 60W power budget to support up to two connected devices.
• Flexible Power Options: Supports multiple power inputs, including 54V DC barrel jack, 802.3bt Type 4 PoE++ 90W, and 12–36V DC terminal block.
• Cloud-Managed in Verkada Command: Monitor gateway status, view connected device information, run diagnostics, receive connectivity alerts, and remotely troubleshoot through Command.
• Designed for Outdoor Use: IP66-rated enclosure supports deployment in challenging outdoor environments.
• Extended Wireless Reach: Supports outdoor Wi-Fi connectivity using included external omni antennas, with optional Verkada directional antenna support for longer-distance deployments.
• Perimeter Deployment Friendly: Ideal for locations where Ethernet trenching is costly or unavailable but local power and Wi-Fi coverage are accessible.
• Perpetual PoE Support: Helps keep connected devices powered even when the gateway reboots.

Built for Outdoor Verkada Deployments

The GW31-E is designed for the common real-world challenge of getting security devices where they need to be — not just where Ethernet is easy to reach. Parking areas, outdoor gates, building perimeters, athletic fields, temporary structures, and remote facility edges often need camera or device coverage, but may not justify trenching new cable. The GW31-E provides a practical bridge by using Wi-Fi for network connectivity while still supplying PoE power to connected Verkada hardware.

Cloud-Managed Visibility and Troubleshooting

Because the GW31-E is managed through Verkada Command, IT and security teams can monitor gateway performance without physically visiting the install location. Teams can view live and historical traffic, monitor power usage, receive alerts if connectivity is lost, and remotely power cycle the gateway or connected devices. This makes the GW31-E especially useful for distributed campuses and multi-site organizations where truck rolls are expensive and slow.

Flexible Power for Challenging Locations

Outdoor deployments rarely come with perfect infrastructure. The GW31-E supports multiple power approaches, including PoE++ input, DC barrel jack, and terminal block power. It can also be paired with Verkada accessories such as outdoor PoE injectors, AC/DC power adapters, light pole power taps, and directional antennas depending on the installation scenario.

Technical Specifications

• Wi-Fi Standards: 802.11a/b/g/n/ac/ax Wi-Fi 6
• Wi-Fi Bands: 2.4 GHz or 5 GHz, single radio
• Wi-Fi Security: WPA2/3 PSK and WPA2/3 Enterprise
• Wi-Fi Operating Mode: Client/STA
• MIMO: 2 x 2 DL MU-MIMO
• Wi-Fi Antennas: 2 external omni antennas, N-type male
• Networking Interface: 3 GigE RJ45 ports; 2 LAN and 1 WAN/LAN configurable
• Management Interfaces: Verkada Command, Bluetooth via Command iOS app, and local server page via Ethernet
• Power Input Options: 54V DC barrel jack, 802.3bt Type 4 PoE++ 90W, or 12–36V DC terminal block
• Power Output: 2 x 802.3bt PoE++ capable ports
• Total PoE Power Budget: 60W
• Power Consumption: 9W above -25°C / -13°F; 19W below -25°C / -13°F, not including connected devices
• Weather Rating: IP66
• Dimensions — Main Unit: 243mm L x 148mm W x 33mm H / 9.6in L x 5.9in W x 1.3in H
• Dimensions — Antennas: 25mm diameter x 179mm L / 1.0in diameter x 7.1in L
• Weight: 1.4kg / 3.0lbs
• Operating Temperature: -40°C to 50°C / -40°F to 122°F
• Operating Humidity: 5–90% RH, non-condensing
• LEDs: 1 status LED and 4 signal strength LEDs
• Mounting Options: Wall mount, pole mount, or mount on Verkada ACC-POE-90W-E outdoor PoE++ injector
• Warranty: 10 years

What’s in the Box

• Verkada GW31-E Outdoor Wi-Fi Gateway
• Mount plate
• 2 N-type antennas
• T10 security Torx screwdriver
• 2 pole straps
• 4 wall anchors
• 4 wall screws
• 4 cable grommets, 7–9 mm
• 1 cable grommet, 3–5 mm
• 1 3-wire cable grommet for DC power

Ideal for Multi-Site Organizations

For organizations already using Verkada — or those looking to modernize outdoor security and facility visibility — the GW31-E Outdoor Wi-Fi Gateway provides a flexible, scalable way to extend device coverage beyond the building. It helps reduce deployment friction, avoid unnecessary trenching, and keep management centralized inside the Verkada ecosystem.
