Verkada | TS12-N-RB Square Audio Intercom with Red Button

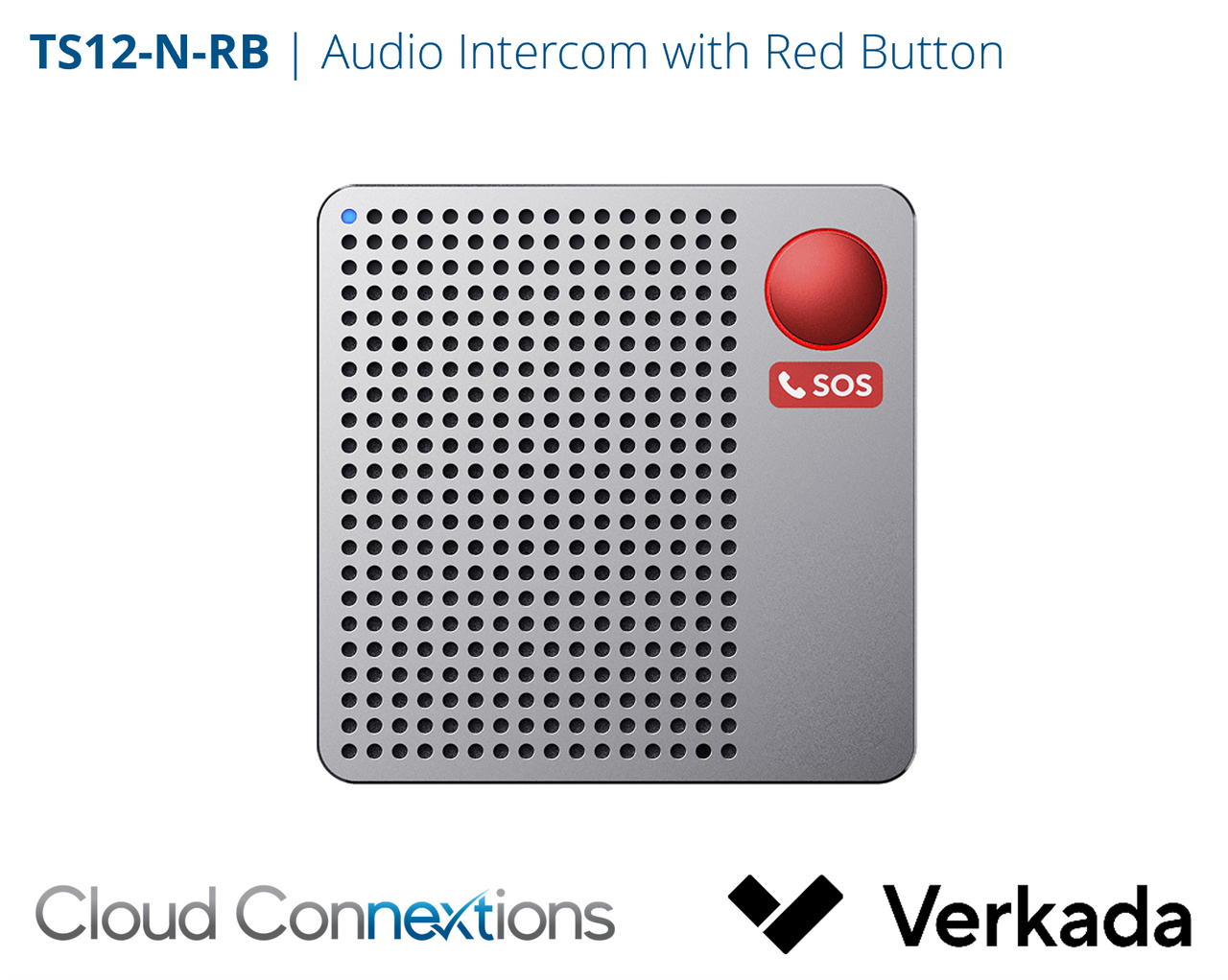

Verkada TS12-N-RB Square Audio Intercom, Red Button

Cloud-managed audio-only intercom with a raised red emergency button for durable, high-visibility two-way communication in rugged or camera-restricted environments.

The Verkada TS12-N-RB Square Audio Intercom is a rugged, cloud-managed audio intercom designed for emergency assistance points, high-noise environments, and locations where video is not required or not appropriate. Unlike the standard TS12-N black-button model, the TS12-N-RB includes a raised red button designed to be easy to identify and press during an emergency.

Built with a durable stainless steel body, high-output speaker, four-microphone pickup, and IP69 / IK10 ratings, the TS12-N-RB is made for demanding indoor and outdoor installations. It provides clear two-way audio through Verkada Command, allowing teams to route emergency calls, answer remotely, manage intercom workflows, and monitor devices across multiple sites from a single cloud-based platform. Verkada lists the TS12-N-RB as the red-button version of the TS12 Square Audio Intercom family.

Key Features

• Raised Red Emergency Button: The TS12-N-RB includes a raised red button designed for emergency calling and fast identification.
• Audio-Only Intercom Design: Provides two-way communication without video, making it useful for privacy-sensitive or camera-restricted areas.
• High-Output Audio: Delivers 95 dB SPL at 1 meter, helping conversations remain clear in loud environments.
• Four-Microphone Pickup: Uses four omnidirectional digital MEMS microphones with broad sound coverage and adaptive beamforming.
• Full-Duplex Audio: Supports two-way, full-duplex audio with echo cancellation and noise suppression.
• External Speaker Support: Can connect to an external speaker through line-out or amp-out to support higher-volume deployments.
• Rugged Outdoor-Rated Build: Stainless steel construction with IP69 and IK10 ratings helps support harsh environments and vandal-resistant installations.
• PoE+ Powered: Uses IEEE 802.3at PoE+ for simplified power and network connectivity.
• Integrated I/O: Includes dry inputs, relay output, RS-485, audio line-out, and audio amp-out for deployment flexibility.
• Emergency Phone Support: Can support Verkada emergency phone configurations, including emergency-mode workflows for supported deployments.

Built for Emergency Assistance Points

The TS12-N-RB is designed for locations where someone needs to quickly request help without navigating a screen, keypad, or multi-option interface. The raised red button makes the emergency function visually obvious and physically easy to press, making it a strong fit for parking areas, campus walkways, building entrances, garages, service areas, industrial sites, and other locations where emergency communication needs to be simple and dependable.

Because the TS12-N-RB is audio-only, it can also be used in locations where video may create privacy concerns or where a camera is unnecessary. This makes it useful for schools, healthcare facilities, government buildings, workplace safety points, and other controlled environments where communication matters more than video capture.

Designed for Loud and Rugged Environments

The TS12-N-RB is engineered for environments where standard intercom audio may struggle. With 95 dB speaker output, four microphones, adaptive beamforming, echo cancellation, and noise suppression, it is designed to maintain clearer communication even when background noise is present. Verkada’s TS12 datasheet also notes support for external speakers through line-out or amp-out for deployments that need additional audio reach.

Its stainless steel body, IK10 impact rating, and IP69 weather rating make it suitable for demanding indoor and outdoor installations. This makes the TS12-N-RB a practical option for exposed entryways, industrial sites, parking areas, gates, emergency stations, and other locations where durability is part of the requirement.

Cloud-Managed Through Verkada Command

As part of the Verkada Intercom platform, the TS12-N-RB is managed through Verkada Command. Teams can configure call routing, manage receivers, answer calls remotely, monitor device status, and support emergency workflows from a centralized cloud platform. Verkada’s intercom platform is designed to help organizations manage intercoms across sites with flexible call routing, reporting, and incident management tools.

Technical Specifications

• Product Type: Cloud-managed square audio intercom
• Model / SKU: TS12-N-RB-HW
• Button Configuration: Single raised red emergency button
• Onboard Storage: 32GB
• Audio Input: 4 omnidirectional digital MEMS microphones
• Audio Output: 8W speaker
• Speaker Output: 95 dB SPL at 1m / 3.3ft
• Audio Streaming: Two-way, full duplex with echo cancellation and noise suppression
• External Audio Output: Line-out and amp-out support
• Power: IEEE 802.3at PoE+
• Connectivity: Ethernet 10/100/1000 Mbps RJ-45 for network and PoE connection
• Inputs / Outputs: 2 dry inputs, 1 dry relay output, 1 RS-485 port
• Operating Temperature: -40°C to 50°C / -40°F to 122°F
• Operating Humidity: 5–90% RH, non-condensing
• Dimensions: 128mm L x 128mm W x 55mm H / 5.0in L x 5.0in W x 2.2in H
• Weight: 0.8kg / 1.8lb
• Material: Stainless steel body
• Weather Rating: IP69
• Impact Rating: IK10
• Certifications / Compliance: FCC, IC, CE, UKCA, RCM, VCCI, NOM, UL / IEC 62368-1, CSA No. 62368-1, UL 294, ULC-60839-11-1 Outdoor
• Availability: United States, Canada, United Kingdom, European Union, Australia, New Zealand, and Mexico
• Accessory Compatibility: ACC-INT-PLATE-1 Intercom Emergency Adapter Plate, ACC-INT-TS-COND Square Intercom Conduit Surface Mount, ACC-POE-2WIRE Verkada PoE over 2-Wire Converter

What’s in the Box

• Verkada TS12-N-RB Square Audio Intercom
• Mounting plate
• Mounting hardware kit
• T10 Torx security screwdriver
• Wiring / I/O accessories as provided by Verkada for installation

Ideal for Emergency Calling and Rugged Communication Points

For organizations that need a durable, easy-to-identify emergency communication point, the Verkada TS12-N-RB Square Audio Intercom provides a rugged, cloud-managed solution. It combines a raised red emergency button, powerful audio, remote call routing, outdoor-rated construction, and Verkada Command management into a compact intercom designed for emergency assistance, noisy environments, and camera-restricted locations.
