Highlights
- Dante edition of Yealink's 2-way coaxial ceiling speaker, carrying the same acoustics as the standard CS10 over a Dante audio network.
- 5.7-inch woofer and 1.1-inch coaxial tweeter, tuned for speech clarity.
- 24W rated power, 100 Hz–20 kHz frequency response, up to 99 dB SPL, 120° coverage angle.
- PoE+ (IEEE 802.3at, Class 4) powers the speaker and carries Dante audio over a single RJ-45 cable.
- Low-profile design (120mm depth), fits a 265–270mm ceiling cutout.
- UL 2043 rated for plenum installation.
- Designed to pair with the Yealink AP08 Dante DSP and CM50 Dante ceiling microphone for a fully networked audio system.
- White standard or black optional magnetic mesh cover.
Ideal For
- Integrated pro AV designs standardizing on Dante audio networking
- Yealink SkySound ceiling audio systems built around the AP08 DSP and CM50 ceiling microphone
- Large rooms needing even, speech-clear ceiling audio coverage
- Deployments requiring plenum-rated speakers for above-ceiling installation
Resources

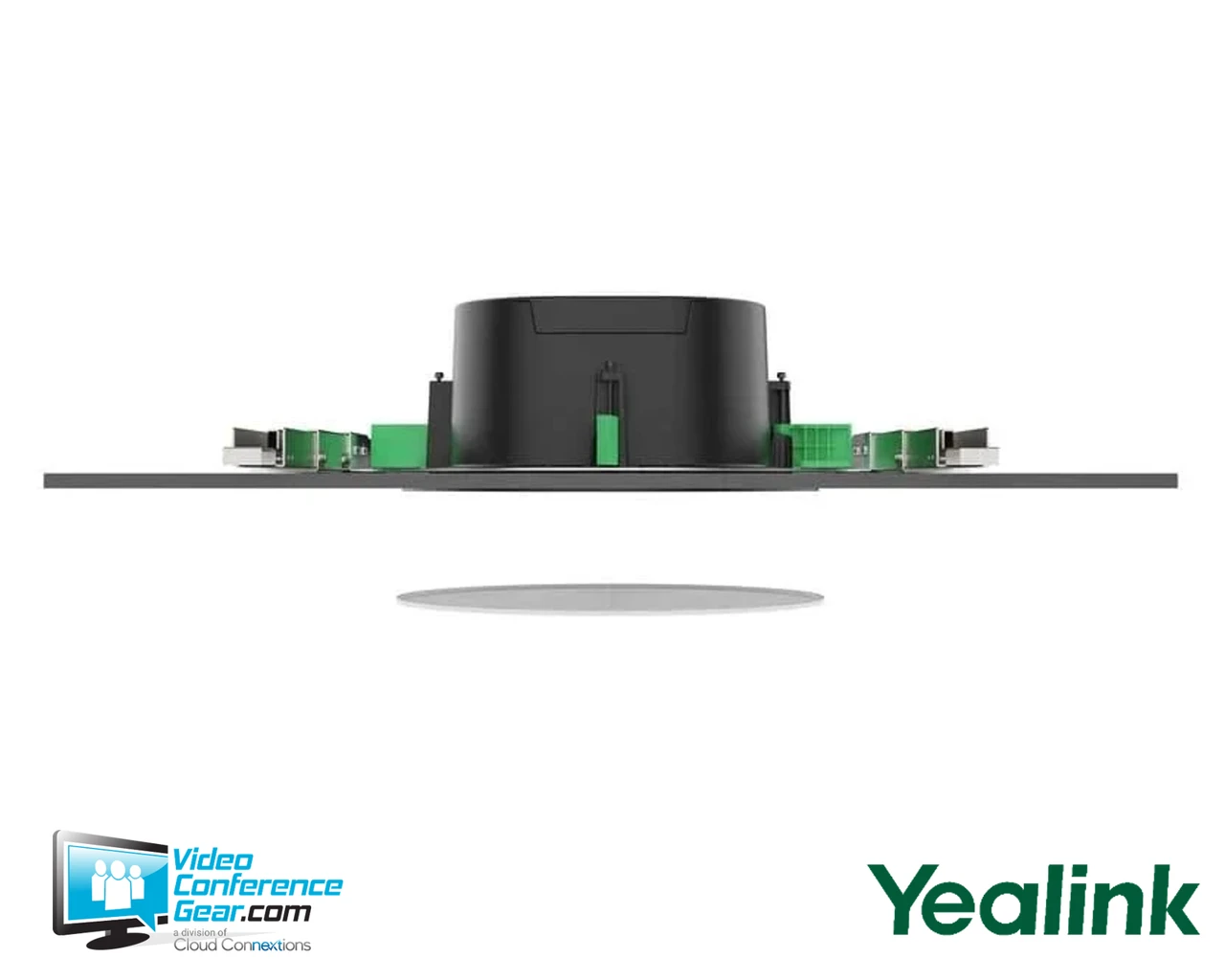

Yealink CS10-D Dante Edition 2-Way Coaxial Ceiling Speaker (1306036)
The CS10-D is the Dante edition of Yealink's 2-way coaxial ceiling loudspeaker, carrying the same acoustics as the standard CS10 while transporting audio over a Dante network. Its 5.7-inch woofer and 1.1-inch coaxial tweeter are tuned for speech clarity, delivering 24W rated power across a 100 Hz to 20 kHz frequency response, up to 99 dB SPL, and a 120° coverage angle for even, natural sound at every seat.
The CS10-D joins a Dante audio network over a single RJ-45 cable, drawing power via PoE+ (IEEE 802.3at, Class 4) over that same connection, alongside Dante DSPs and microphones on the network. It's designed to pair with the Yealink AP08 Dante DSP and CM50 Dante ceiling microphone for a fully networked ceiling audio system. Its low-profile design fits a 265–270mm ceiling cutout using the included bracing bridge and fixing bracket, and it's UL 2043 rated for plenum installation. Before ordering, confirm the room's audio architecture calls for Dante (this CS10-D) rather than the standard PoE-only CS10.
Key Specifications
- Manufacturer model: CS10-D (SKU 1306036)
- Product type: 2-way coaxial Dante ceiling speaker
- Driver configuration: 5.7-inch woofer, 1.1-inch coaxial tweeter
- Power: 24W RMS
- Frequency response: 100 Hz–20 kHz
- Maximum SPL: up to 99 dB
- Coverage angle: 120°
- Impedance: 8 ohm
- Networking: Dante audio over RJ-45
- Power supply: PoE+ (IEEE 802.3at, Class 4)
- Depth: low-profile, 120mm
- Ceiling cutout: 265–270mm
- Plenum rating: UL 2043
- Cover color: white (standard), black (optional), magnetic mesh

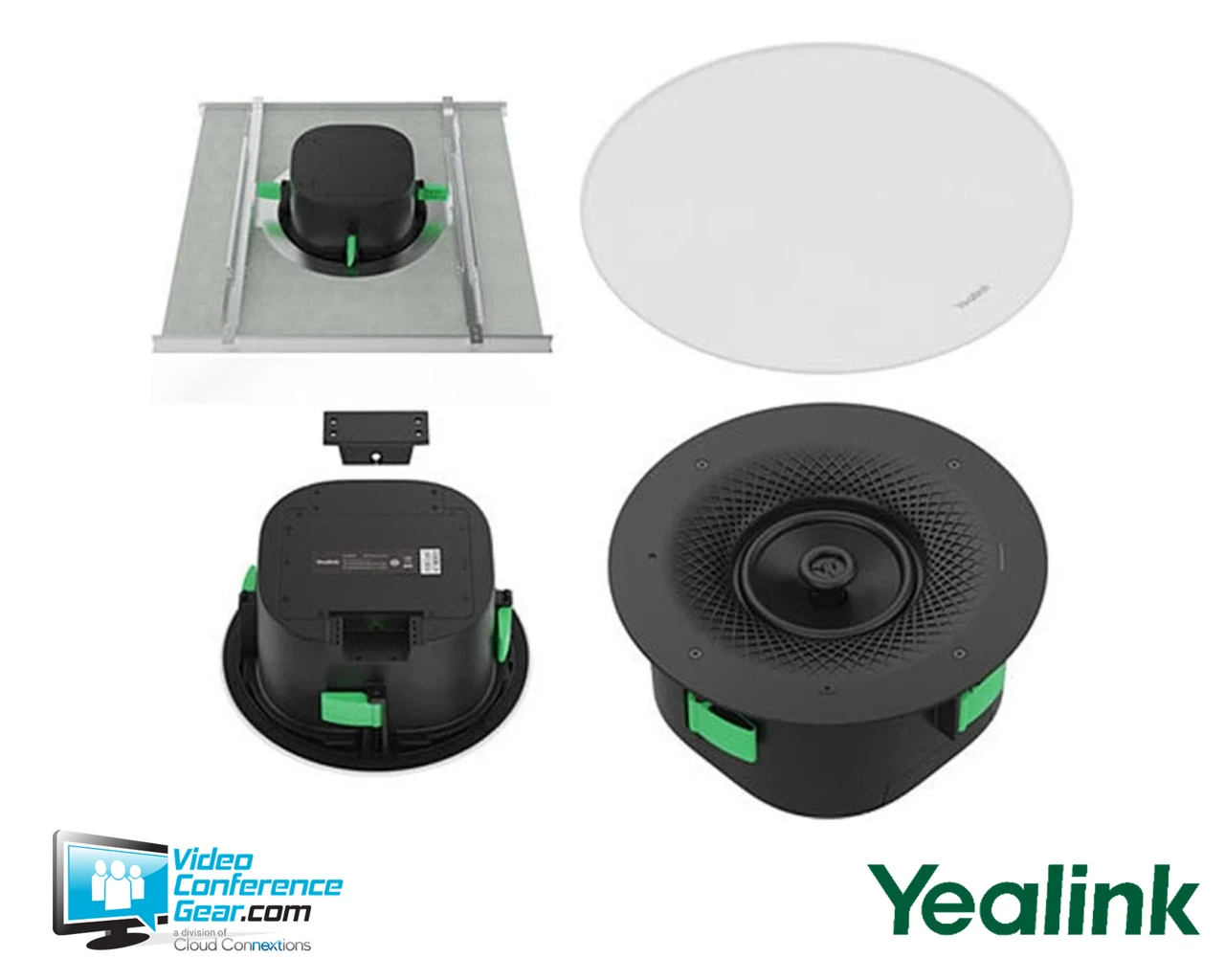

What's Included
- CS10-D ceiling speaker
- Bracing bridge
- Fixing bracket
- Magnetic mesh cover (white standard)
Certifications and Compatibility
- Dante audio networking: fully compatible with Dante-based professional AV systems.
- PoE+ (IEEE 802.3at, Class 4): powers the speaker over the same cable carrying Dante audio.
- Yealink AP08 Dante DSP: designed pairing for a fully networked ceiling audio system, with the AP08's Dante ports supplying PoE+.
- Yealink CM50 Dante ceiling microphone: designed pairing for a complete ceiling audio solution.
- UL 2043: rated for plenum installation.
- Compatibility is limited to Yealink-published Dante ecosystem components. Confirm current compatibility against Yealink's documentation for your specific deployment.
Design Considerations
- Confirm the room's audio architecture calls for Dante networking; use the standard CS10 instead for PoE-only, non-Dante installs.
- Plan the ceiling cutout (265–270mm) and confirm the ceiling type is compatible with the included bracing bridge and fixing bracket.
- Pair with the Yealink AP08 Dante DSP and CM50 ceiling microphone for a complete networked audio system.
- Choose the white standard or black optional magnetic mesh cover to match the room's ceiling.
- Confirm plenum installation requirements are met using the UL 2043 rating where applicable.
- For multi-room standardization, specify a consistent Dante ceiling audio architecture (CS10-D, CM50, AP08) across every room.
VideoConferenceGear.com Assistance
We can confirm the CS10-D is the right choice for your Dante-based ceiling audio system, versus the standard PoE-only CS10. We can help plan ceiling cutout and mounting requirements, and advise on pairing with the AP08 DSP and CM50 ceiling microphone for a complete networked audio solution. For multi-room and multi-site programs we can help standardize the ceiling audio architecture across every space.
Common Questions
What does the "-D" in CS10-D mean?
Dante. The CS10-D carries the same 2-way coaxial acoustics as the standard CS10 but transports audio over a Dante network.
How is the CS10-D powered?
By PoE+ (IEEE 802.3at, Class 4) over the same RJ-45 cable that carries Dante audio.
What does it pair with?
The Yealink AP08 Dante DSP and CM50 Dante ceiling microphone, for a fully networked ceiling audio system.
Is it rated for plenum installation?
Yes. It's UL 2043 rated.
What ceiling cutout does it need?
265–270mm, using the included bracing bridge and fixing bracket.
What cover colors are available?
White (standard) and black (optional), both magnetic mesh.
