Highlights
- Low-profile (120 mm) 2-way coaxial ceiling speaker purpose-built for conference room audio.
- 5.7-inch LF woofer and 1.1-inch HF tweeter for high-fidelity, vocal-focused sound reproduction.
- PoE+ powered active speaker with integrated DAC for simplified, low-latency network audio.
- Acoustically tuned for speech clarity, with emphasized mid-range frequency response.
- Detachable, paintable magnetic grille in black or white for a clean ceiling finish.
- UL 2043 rated for plenum installation.
- Available in a Dante-enabled version (CS10-D) for advanced audio networking.
Ideal For
- Conference rooms, classrooms, and collaboration spaces needing ceiling-distributed audio
- Yealink SkySound room audio deployments alongside CM20 ceiling microphones
- Rooms specifying PoE-based audio to simplify cabling
- Plenum ceiling installations requiring UL 2043 rated equipment
- ProAV environments planning Dante-based audio networking (CS10-D)
Resources

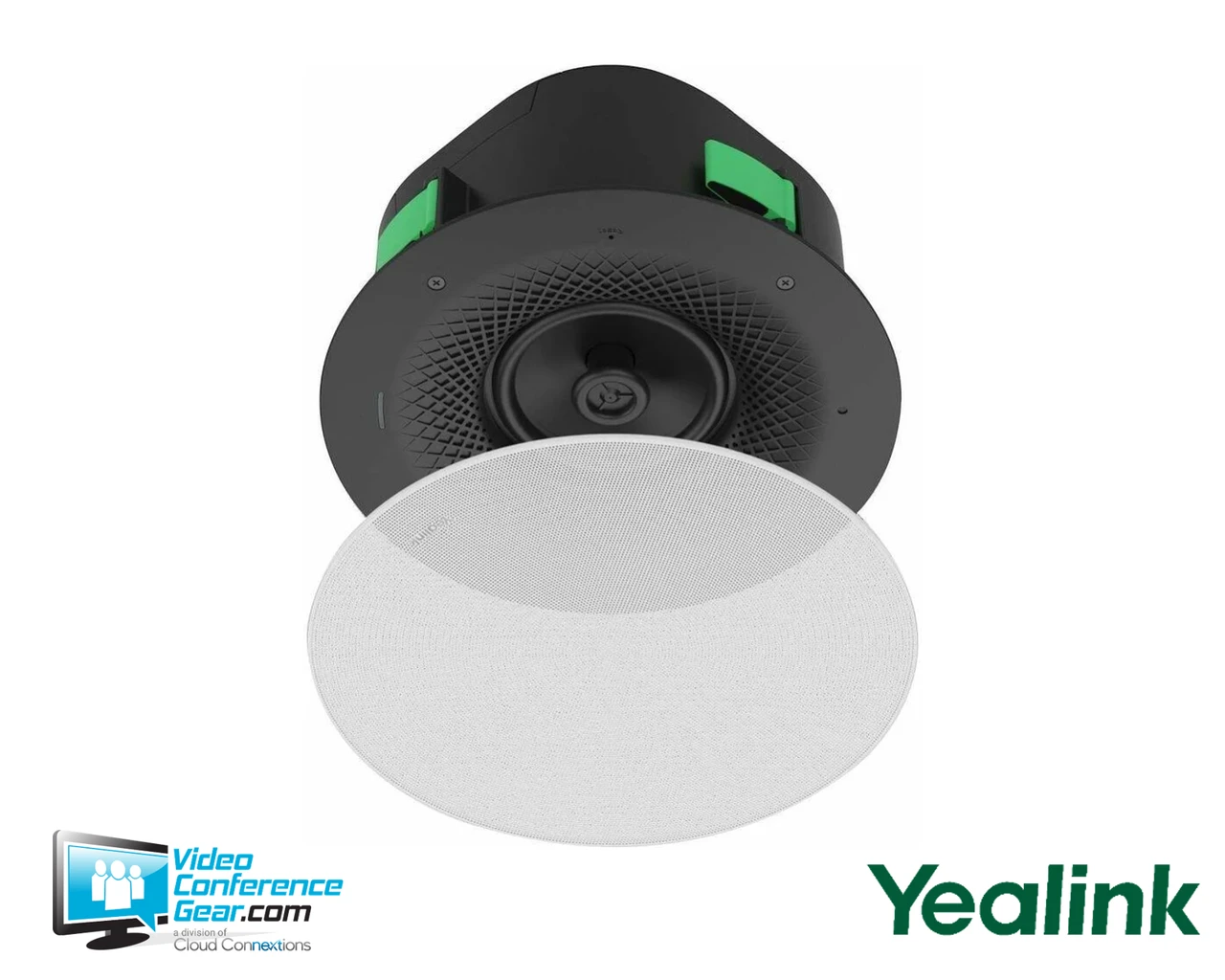

Yealink CS10 SkySound 2-Way Coaxial Network Ceiling Speaker
The CS10 is a low-profile, 2-way coaxial network ceiling speaker built for professional meeting audio. Its 5.7-inch woofer and 1.1-inch tweeter combine in a coaxial structure for balanced, high-fidelity sound, with tuning that emphasizes mid-range frequencies for clear speech intelligibility across conference rooms, classrooms, and collaboration spaces.
As a PoE+ powered active speaker with an integrated DAC, the CS10 takes digital signal directly from the network, simplifying installation and minimizing latency without a separate amplifier or analog wiring run. It ships in standard and Dante-enabled (CS10-D) versions, so rooms that need advanced ProAV audio networking can specify the Dante variant. Before ordering, confirm whether the room's audio design calls for the standard CS10 or the Dante-enabled CS10-D, verify the ceiling type and plenum requirements, and confirm the network switch supplies PoE+.
Key Specifications
- Manufacturer model: CS10 (standard version); Dante-enabled version available as CS10-D
- Product type: 2-way coaxial network ceiling speaker
- Drivers: 5.7-inch LF woofer, 1.1-inch HF tweeter
- Acoustic performance: sensitivity 88 dB at 1W/1m, maximum SPL 99 dB at 20W/1m
- Power: PoE+ (Power over Ethernet Plus)
- Signal processing: integrated DAC, active speaker with DSP
- Networking: standard CS10, with optional Dante module or dedicated CS10-D variant
- Profile: low-profile, 120 mm
- Grille: detachable, paintable, magnetic attachment, black or white
- Plenum rating: UL 2043

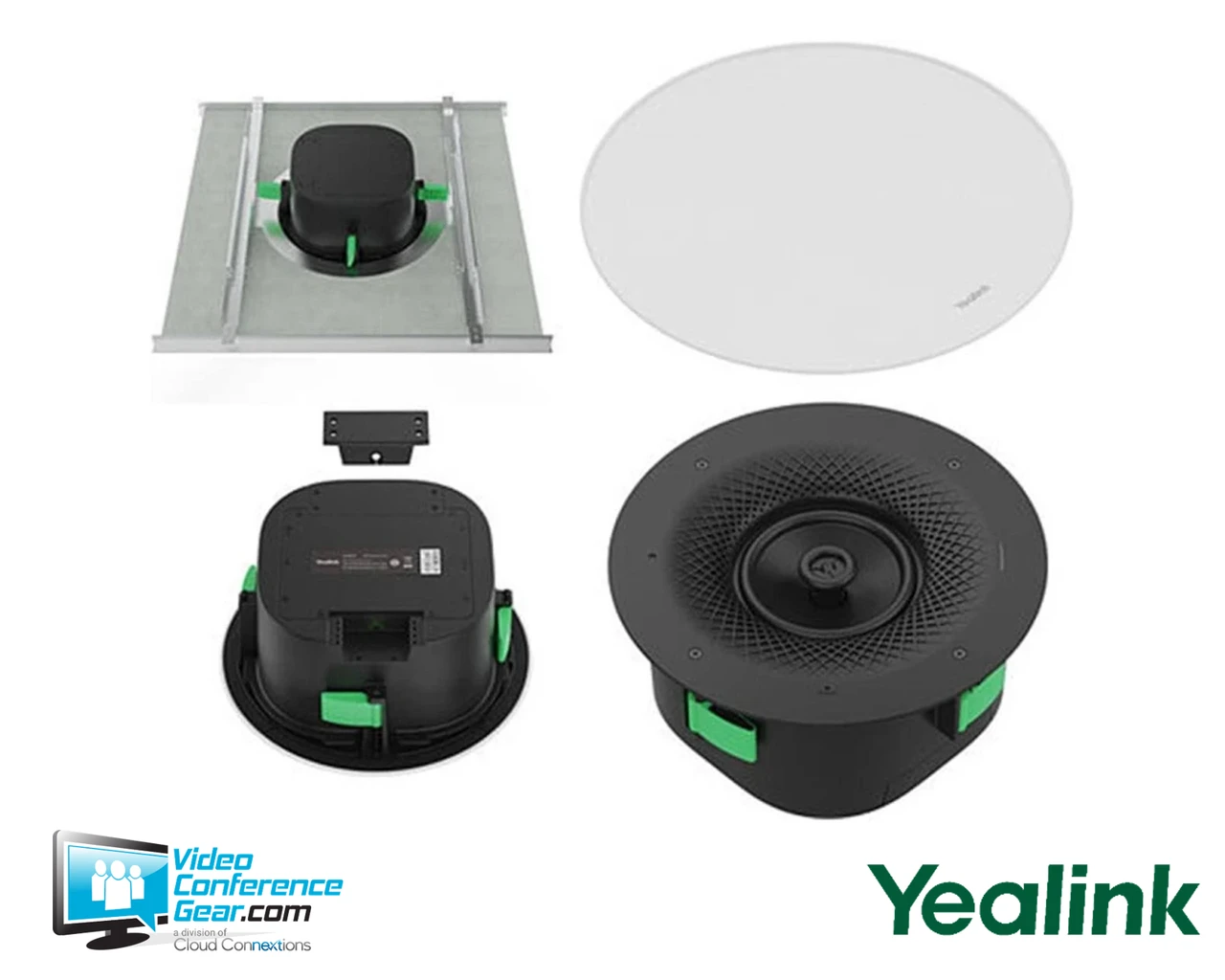

What's Included
- CS10 SkySound speaker
- White mesh cover (black optional)
- Quick Start Guide
- Assembly fixing bracket
- Dust cover
- Deployment instruction template
- Bracing bridge (optional)
- Screws (6x, M3 x 4CMHOZN3)
Certifications and Compatibility
- Yealink SkySound audio solution: the CS10 is a core component of Yealink's SkySound ceiling audio ecosystem, alongside the CM20 ceiling microphone.
- RCH40 E2: Yealink specifies the RCH40 E2 room cable hub (with Energy Efficient Ethernet disabled) for CS10 connectivity, rather than the standard RCH40.
- Dante networking: available via the CS10-D variant or an optional Dante module, for integration into advanced ProAV audio networks.
- Power source: requires PoE+. Confirm the network switch or PoE injector supplies PoE+ rather than standard PoE.
- Plenum installation: UL 2043 rated for use in plenum ceiling spaces.
- Compatibility is limited to Yealink-published SkySound components. Confirm current compatibility against Yealink's SkySound and Teams Rooms accessory documentation.
Design Considerations
- Decide between the standard CS10 and the Dante-enabled CS10-D during audio system design, based on whether the room integrates with a Dante-based ProAV network.
- Confirm the network hub or switch supplies PoE+, and specify the RCH40 E2 where Yealink's room cable hub is used.
- Plan speaker placement and count for the room's ceiling layout and size, coordinating with any CM20 ceiling microphones in the same space.
- Confirm the ceiling type (drop tile, plenum, or other) and use the deployment template and bracing bridge as needed for the specific installation.
- For multi-room standardization, specify a consistent CS10 or CS10-D configuration so every room's ceiling audio performs the same way.
VideoConferenceGear.com Assistance
We can confirm whether the standard CS10 or the Dante-enabled CS10-D is right for your room's audio design, and verify your network switch or hub supplies the PoE+ the speaker requires. We can help plan speaker placement and count for the ceiling layout, coordinate with CM20 ceiling microphones for a complete SkySound audio system, and confirm plenum or ceiling-type requirements for installation. For multi-room and multi-site programs we can help standardize the ceiling audio configuration across every space.
Common Questions
Is this the standard CS10 or the Dante version?
This listing covers the standard CS10. A Dante-enabled version, the CS10-D, is available separately for advanced audio networking.
How is it powered?
Over PoE+ (Power over Ethernet Plus), with an integrated DAC for direct network audio processing.
Can it be installed in a plenum ceiling?
Yes. The CS10 is UL 2043 rated for plenum installation.
What speaker drivers does it use?
A 5.7-inch LF woofer and a 1.1-inch HF tweeter in a coaxial arrangement.
Does it pair with a specific network hub?
Yealink specifies the RCH40 E2 room cable hub, which disables Energy Efficient Ethernet, for CS10 connectivity rather than the standard RCH40.
What color options does the grille offer?
White is standard, with a black grille available as an alternative, and the grille is paintable.
