Yealink ZVCS80 Zoom Rooms Kit for Medium-to-Large Rooms — Base Kit

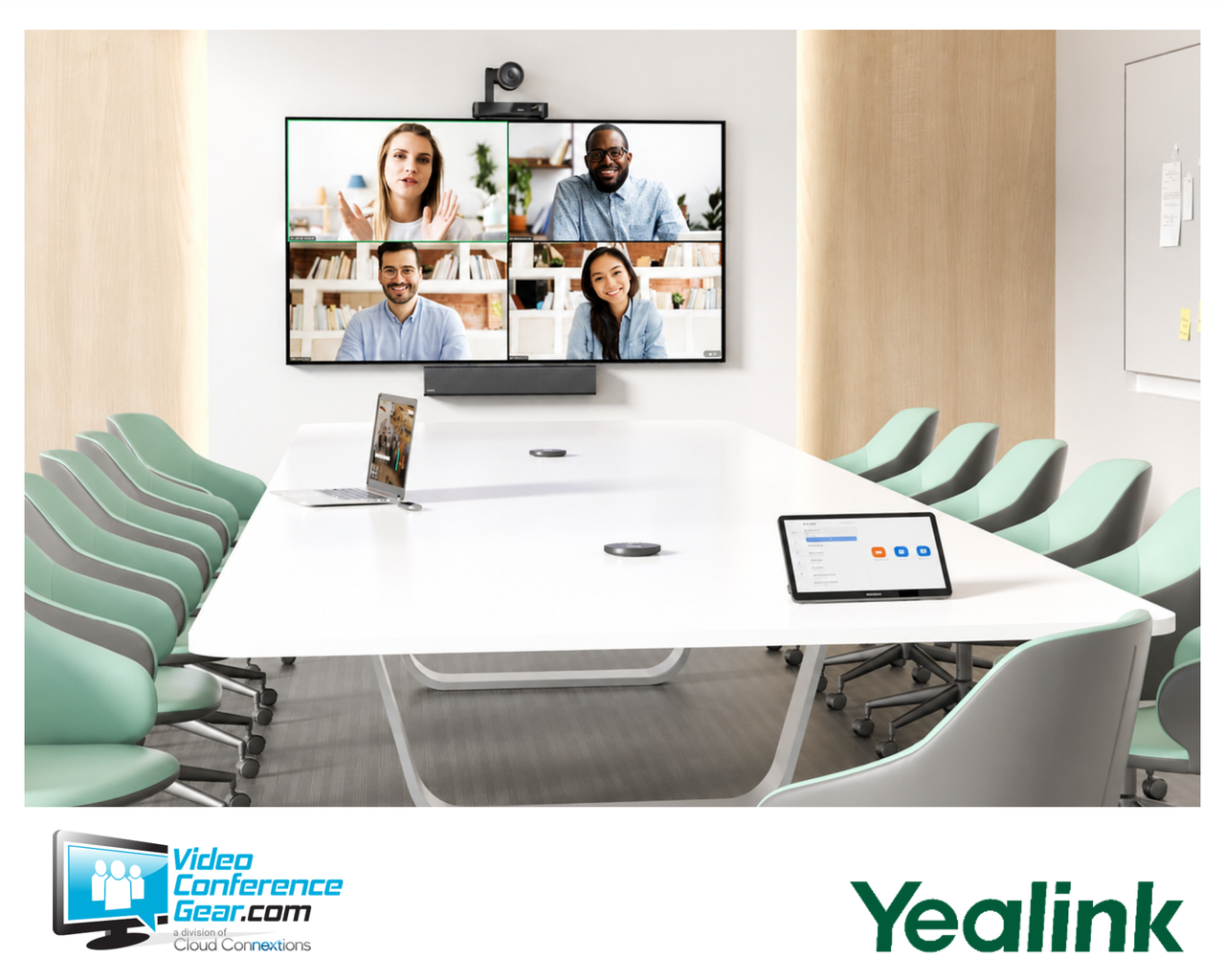

The Yealink ZVCS80-C5U-000 is a professional Zoom Rooms system designed for medium-to-large conference rooms, executive boardrooms, training rooms, and other collaboration spaces requiring clear video coverage across greater distances. The base kit combines the Yealink SmartVision 80 intelligent camera, MCore 4 room computer, MTouch Plus touch console, and RoomSensor into a coordinated Windows-based Zoom Rooms solution.

SmartVision 80 uses four integrated camera lenses to capture both broad room views and detailed close-ups of individual participants. The MCore 4 provides dedicated room computing, while the MTouch Plus gives users a familiar touchscreen interface for starting meetings, controlling calls, adjusting camera views, and sharing content. The included RoomSensor adds occupancy detection and automatic room wake-up. Because this is a base kit, room microphones, loudspeakers, displays, and other AV components can be selected separately according to the size, layout, and acoustic requirements of the space.

Room Camera | Yealink SmartVision 80

The Yealink SmartVision 80 is a four-lens intelligent camera designed to provide complete visual coverage in medium-to-large meeting rooms. Its panoramic lens maintains a wide view of the room, two telephoto lenses provide closer participant views, and the mechanical PTZ camera delivers detailed images with up to 20x optical zoom. AI-assisted camera modes help frame participants, follow speakers, track presenters, and create more natural views for remote attendees.

Technical Specifications

• Camera System: Four-lens intelligent camera
• Video Resolution: Up to 4K
• Camera Configuration:
  • 1 mechanical PTZ camera
  • 1 panoramic camera
  • 2 telephoto cameras
• Optical Zoom: Up to 20x through the PTZ camera
• PTZ Field of View:
  • 61.5° horizontal
  • 36° vertical
• Panoramic Field of View:
  • 98° horizontal
  • 82° vertical
• Telephoto Field of View:
  • 41.6° horizontal
  • 32° vertical
• Intelligent Camera Features:
  • IntelliFocus
  • Speaker Tracking
  • Presenter Tracking
  • Auto Framing
  • Video Fence
  • Picture-in-Picture
• Built-In Microphones: Four-microphone array for sound-source localization
• Physical Connections:
  • 1 × RJ45 Ethernet
  • 1 × HDMI output
  • 1 × USB-A 2.0
  • 1 × USB-B 3.0
  • 2 × VCH RJ45
  • 1 × 3.5 mm line input
  • 1 × 3.5 mm line output
  • 1 × power input

Room Computer | Yealink MCore 4

The Yealink MCore 4 is a dedicated Windows mini-PC that runs the Zoom Rooms application and manages the room’s conferencing hardware. Its Intel Core Ultra processor, integrated AI processing, DDR5 memory, and solid-state storage provide the performance required for modern video collaboration. Multiple HDMI outputs support multi-display room configurations, while the HDMI input provides a wired content-sharing connection.

Technical Specifications

• Processor: Intel Core Ultra 5 125H
• Memory: 16 GB DDR5
• Memory Configuration: 2 × 8 GB
• Storage: 256 GB SSD
• Wireless Networking: Wi-Fi 6
• Bluetooth: Bluetooth 5.2
• Network Connections:
  • 1 × Gigabit RJ45 Ethernet
  • 1 × LAN port
  • 1 × dedicated MTouch RJ45 connection
• Video Connections:
  • 1 × HDMI 2.1 output
  • 2 × HDMI 2.0 outputs
  • 1 × HDMI input
• Audio Connection: 1 × 3.5 mm
• USB Connections: 4 × USB-A 3.0
• Power: 1 × power input

Room Controller | Yealink MTouch Plus

The Yealink MTouch Plus provides a dedicated touchscreen interface for operating the Zoom Room. Users can join scheduled meetings, start new calls, manage participants, control camera views, adjust meeting settings, and share content without relying on a personal computer. The adjustable 11.6-inch display can be positioned on a conference table or installed using compatible mounting options.

Technical Specifications

• Display Size: 11.6 inches
• Display Resolution: 1920 × 1080
• Display Type: Touchscreen
• Wireless Networking: Wi-Fi 6
• Bluetooth: Bluetooth 5.2
• Physical Interfaces:
  • 1 × 3.5 mm headset connection
  • 2 × USB-A
  • 2 × USB-C
  • 1 × RJ45 connection for MCore
  • 1 × RJ45 connection for an extension touch panel
• Installation Options:
  • Desktop placement
  • Fixed tabletop installation
  • Wall mounting

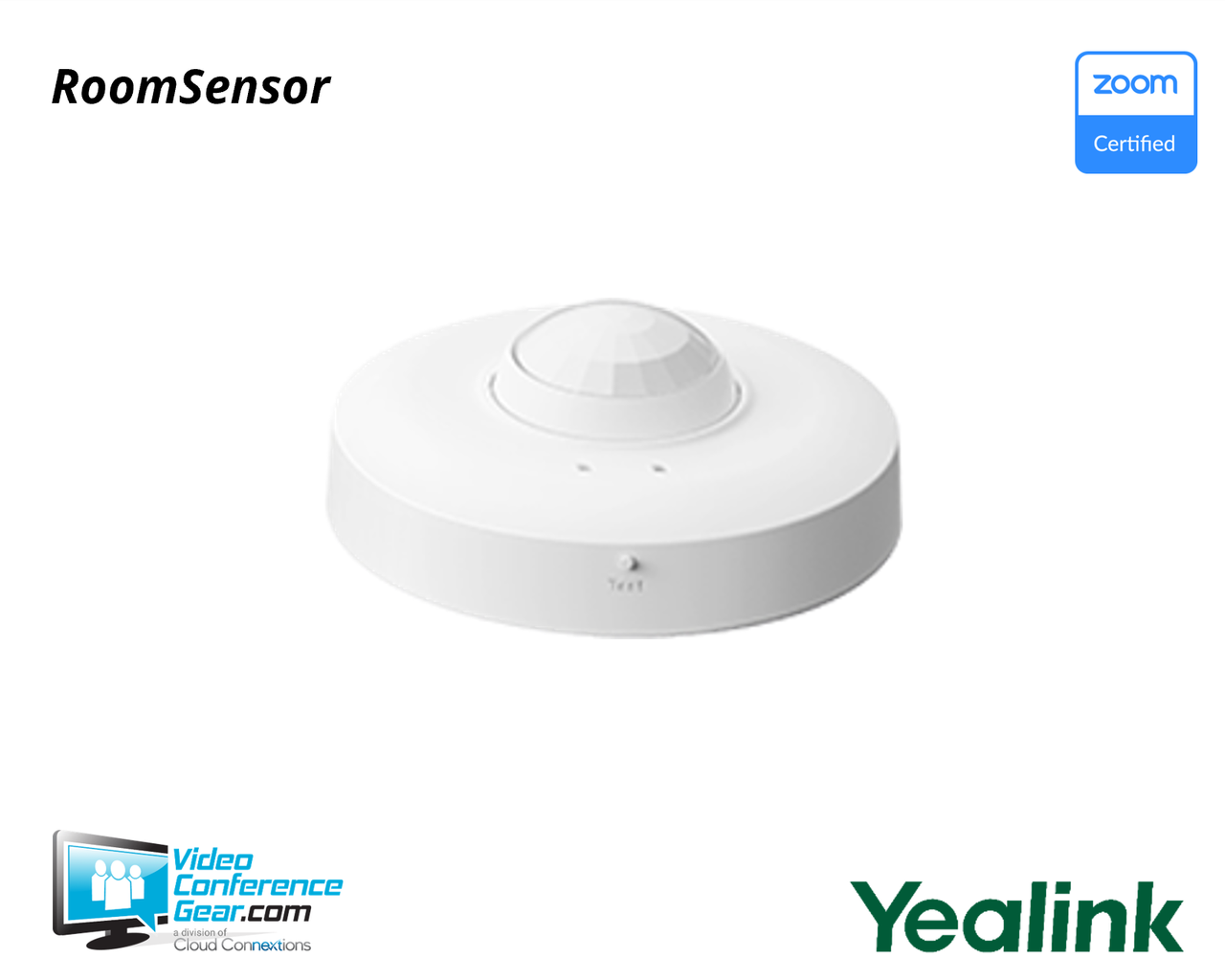

Occupancy Sensor | Yealink RoomSensor

The Yealink RoomSensor is a ceiling-mounted passive infrared sensor that detects room occupancy and can automatically wake the Zoom Rooms system as participants enter. It also provides environmental information that can support room monitoring and workspace management.

Technical Specifications

• Detection Technology: Passive infrared
• PIR Detection Angle: 120°
• Recommended Mounting Height: Approximately 9.8 feet
• Major Motion Coverage: Up to 19.7 feet
• Minor Motion Coverage: Up to 9.8 feet
• Bluetooth: Bluetooth 5.2
• Bluetooth Range: Up to 100 feet
• Environmental Monitoring:
  • Temperature
  • Humidity
  • Ambient light
• Durability Rating: IP20

What’s Included

• Yealink SmartVision 80 camera package
• Yealink MCore 4 room computer package
• Yealink MTouch Plus touch console package
• Yealink RoomSensor package
• Camera remote control
• Camera wall-mounting hardware
• MCore mounting hardware
• Power adapters
• System connection cables
• Installation and quick-start documentation
