Highlights
- SmartVision 80 combines a 20x optical-zoom PTZ tracking camera with three electronic cameras for intelligent coverage in larger spaces.
- The MCore 4 room PC includes an Intel Core Ultra 5 processor with built-in NPU, 16 GB DDR5 memory, and a 256 GB SSD.
- Three HDMI outputs with CEC support give system designers options for multi-display room layouts.
- The 11.6-inch MTouch Plus console provides dedicated in-room meeting control, and multiple touch panels can be deployed in one room.
- Wired laptop sharing is supported through the MTouch USB-C or HDMI connection, with wireless sharing available when a Yealink WPP30 sharing dongle is added.
Ideal For
- Large Microsoft Teams Rooms for approximately 12–20 participants
- Executive conference rooms and boardrooms
- Training rooms and larger collaboration spaces
- Multi-display Teams Rooms deployments that need dedicated room compute and touch control
Resources
Yealink MVC S80 Microsoft Teams Rooms System for Large Rooms | 1106798

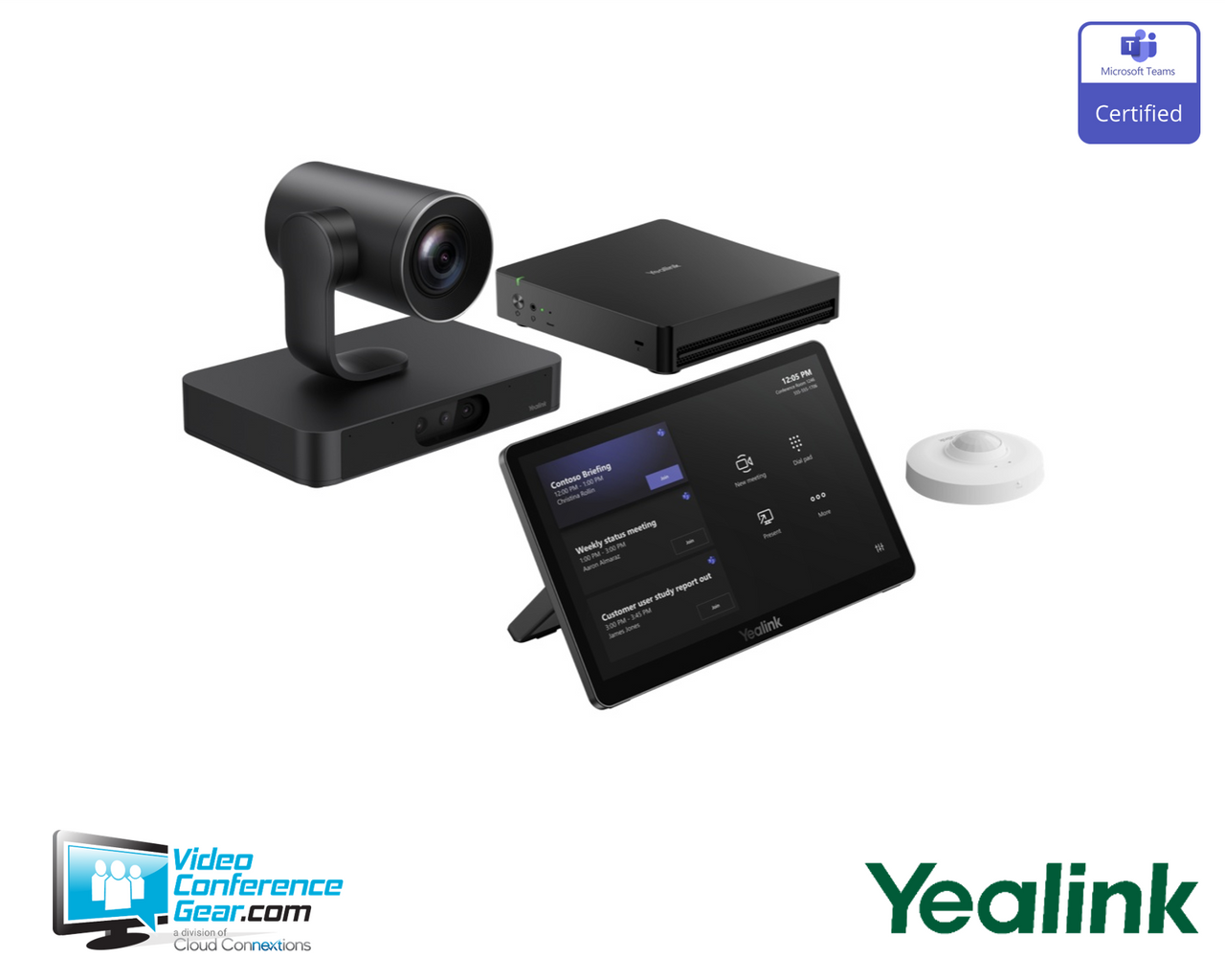

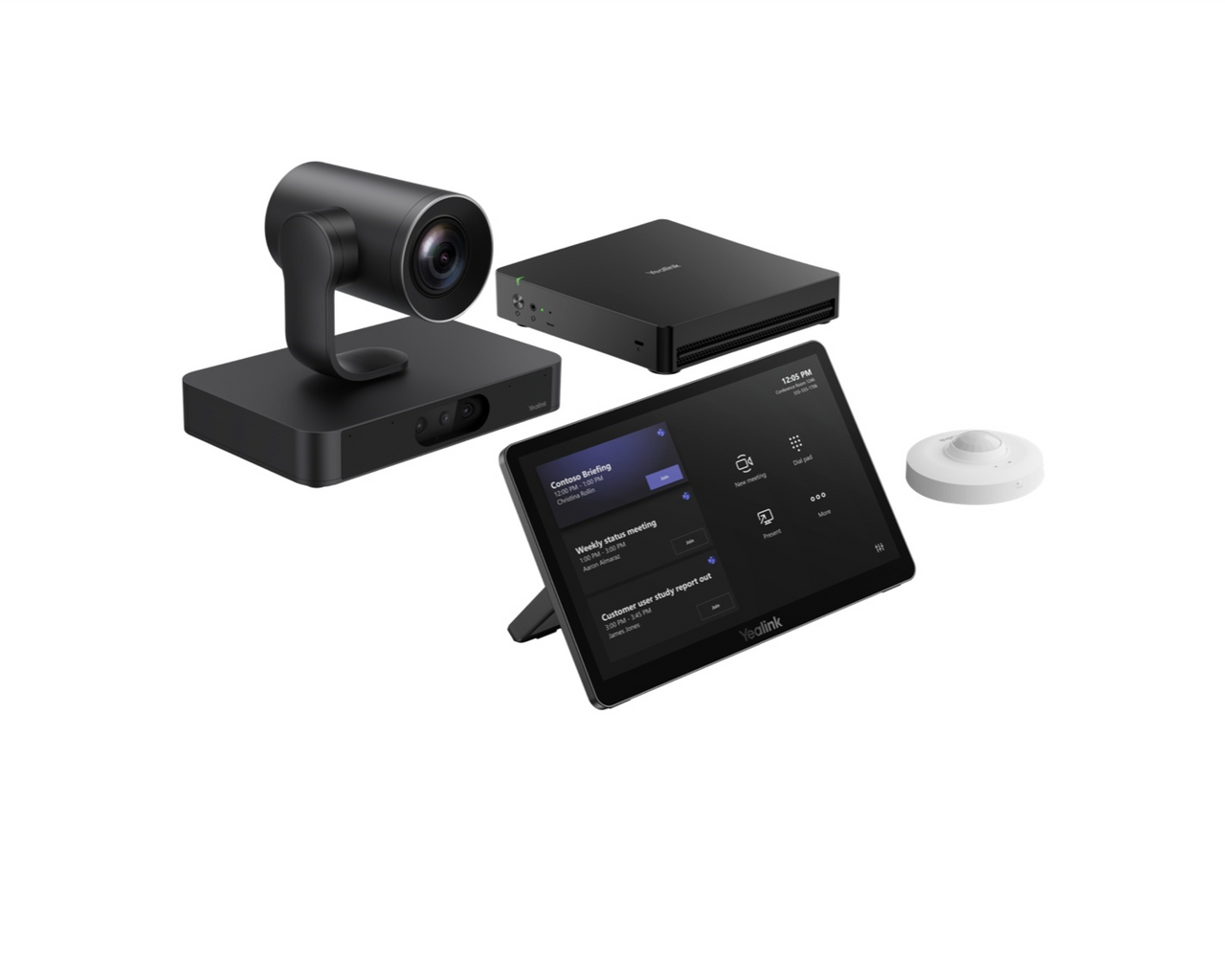

The Yealink MVC S80 is a Microsoft Teams Rooms on Windows bundle for larger conference spaces where camera reach, intelligent multi-camera coverage, and dedicated in-room control matter. It combines the SmartVision 80 four-lens camera system with an MCore 4 room PC and MTouch Plus touch console for a purpose-built Teams Rooms installation.
This configuration is best suited to large rooms, including deployments planned for roughly 12–20 people. The SmartVision 80 pairs one 20x optical-zoom PTZ tracking camera with three electronic cameras, while the MCore 4 supports up to three HDMI displays. Plan for room audio separately: this base system does not include microphones or speakers, so a compatible Yealink or Pro AV audio design is required to complete the room.
Platform Compatibility
Key Specifications
- Product type: Microsoft Teams Rooms on Windows video conferencing system bundle
- Manufacturer part number: MVC S80-C5U-000
- Internal SKU: 1106798
- Recommended room fit: large rooms; Yealink’s supplied room design identifies 12–20 people
- Camera system: SmartVision 80 with one PTZ tracking camera and three electronic cameras
- Primary PTZ lens: 20x optical zoom
- Camera resolution: 4K
- Room computer: MCore 4 with Intel Core Ultra 5 processor and built-in NPU
- Memory and storage: 16 GB DDR5 (2 x 8 GB) and 256 GB SSD
- Video connections: three HDMI outputs with CEC and one 4K HDMI input
- Connectivity: Wi-Fi, Bluetooth, and four USB 3.0 ports
- Touch console: MTouch Plus with 11.6-inch screen
- Preloaded software: Windows 11 IoT Enterprise OS and license, Microsoft Teams Rooms app, Yealink Camera Control Plug-in, and Yealink RoomConnect
What's Included
- SmartVision 80 quad-eye 4K intelligent camera with 20x optical PTZ
- VCR20 remote control
- MCoreKit-C5U, including MCore 4 mini-PC, MTouch Plus touch console, and RoomSensor
- Camera power adapter, wall-mount bracket, and cables
- Kit power adapter, cables, and wall bracket
Compatibility
- Meeting platform: Native Microsoft Teams Rooms on Windows configuration with the Microsoft Teams Rooms app preloaded.
- Room audio: No dedicated audio device is included. Yealink lists VCM35, VCM36, CM20, and MSpeaker Pro as compatible audio components; a complete room audio design must be selected separately.
- Content sharing: Supports wired sharing from a laptop through the MTouch USB-C or HDMI connection.
- Wireless sharing: Requires a Yealink sharing dongle/WPP30, sold separately.
- Room displays: MCore 4 provides three HDMI video outputs with CEC for multi-display integrations.
- Required room account: A Microsoft Teams Rooms Basic or Microsoft Teams Rooms Pro license must be assigned to the room resource account for Teams Rooms sign-in and use.
Licensing, Warranty & Support
Windows 11 IoT Enterprise licensing is included on the MCore 4, and the Microsoft Teams Rooms app is preloaded. A separate Microsoft Teams Rooms Basic or Microsoft Teams Rooms Pro license is required for the room resource account. Teams Rooms Basic provides core meeting functionality and basic management, while Teams Rooms Pro adds advanced remote-management features. Yealink RoomConnect is preloaded. The system includes a 2-year hardware warranty. Yealink provides support resources and ticket submission through its support portals. Microphones, speakers, and the selected room-audio solution are not included and must be specified separately.
VideoConferenceGear.com Assistance
We can help validate the MVC S80 for your room size and display layout, build the required Yealink or Pro AV audio design, confirm Teams Rooms licensing, and coordinate deployment and ongoing support across one or multiple locations. Contact us to plan a complete MVC S80 room system before ordering.
Common Questions
Does the MVC S80-C5U-000 include microphones and speakers?
No. This base system does not include an audio device, so microphones, speakers, and the associated room-audio design must be selected separately.
Is a Microsoft subscription included?
No Microsoft Teams Rooms subscription is included. Windows 11 IoT Enterprise licensing and the Teams Rooms app are preloaded, but the room resource account needs a separate Microsoft Teams Rooms Basic or Teams Rooms Pro license.
Can users share content from a laptop?
Yes. Users can share through the MTouch USB-C or HDMI connection, while wireless sharing requires a separately purchased Yealink WPP30 sharing dongle.
What is included with SKU 1106798?
SKU 1106798 is Yealink MVC S80-C5U-000. It includes the SmartVision 80 camera, VCR20 remote, MCore 4 mini-PC, MTouch Plus console, RoomSensor, and associated power, mounting, and connection hardware.
