Highlights
- Write, annotate, and interact with content using 40-point advanced IR touch on zero-bond, anti-fingerprint, double-sided anti-glare glass.
- Support hybrid instruction with a detachable 4K 13 MP camera, a 10-element microphone array with up to 8 m pickup, and noise and echo cancellation.
- Use the built-in Android 13 platform for supported onboard functions without requiring a Windows PC for baseline operation.
- Present room content with 4K UHD resolution and integrated 2.1-channel audio, including two 16 W speakers and a 20 W subwoofer.
- Expand the display later with a supported OPS slot-in PC when a Windows-based room-computer workflow is needed.
- Use MDM capabilities for remote management, updates, and security as part of a planned device-management environment.
Ideal For
- Connected classrooms supporting in-person, remote, and hybrid learning
- Smaller training rooms that need a large interactive display and integrated AV hardware
- Education deployments that need built-in Android functionality with optional Windows OPS expansion
- Organizations standardizing interactive displays across supported locations in the United States, Canada, Australia, or New Zealand
Resources

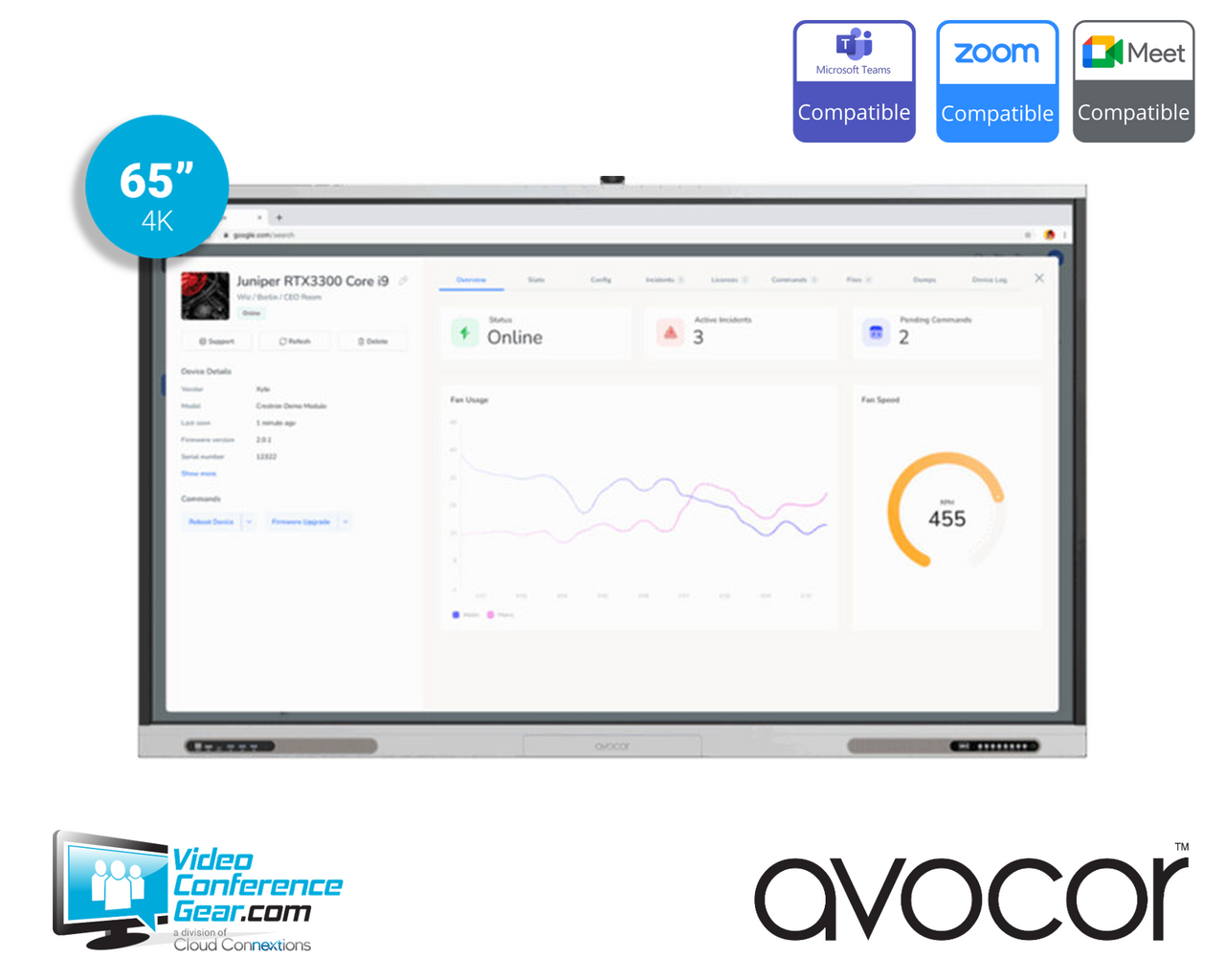

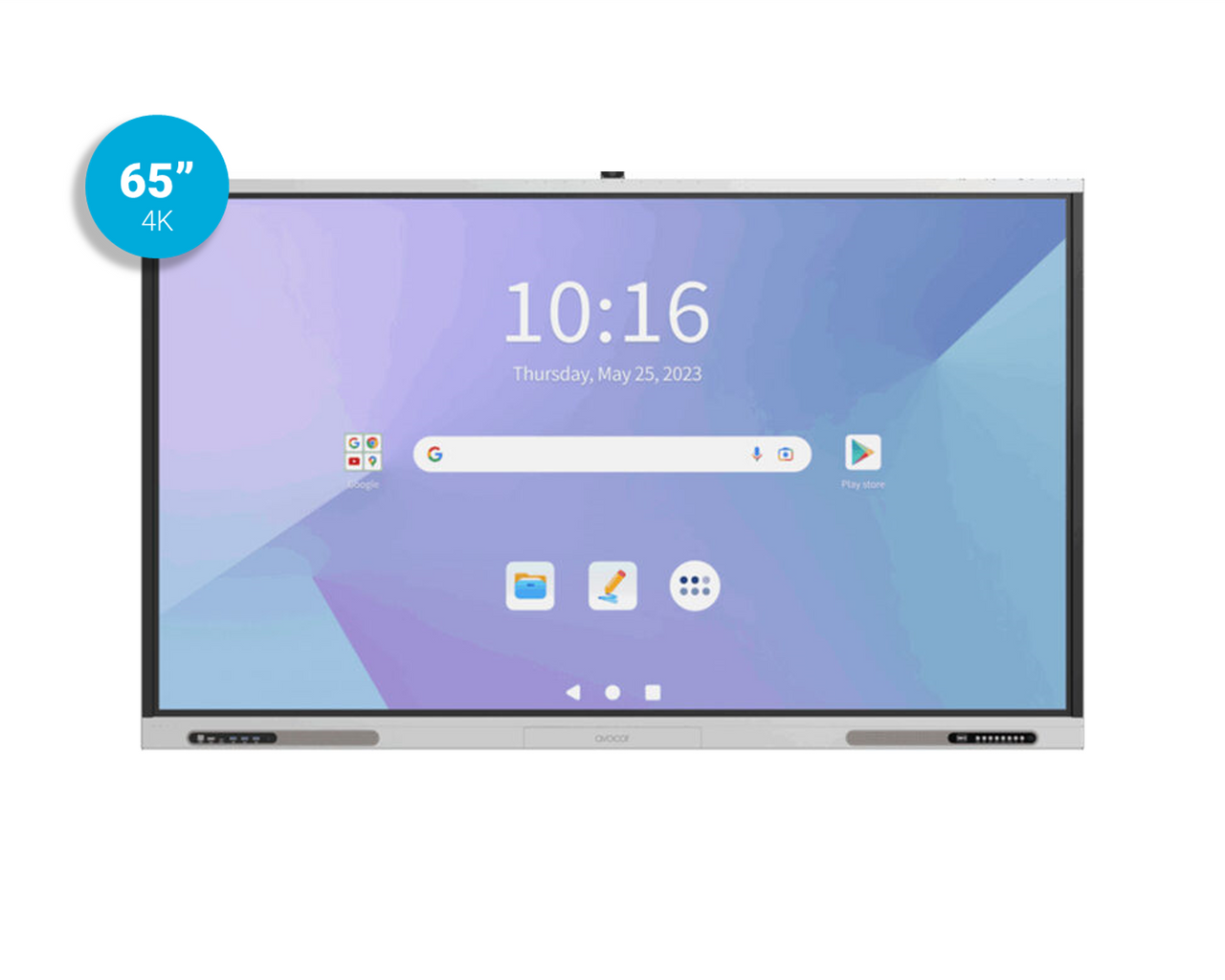

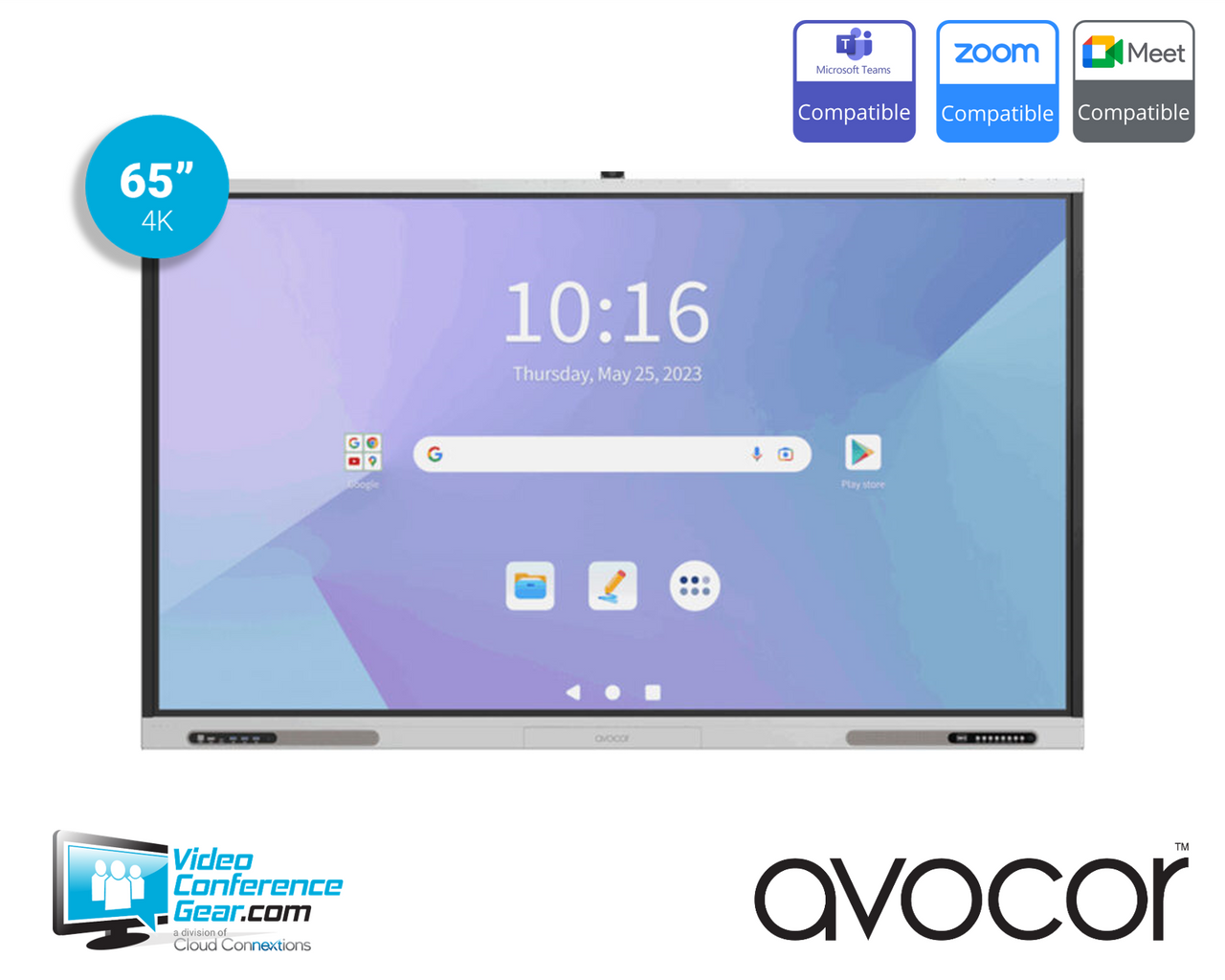

Avocor A Series 65-Inch Interactive Display — AVA-6520
The Avocor A Series AVA-6520 is a standalone 65-inch interactive flat-panel display for classrooms and smaller training spaces that need to support in-person, remote, and hybrid learning from one central screen. Its built-in Android 13 platform, 40-point touch experience, detachable 4K camera, 10-element microphone array, and integrated audio bring presentation, annotation, and hybrid-session hardware together in a single display. This is a practical fit when teams want a 4K collaboration display that can operate with its built-in Android functions while retaining room-computer expansion options. An OPS slot is available for a separately selected Windows OPS PC, and an attached Windows PC can also be used when DisplayNote Launcher is required. Before ordering, confirm the Windows, Google service, third-party app, and device-management requirements for your planned deployment.
Key Specifications
- Display: 65-inch direct-lit LED LCD, 3840 x 2160 at 60 Hz, 16:9 landscape orientation
- Brightness and contrast: 500 cd/m² maximum brightness with glass; 1200:1 contrast
- Touch: 40 multi-touch points; advanced IR touch technology
- Built-in platform: Android 13; A76 x4 plus A55 x4 CPU; Mali G610 MC4 GPU; 8 GB RAM; 128 GB ROM
- Camera: detachable 4K 13 MP Sony IMX214 camera with 123° field of view and 30 fps
- Microphones: 10-element omnidirectional array with up to 8 m pickup, noise cancellation, and echo cancellation
- Audio: 2.1-channel system with two 16 W speakers and a 20 W subwoofer
- Networking and wireless: Wi-Fi 5, NFC, and two LAN ports
- Mounting: VESA 500 x 400 mm with M8 screws; two handles
- Packaged shipping weight: 54 kg (119 lb) gross
- Packaged shipping dimensions: 1613 mm depth x 216 mm width x 1050 mm height (63.47 x 8.50 x 41.34 in)
What's Included
- Remote control
- Wall mount
- AC power cord
- USB-A/B 2.0 cable
- HDMI cable
- Quick Start Guide
- Two NFC cards
- Eraser
- Two styluses
- Extra stylus tips
Compatibility
- Built-in Android 13 supports the display's onboard functions without a Windows PC.
- An OPS slot supports an optional OPS slot-in PC; an OPS PC is not included.
- DisplayNote Launcher requires either a Windows OPS PC or an attached Windows PC.
- Connections include USB-C with DisplayPort Alt Mode and USB support, HDMI, USB-A, USB-B touch, DisplayPort, SD card, RS-232C, mic input, line output, S/PDIF, HDMI 2.1 output, and LAN.
- USB-C charging capability varies by port: the side USB-C connection supports up to 65 W PD, while front and bottom USB-C connections are specified for 15 W PD.
- Confirm Google service, third-party education app, Windows PC, and MDM-environment requirements for the intended workflow.
VideoConferenceGear.com Assistance
We can help confirm whether this 65-inch interactive display fits your classroom or training room, validate Windows OPS, Google service, and MDM requirements, and select the room-computer, accessory, licensing, deployment, and support approach for your rollout.
Common Questions
What is included with AVA-6520?
The box includes a remote control, wall mount, AC power cord, USB-A/B cable, HDMI cable, Quick Start Guide, two NFC cards, eraser, two styluses, and extra stylus tips.
Does it include a camera and microphones for hybrid teaching?
Yes. It includes a detachable 4K 13 MP camera and a 10-element microphone array with up to 8 m pickup, plus noise and echo cancellation.
Can it run without a Windows PC?
Yes, for its built-in Android 13 functions. DisplayNote Launcher specifically requires either a Windows OPS PC or an attached Windows PC.
Can a Windows OPS PC be added later?
Yes. The display has an OPS slot for a compatible slot-in PC, but an OPS PC is not included.
What warranty applies in the United States?
The North American A Series standard warranty is 3-year Advanced Exchange. A 2-year extension is available as an upgrade option; verify final entitlement with the authorized seller and purchase documentation.
Is a subscription required?
Core operation does not have an identified mandatory Avocor subscription. Confirm licensing for Google services, third-party education apps, and the selected MDM environment because those terms depend on the planned deployment.
Warranty Information
Avocor standard warranty is 3-year Advanced Exchange, with a 2-year extension available as an upgrade optionProduct Videos
