Highlights
- All-in-one video bar with a 4K camera (120° FOV, 3x digital/ePTZ zoom) and AI-powered group framing and composition modes.
- 6 beamforming MEMS microphones with echo and background noise cancellation, pickup range up to 13 ft. (4 m).
- 2x 10W full-duplex stereo speakers.
- 1 ClickShare Button included for wireless content sharing.
- Single-screen support, with dual-screen available on the Bar Pro model.
- Works with any videoconferencing platform, not locked to a single vendor.
- Cloud management through XMS Cloud.
Ideal For
- Small and medium-sized meeting rooms
- Multi-platform rooms not standardized on a single UC vendor
- Budget-conscious rooms that don't need dual-display or wired roomdock features
- IT-managed environments using XMS Cloud for fleet monitoring
Resources

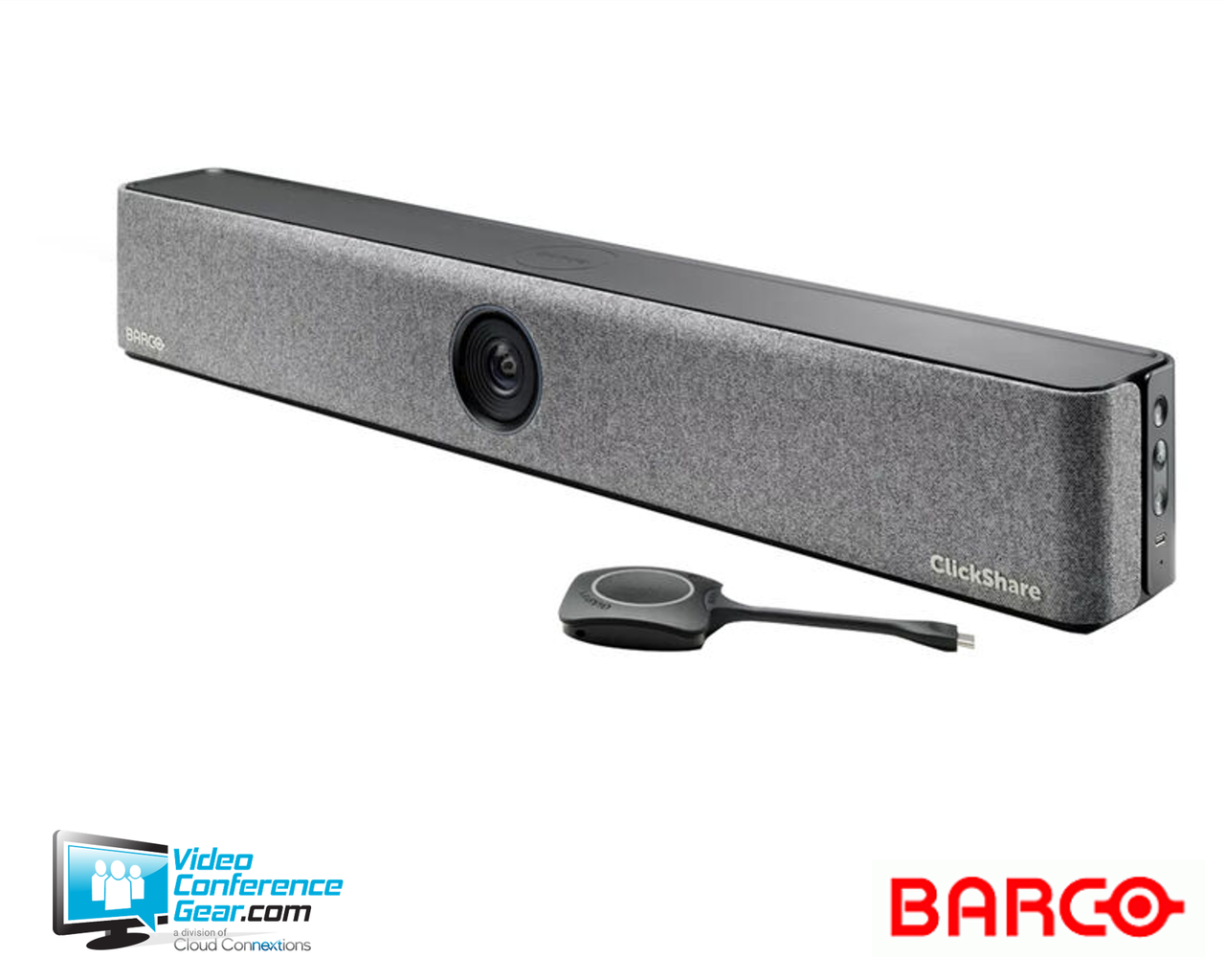

Barco ClickShare Bar Core, US, 1 Button (R9861632USB1)
The ClickShare Bar Core is an all-in-one video bar combining a 4K AI camera, a 6-microphone array, stereo speakers, and 1 ClickShare Button in a single device. It gives a small-to-medium room camera, audio, and wireless content sharing without additional components, and it works with any videoconferencing platform.
Bar Core is the entry point in Barco's video bar range. Bar Pro adds dual-screen support, a second Button, wired roomdock connectivity, and interactive features such as touchback and annotation. Confirm the room size against the camera's 120° field of view and the microphone pickup range before deployment.
Key Specifications
- Operating system support: Windows 10 and higher; macOS 11 (Ventura) and higher; Android 13 and higher (ClickShare App); iOS 16 and higher (ClickShare App)
- Camera: 4K, 120° field of view, 3x digital/ePTZ zoom
- Camera AI: group framing and composition modes
- Audio output: 2x 10W full-duplex stereo speakers
- Audio pickup: 6 beamforming MEMS microphones with echo and background noise cancellation, up to 13 ft. (4 m) range
- ClickShare Buttons: 1 included
- Wireless: IEEE 802.11 a/g/n/ac and IEEE 802.15.1
- Reach: up to 100 ft. (30 m) between Button and Bar
- Frequency band: 2.4GHz and 5GHz (DFS channels supported in select countries)
- Connections: USB-C host connection (DisplayPort 1.2 mode), plus USB-A, HDMI, and LAN
- Dimensions (H x W x D): 3.9 in x 25.2 in x 4.0 in (98 x 640 x 101 mm)
- Weight: 5.5 lb (2.5 kg)
- Certifications: FCC/CE
Certifications and Compatibility
- Works with any videoconferencing platform via the App or Button; not locked to a single platform.
- Network connection: LAN and Wi-Fi.
- Cloud managed and monitored via XMS Cloud.
Licensing, Warranty & Support
No platform license is required; the bar works with any videoconferencing platform. Barco's standard warranty is extendable to 5 years upon registering the device through SmartCare.
VideoConferenceGear.com Assistance
We can help confirm whether Bar Core or Bar Pro fits your room size and feature needs, and support standardizing your choice across a multi-room or multi-site rollout.
Common Questions
How many ClickShare Buttons are included?
One (1) ClickShare button is included in this kit.
Does it support dual displays?
No. Bar Core supports a single screen. Dual-screen support is available on Bar Pro.
Does it work with Microsoft Teams and Zoom?
Yes. It works with any videoconferencing platform via the App or Button.
What is the microphone pickup range?
Up to 13 ft. (4 m).
How does it differ from Bar Pro?
Bar Pro adds dual-screen support, a second Button, wired roomdock connectivity, and interactive features such as touchback and annotation.
