Highlights
- Mounts compatible Crestron 70 Series touch screens to a vertical mullion
- Supports both side-mount and front-mount configurations
- Conceals touch-screen wiring inside the mullion
- Compatible with 7-inch and 10.1-inch TSW and TSS models
- Supports optional Crestron room-availability light bars
- Black aluminum and steel construction
Ideal For
- Room-scheduling displays outside meeting spaces
- Glass-walled conference rooms and offices
- Interior windows and glass partitions
- Installations without a conventional wall-mounting surface
- Projects requiring a clean, finished cable path
Mount Crestron Room-Scheduling Touch Screens to a Glass-Wall Mullion

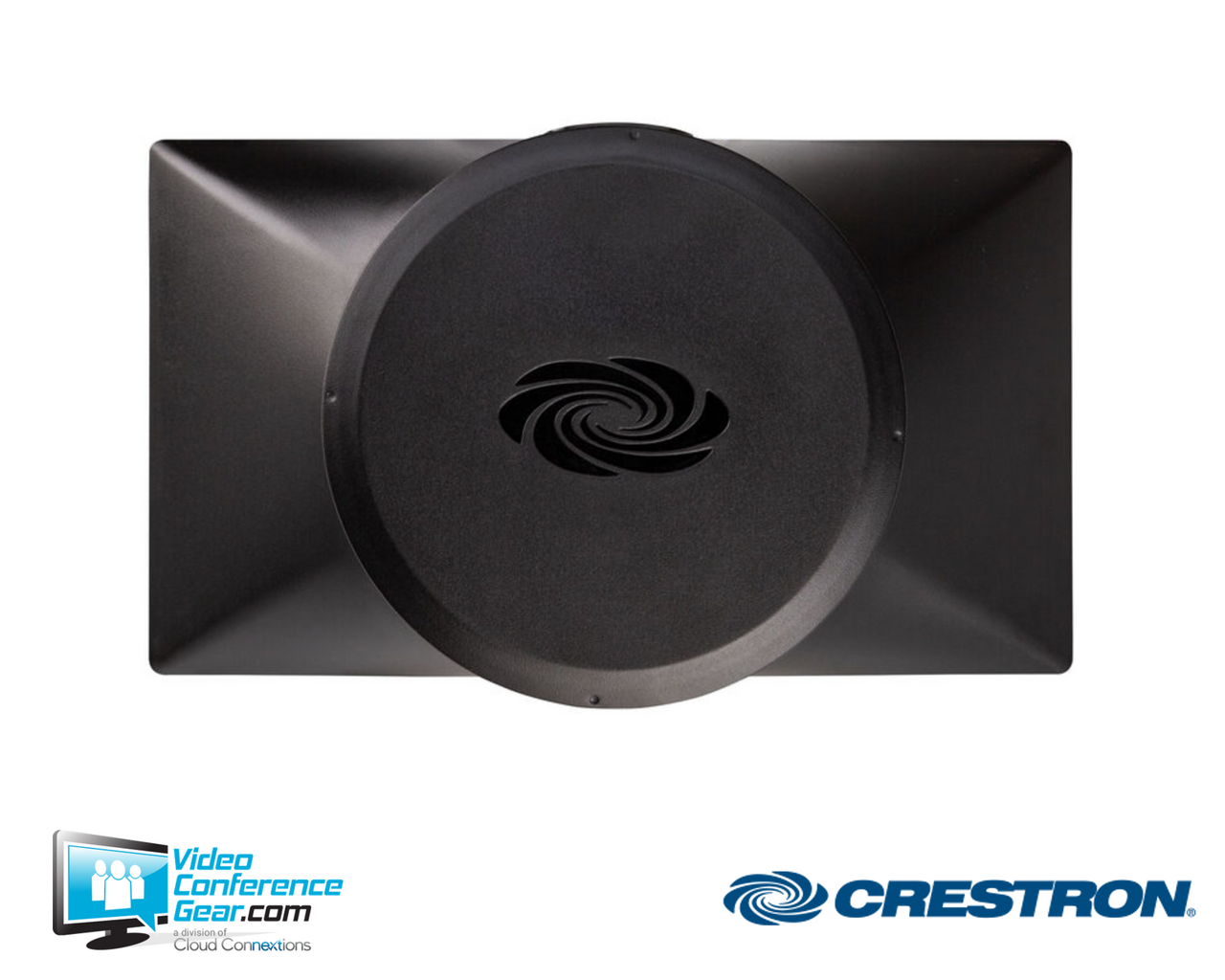

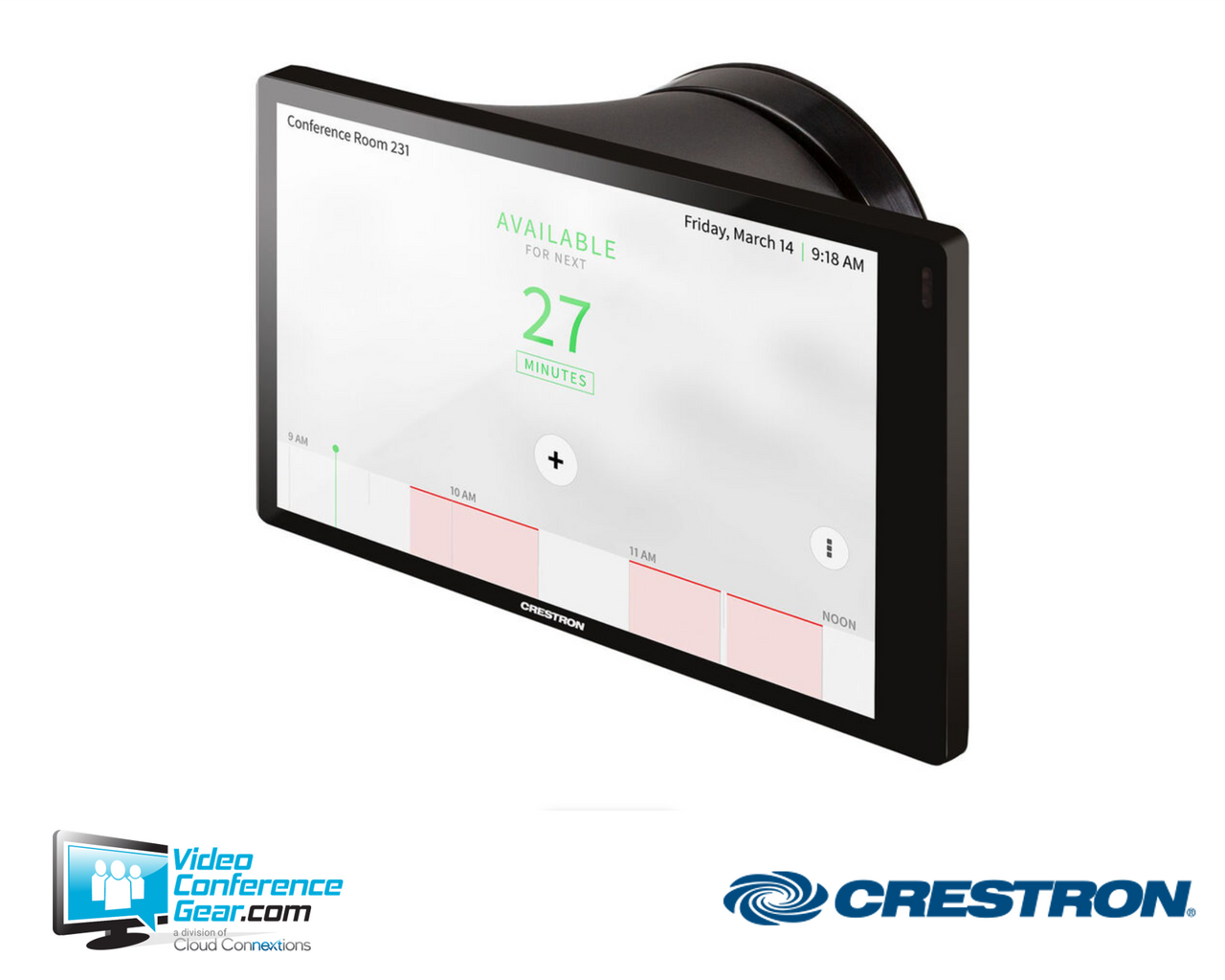

The Crestron TSW-770/1070-MUMK-B provides a purpose-built mounting solution for installing a compatible Crestron touch screen on the vertical mullion of an interior glass wall, window, or partition. It is particularly useful outside glass-walled meeting spaces where a traditional drywall or electrical-box installation is unavailable.
The kit attaches to the inside surface of a hollow metallic mullion and can position the touch screen to either the left or right. Two mounting-bracket configurations support either a side-mount or front-mount installation, allowing the installer to adapt the orientation to the room entrance and available mullion structure.
Touch-screen wiring is routed through the inside of the mullion, helping preserve the clean appearance of modern glass-wall environments. The mount also supports Crestron TSW-770-LB and TSW-1070-LB room-availability light bars when a visible indication of room status is required.
Compatible Crestron Touch Screens
The TSW-770/1070-MUMK-B supports the following Crestron touch-screen series:
- TSW-770
- TSS-770
- TSW-1070
- TSS-1070
It is also compatible with the TSW-770-LB and TSW-1070-LB light bars used to provide a visible indication of room availability. The touch screen and light bar are sold separately.
What's Included
- MCore 4 mini-PC
- SmartVision 80 four-lens AI camera
- MTouch Plus touch panel
- RoomSensor
- VCR20 remote control
- Power supplies, wall-mount brackets, and connecting cables for the included components
Flexible Mullion-Mounting Configurations
Side-Mount Configuration
The side-mount configuration positions the mounting arm alongside the hollow metallic mullion. This arrangement can be used where the touch screen needs to extend to the left or right of the mullion while maintaining a concealed wiring path.
Front-Mount Configuration
The front-mount configuration attaches the mounting assembly to the front-facing interior surface of the mullion. This provides an alternative orientation when the room layout, glass-wall construction, or desired touch-screen position makes a side installation less suitable.
Technical Specifications
- Product Type: Mullion touch-screen mounting kit
- Color: Black
- Housing Materials: Aluminum and steel
- Mounting Surface: Inside surface of a hollow metallic vertical mullion
- Mounting Orientations: Side mount or front mount
- Touch-Screen Position: Left or right of the mullion
- Cable Management: Wiring routed inside the mullion
- Weight: 16 oz. / 454 g without touch screen or light bar
VideoConferenceGear.com Assistance
VideoConferenceGear.com can help confirm touch-screen compatibility and determine whether the side-mount or front-mount configuration is appropriate for the mullion construction and room entrance.
Because the kit attaches inside a hollow metallic mullion and routes wiring through the mullion, the installation surface and available internal cable path should be verified before ordering.
Common Questions
Does this mount work with both 7-inch and 10.1-inch Crestron touch screens?
Yes. It supports the TSW-770 and TSS-770 7-inch series and the TSW-1070 and TSS-1070 10.1-inch series.
Can the touch screen be installed on either side of the mullion?
Yes. A compatible touch screen can be positioned to the left or right of the hollow metallic vertical mullion.
Does the kit support more than one mounting orientation?
Yes. The supplied mounting system supports side-mount and front-mount configurations.
Can the network cable be concealed?
The wiring is routed from inside the hollow mullion to the touch screen, providing a cleaner finished appearance.
Is the touch screen included?
No. The TSW-770/1070-MUMK-B is the mullion mounting accessory. The compatible touch screen and optional room-availability light bar are separate products.
