Highlights
- Runs the native Microsoft Teams Panels scheduling application directly on the touch screen, with no control system or custom programming required
- 10.1 in. (257 mm) WUXGA capacitive touch screen (1920 x 1200, 400 nits, 5-point multitouch) for clear room status visibility
- Includes one TSW-1070-LB-W-S light bar for 180-degree visual room availability indication, illuminating green when available and red when reserved
- Single-wire Ethernet with PoE/PoE+ power, or 802.11ac Wi-Fi connectivity where Ethernet isn't run to the mounting location
- XiO Cloud compatible for remote provisioning, monitoring, and mass management across an enterprise deployment
- Enterprise-grade network security including 802.1X authentication, TLS/HTTPS, and Active Directory service integration
- Built-in Bluetooth proximity beacon works with the Crestron Go App and Crestron App
Ideal For
- Enterprise Microsoft Teams meeting room and huddle space scheduling
- Multi-site standardization of room scheduling displays
- Corporate offices, conference centers, and education environments
- Deployments needing hallway-visible room availability status
- IT-managed rollouts requiring centralized cloud provisioning via XiO Cloud
Resources

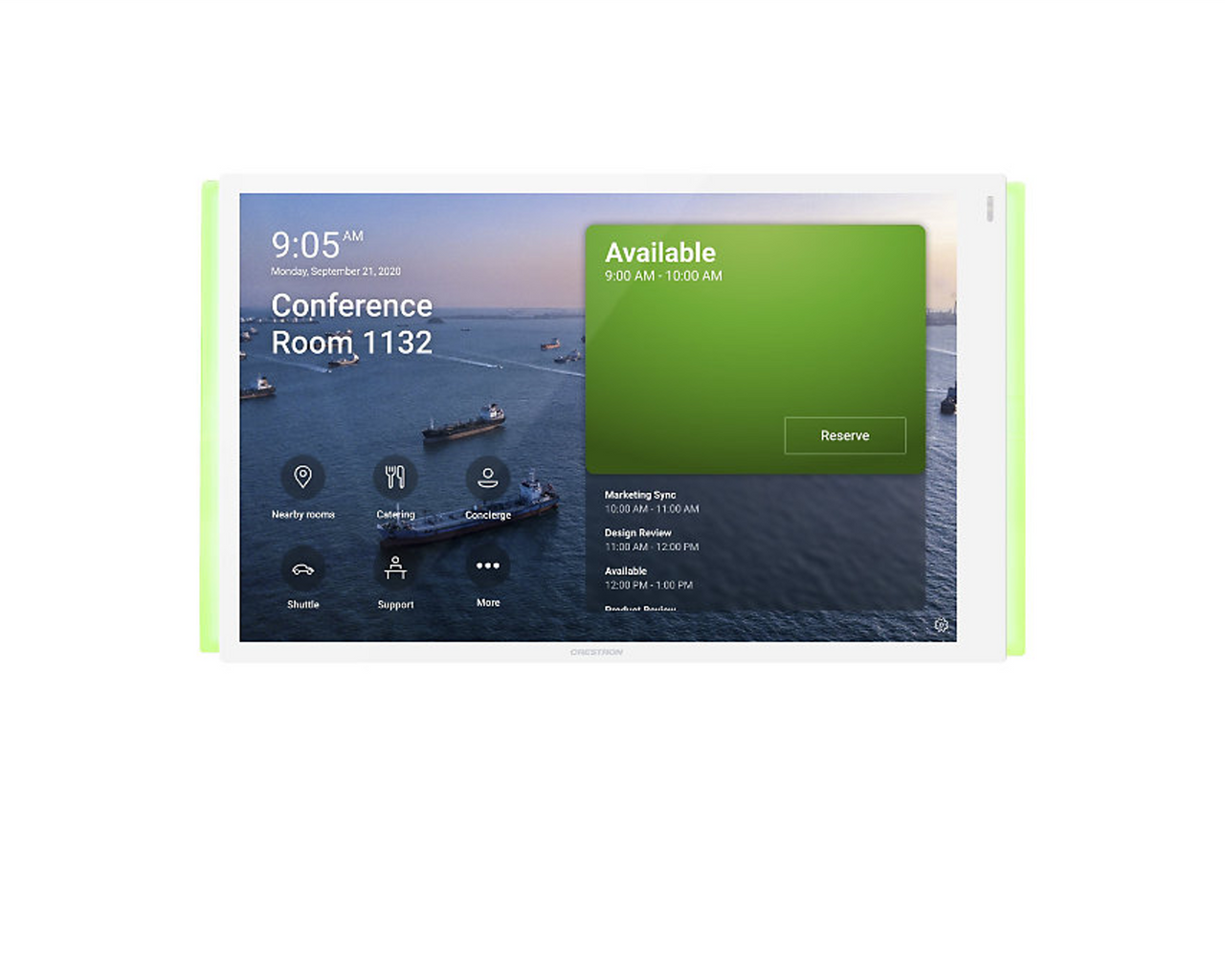

Crestron TSS-1070-T-W-S-LB KIT 10.1 in. Room Scheduling Touch Screen for Microsoft Teams, White Smooth
The Crestron TSS-1070-T-W-S-LB KIT is a 10.1 in. wall mount touch screen purpose built to run the Microsoft Teams Panels scheduling application. It installs outside a meeting room or huddle space, letting users view availability, book meetings from their Teams account, or reserve the room on the spot for an ad hoc meeting. Unlike Crestron's control system touch panels, the TSS-1070 cannot be interfaced with a control processor or custom programmed, so it is dedicated to the scheduling workflow out of the box.
This kit pairs the touch screen with the TSW-1070-LB-W-S light bar, so hallway visibility is included rather than a separate purchase. Before ordering, confirm the mounting location's electrical box type, whether PoE+ is available (required when the light bar is connected), and that the required Microsoft Teams Panels licensing is in place. Buyers evaluating other scheduling platforms should note that Crestron's non-Teams TSS-1070-W-S-LB KIT is a separate model.
Key Specifications
- Manufacturer model: TSS-1070-T-W-S-LB KIT (includes TSW-1070-LB-W-S light bar)
- Display: 10.1 in. (257 mm) TFT capacitive touch screen, WUXGA 1920 x 1200, 16:10, 400 nits, 1000:1 contrast, 5-point multitouch
- Wired networking: 100BASE-TX Ethernet, PoE/PoE+ (802.3at Type 2 PD)
- Wireless networking: 802.11a/b/g/n/ac Wi-Fi, WPA2-PSK security
- USB: (2) USB 2.0 Type A host ports for room scheduling accessories
- Bluetooth: integrated proximity detection beacon
- Dimensions: 5.87 x 10.18 x 2.28 in. (149 x 259 x 58 mm)
- Weight: 1.61 lb (730 g)
- Operating temperature: 41° to 104°F (0° to 40°C)
- Compliance: IC, CE, FCC Part 15 Class B
What's Included
- TSS-1070-T-W-S touch screen, white smooth finish
- TSW-1070-LB-W-S room availability light bar
- Wall mounting bracket for standard electrical box installation
Compatibility
- Microsoft Teams Panels: native support for the Teams Panels scheduling application. Functionality and appearance are controlled by Microsoft, and additional Microsoft subscriptions or licenses may be required.
- Not compatible with Crestron control system integration or custom programming. This model is dedicated to the Teams Panels scheduling workflow.
- Supports a single light bar or status indicator accessory over USB. This kit's included light bar occupies that connection, while the second USB port can host the optional RFID-USB card reader.
- Requires an 802.3at Type 2 PoE+ source when the light bar or a hallway sign accessory is connected via USB.
- XiO Cloud service compatible for remote enterprise provisioning and management.
Design Considerations
- Confirm electrical box type at the mounting location. This kit mounts over a 2- or 3-gang US box, a 2-gang European (DIN 49073) box, or a 2-gang UK (BS 4662) box. Other surfaces such as glass, mullions, drywall without a box, or racks require optional mounting accessories sold separately.
- Confirm PoE+ (802.3at Type 2) is available at the switch or injector. The included light bar draws power through USB and requires PoE+ rather than standard PoE.
- Only one light bar or status indicator accessory can be connected at a time. If a second accessory such as the RFID-USB reader is planned, confirm it uses the remaining USB port without conflict.
- Where Ethernet isn't run to the mounting location, confirm Wi-Fi coverage at the wall position (range up to 50 ft / 15 m, subject to site conditions).
- Since the panel cannot be interfaced with a control system or custom programmed, confirm the Teams Panels scheduling workflow meets the room's requirements, and confirm Microsoft licensing separately, before ordering.
Licensing, Warranty & Support
The TSS-1070 runs the Microsoft Teams Panels scheduling application. Teams Panels functionality and appearance are controlled by Microsoft, and additional Microsoft subscriptions or licenses may be required; confirm current Teams Panels licensing directly with Microsoft. The touch screen cannot be interfaced with a Crestron control system or custom programmed for other functionality. Crestron's Standard Limited Warranty covers this product for three years from the date of shipment (one year for motor or other moving mechanical parts) against defects in material or workmanship. A Return Material Authorization is required for any warranty return. XiO Cloud service is available for centralized provisioning, monitoring, and management.
VideoConferenceGear.com Assistance
We can help confirm which electrical box and mounting accessory fit your installation, verify your PoE+ switch or injector has capacity for the light bar, and check Wi-Fi coverage where Ethernet isn't available at the mounting location. We can also help standardize scheduling touch screens and accessories like hallway signs or the RFID-USB reader across a multi-room or multi-site Teams deployment.
Common Questions
Does the TSS-1070-T-W-S-LB require a Crestron control processor?
No. It cannot be interfaced with a control system and requires no custom programming. It runs the Microsoft Teams Panels application natively.
Does this model work with scheduling platforms other than Microsoft Teams?
No. This is the Teams-dedicated version. Crestron's separate TSS-1070-W-S-LB KIT supports other room scheduling services.
Can it run on Wi-Fi instead of a wired network?
Yes. It supports 802.11ac Wi-Fi where Ethernet isn't available at the mounting location.
How many scheduling accessories can be connected?
One light bar or status indicator accessory at a time. This kit's included light bar uses that connection, and the second USB port can host the optional RFID-USB card reader.
What warranty applies to this touch screen?
Three years from the date of shipment under Crestron's Standard Limited Warranty, with a one-year term for motor or moving mechanical parts.
