Highlights
- Purpose-built 75-inch 4K UHD IPS display designed specifically for the Yealink MTR (Microsoft Teams Rooms) system.
- Anti-glare coating and 500 nits brightness for clear visuals in varied lighting.
- Embedded mounting structure lets a Yealink MeetingBar, UVC camera, or MCore attach directly without wall drilling.
- Each attached device installs in under 5 minutes using the pre-designed mounting structure.
- Dual-Ethernet design can provide network connectivity to attached MTR devices.
- Wired content sharing via HDMI, wireless via AirPlay, Miracast, or a presentation pod.
- Unified coordination (sleep/wake, power sync, automatic Teams call switching) supported when the display runs in MTR mode.
- Managed alongside all MTR devices through a single platform (YMCS or YDMP).
Ideal For
- Medium to large conference rooms standardizing on Yealink's unified MTR display-and-device architecture
- Deployments wanting to eliminate a separate display mount and cable run for the MeetingBar, camera, or compute unit
- IT teams managing many rooms who want display and MTR devices on one management platform
- Rooms needing both wall-mounted and floor-stand installation flexibility

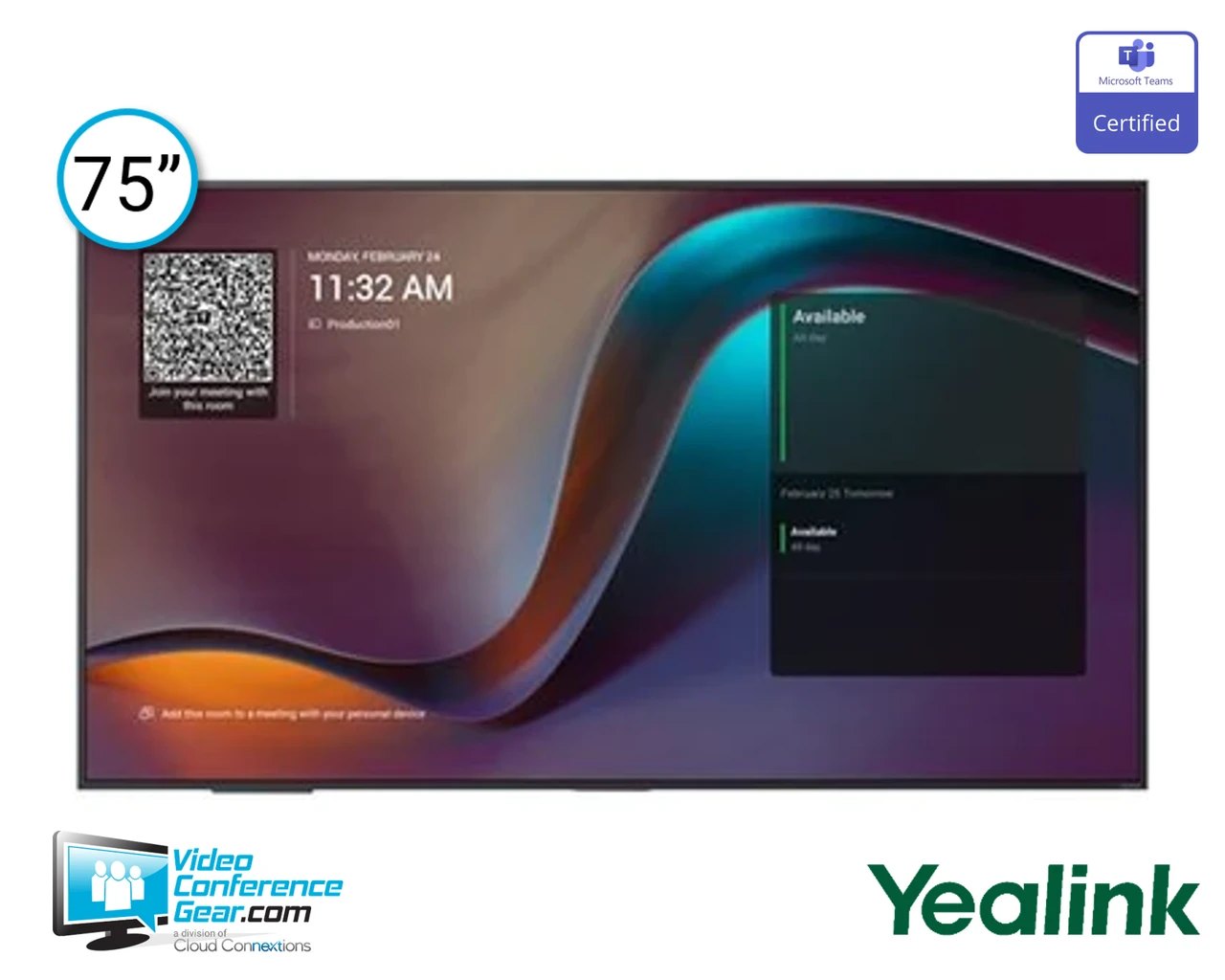

Yealink MeetingDisplay 75 (MD75) 4K UHD Display for Unified MTR System (1203691)
The MeetingDisplay 75 is a 75-inch 4K UHD IPS display purpose-built for the Yealink MTR (Microsoft Teams Rooms) system, not a general-purpose large-format display. Its anti-glare coating and 500 nits brightness deliver clear visuals across varied room lighting, and its defining feature is a customized structure with mounting brackets embedded into the back, letting a Yealink MeetingBar, UVC camera, or MCore mini-PC attach directly without drilling into the wall, each installable in under 5 minutes.
Content sharing works both wired, over HDMI with near-zero latency, and wirelessly via AirPlay, Miracast, or a presentation pod. A dual-Ethernet design lets the display pass network connectivity to attached MTR devices, and when the display runs in MTR mode, it coordinates with those devices for synchronized sleep/wake, power on/off, and automatic switching to an incoming Teams call. The whole system is managed through Yealink's YMCS or YDMP platform and configured from a single touch console. Before ordering, confirm the room needs the 75-inch size rather than the 65 or 86-inch variants, and plan for a compatible touch console, which is not included.
Key Specifications
- Manufacturer model: MeetingDisplay 75 / MD75 (SKU 1203691)
- Product type: 4K UHD IPS display purpose-built for the Yealink MTR system
- Display: 75-inch, 4K UHD, IPS panel, anti-glare coating, 500 nits brightness
- Speakers: 2x 12W stereo
- Wireless: Wi-Fi 6, Bluetooth 5.1
- Operating system: Android 13
- Content sharing: wired via HDMI (near-zero latency), wireless via AirPlay, Miracast, or presentation pod
- Networking: dual-Ethernet, can pass connectivity to attached MTR devices
- Mounting: embedded structure for direct attachment of MeetingBar, UVC camera, or MCore, no wall drilling required, each device installable in under 5 minutes; supports wall-mounted or floor-stand installation
- System coordination: synchronized sleep/wake-up, power on/off, and automatic Teams call input switching, supported in MTR mode
- Additional mode: digital signage
- Management: Yealink Management Cloud Service (YMCS) or Yealink Device Management Platform (YDMP)
- Configuration: single touch console (not included)
What's Included
- MeetingDisplay 75 unit
- Power supply unit
Certifications and Compatibility
- Yealink MTR (Microsoft Teams Rooms) system: purpose-built to integrate with the MeetingBar, UVC camera, and MCore mini-PC.
- Unified coordination features (touch console display control, automatic input switching, automatic wake) are supported only when the display is operating in MTR mode.
- Touch console: required for unified configuration of the display and MTR devices, not included with the display.
- Management: compatible with Yealink Management Cloud Service (YMCS) and Yealink Device Management Platform (YDMP).
- Family sizing: also available as MeetingDisplay 65 and MeetingDisplay 86 for smaller or larger rooms; this is the 75-inch, medium-to-large room variant.
- Compatibility is limited to Yealink-published MTR components. Confirm current compatibility against Yealink's MTR system documentation for your specific deployment.
Design Considerations
- Confirm the room size calls for the 75-inch display rather than the 65 or 86-inch MeetingDisplay variants.
- Plan which MTR devices (MeetingBar, UVC camera, MCore) will attach directly to the display, since the mounting structure is built for these specific devices.
- Include a compatible touch console in the order, since it is required to configure the display and MTR system but is not included with the display itself.
- Confirm the display is deployed and configured in MTR mode if unified sleep/wake and automatic input switching are required.
- Choose wall-mounted or floor-stand installation based on the room's layout.
- For multi-room standardization, specify a consistent MeetingDisplay size and MTR device set so every room installs and manages the same way.
Licensing, Warranty & Support
No license or subscription applies to the MeetingDisplay itself. It includes a three-year hardware warranty. Management and configuration are handled through Yealink Management Cloud Service (YMCS) or the Yealink Device Management Platform (YDMP), alongside a compatible touch console.
VideoConferenceGear.com Assistance
We can confirm the MeetingDisplay 75 is the right size for your room, or whether the 65 or 86-inch variant fits better. We can help plan which MTR devices, MeetingBar, UVC camera, or MCore, will attach directly to the display, confirm a compatible touch console is included in the order, and make sure the display is configured in MTR mode for full unified coordination. For multi-room and multi-site programs we can help standardize the MeetingDisplay size and MTR device set across every room.
Common Questions
Is this just a large display, or is it built for something specific?
It's purpose-built for the Yealink MTR system. Its back has an embedded mounting structure so a MeetingBar, UVC camera, or MCore attaches directly without wall drilling.
Does it come with a touch console?
No. A touch console is required to configure the display and MTR system together, but it is not included with the MeetingDisplay.
How does content sharing work?
Wired over HDMI with near-zero latency, or wirelessly via AirPlay, Miracast, or a presentation pod.
Does the display sleep and wake with the room system?
Yes, when running in MTR mode. Touch console control, automatic input switching, and automatic waking are supported specifically in that mode.
What sizes are available?
65-inch, 75-inch, and 86-inch, for small, medium, and large rooms respectively. This is the 75-inch variant.
What is the warranty?
A three-year hardware warranty.
