Highlights
- Purpose-built 65-inch 4K UHD IPS display designed specifically for the Yealink MTR (Microsoft Teams Rooms) system.
- Anti-glare coating, 500 nits brightness, 1200:1 contrast ratio, and 178° viewing angle for clear visuals.
- Embedded mounting structure lets a Yealink MeetingBar, UVC camera, or MCore attach directly without wall drilling.
- Each attached device installs in under 5 minutes using the pre-designed mounting structure.
- Extensive connectivity: 3x HDMI in, 2x USB-A, 1x USB-B, 2x LAN, RS232, IR control.
- Wired content sharing via HDMI, wireless via AirPlay, Miracast, or a presentation pod.
- Unified coordination (sleep/wake, power sync, automatic Teams call switching) supported when the display runs in MTR mode.
- Three-year hardware warranty.
Ideal For
- Small conference rooms and huddle spaces standardizing on Yealink's unified MTR display-and-device architecture
- Deployments wanting to eliminate a separate display mount and cable run for the MeetingBar, camera, or compute unit
- IT teams managing many rooms who want display and MTR devices on one management platform
- Rooms needing extensive wired connectivity alongside wireless sharing options
Yealink MeetingDisplay 65 (MD65) 4K UHD Display for Unified MTR System (1203690)

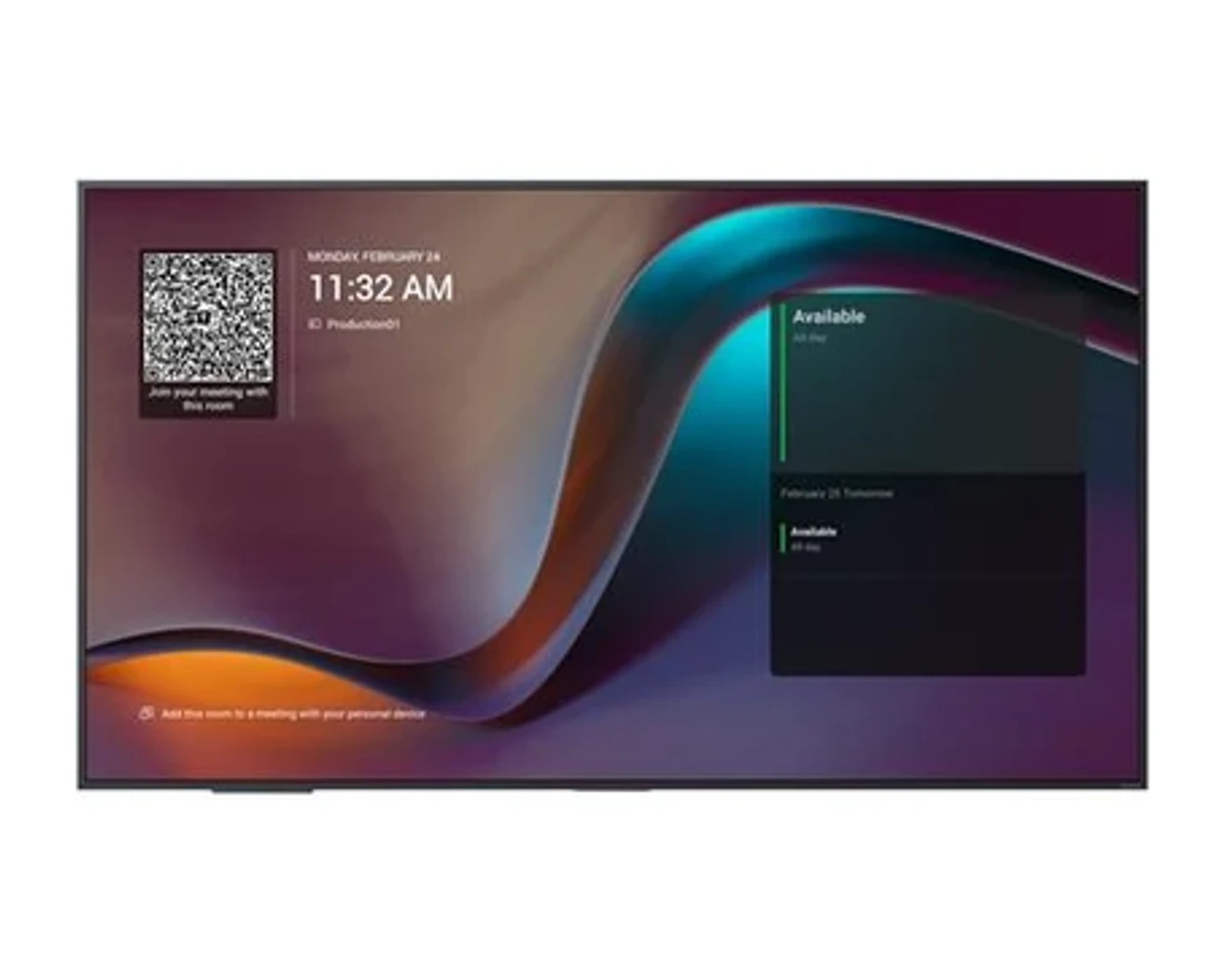

The MeetingDisplay 65 is a 65-inch 4K UHD IPS display purpose-built for the Yealink MTR (Microsoft Teams Rooms) system, sized for small rooms as the entry point in Yealink's 65/75/86-inch MeetingDisplay family. Its anti-glare coating, 500 nits brightness, 1200:1 contrast ratio, and 178° viewing angle deliver clear visuals, and its defining feature is a customized structure with mounting brackets embedded into the back, letting a Yealink MeetingBar, UVC camera, or MCore mini-PC attach directly without drilling into the wall, each installable in under 5 minutes.
Connectivity is extensive for a display this size, with three HDMI inputs, two USB-A ports, a USB-B port, two LAN ports, RS232, and IR control, alongside wireless content sharing via AirPlay, Miracast, or a presentation pod. When the display runs in MTR mode, it coordinates with attached MTR devices for synchronized sleep/wake, power on/off, and automatic switching to an incoming Teams call, and the whole system is managed through Yealink's YMCS or YDMP platform, configured from a single touch console. Before ordering, confirm the room needs the 65-inch size rather than the 75 or 86-inch variants, and plan for a compatible touch console, which is not included.
Key Specifications
- Manufacturer model: MeetingDisplay 65 / MD65 (SKU 1203690)
- Product type: 4K UHD IPS display purpose-built for the Yealink MTR system
- Display: 65-inch, 4K UHD (3840 x 2160), IPS panel, anti-glare coating, 500 nits (cd/m²) brightness, 1200:1 contrast ratio, 178° viewing angle, 60Hz refresh rate
- Panel mounting interface: 400 x 400 mm VESA
- Speakers: 2x 12W stereo
- Wireless: Wi-Fi 6 (2.4G/5G), Bluetooth 5.1
- Operating system: Android 13
- Connectivity: 3x HDMI in, 2x USB-A, 1x USB-B, 2x LAN, RS232, IR control
- Content sharing: wired via HDMI, wireless via AirPlay, Miracast, or presentation pod
- Power: max 210W, typical 183W
- Environmental: operating temperature 0-40°C, humidity 10-95%
- Display weight: 19.9 kg
- Mounting: embedded structure for direct attachment of MeetingBar, UVC camera, or MCore, no wall drilling required, each device installable in under 5 minutes; supports wall-mounted or floor-stand installation
- System coordination: synchronized sleep/wake-up, power on/off, and automatic Teams call input switching, supported in MTR mode
- Additional mode: digital signage
- Management: Yealink Management Cloud Service (YMCS) or Yealink Device Management Platform (YDMP)
- Configuration: single touch console (not included)
What's Included
- MeetingDisplay 65 unit
- Cable pack
- Remote controller
- MCore bracket
Certifications and Compatibility
- Yealink MTR (Microsoft Teams Rooms) system: purpose-built to integrate with the MeetingBar, UVC camera, and MCore mini-PC.
- Unified coordination features (touch console display control, automatic input switching, automatic wake) are supported only when the display is operating in MTR mode.
- Touch console: required for unified configuration of the display and MTR devices, not included with the display.
- Management: compatible with Yealink Management Cloud Service (YMCS) and Yealink Device Management Platform (YDMP).
- Family sizing: also available as MeetingDisplay 75 and MeetingDisplay 86 for larger rooms; this is the 65-inch, small-room variant.
- Compatibility is limited to Yealink-published MTR components. Confirm current compatibility against Yealink's MTR system documentation for your specific deployment.
Design Considerations
- Confirm the room size calls for the 65-inch display rather than the 75 or 86-inch MeetingDisplay variants.
- Plan which MTR devices (MeetingBar, UVC camera, MCore) will attach directly to the display, since the mounting structure is built for these specific devices, and an MCore bracket ships in the box.
- Include a compatible touch console in the order, since it is required to configure the display and MTR system but is not included with the display itself.
- Confirm the display is deployed and configured in MTR mode if unified sleep/wake and automatic input switching are required.
- Choose wall-mounted or floor-stand installation based on the room's layout.
- For multi-room standardization, specify a consistent MeetingDisplay size and MTR device set so every room installs and manages the same way.
Licensing, Warranty & Support
No license or subscription applies to the MeetingDisplay itself. It includes a three-year hardware warranty. Management and configuration are handled through Yealink Management Cloud Service (YMCS) or the Yealink Device Management Platform (YDMP), alongside a compatible touch console.
VideoConferenceGear.com Assistance
We can confirm the MeetingDisplay 65 is the right size for your room, or whether the 75 or 86-inch variant fits better. We can help plan which MTR devices, MeetingBar, UVC camera, or MCore, will attach directly to the display, confirm a compatible touch console is included in the order, and make sure the display is configured in MTR mode for full unified coordination. For multi-room and multi-site programs we can help standardize the MeetingDisplay size and MTR device set across every room.
Common Questions
Is this just a large display, or is it built for something specific?
It's purpose-built for the Yealink MTR system. Its back has an embedded mounting structure so a MeetingBar, UVC camera, or MCore attaches directly without wall drilling, and an MCore bracket ships in the box.
Does it come with a touch console?
No. A touch console is required to configure the display and MTR system together, but it is not included with the MeetingDisplay.
What connectivity does it offer?
Three HDMI inputs, two USB-A ports, a USB-B port, two LAN ports, RS232, and IR control, along with wireless sharing via AirPlay, Miracast, or a presentation pod.
Does the display sleep and wake with the room system?
Yes, when running in MTR mode. Touch console control, automatic input switching, and automatic waking are supported specifically in that mode.
What sizes are available?
65-inch, 75-inch, and 86-inch, for small, medium, and large rooms respectively. This is the 65-inch, small-room variant.
What is the warranty?
A three-year hardware warranty.
