Highlights
- Complete Native Microsoft Teams Rooms system for large rooms, pre-integrated with Dante ceiling audio.
- SmartVision 80 quad-lens 4K camera: 20x optical zoom PTZ lens, dual telephoto lenses, panoramic lens, tracking up to 20 meters.
- CM50 Dante beamforming ceiling microphone: 127-element array, 5-meter radius pickup, 8 customizable zones.
- Four CS10-D Dante ceiling speakers for even, high-fidelity room coverage.
- AP08 digital signal processor ties the Dante audio system together with 16x16 channels and 8 AEC-optimized channels.
- MCore 4 mini-PC (Intel Core Ultra 5, 34 TOPS NPU) preloaded with Windows 11 IoT Enterprise and the Teams Rooms app.
- MTouch Plus touch console and RoomSensor for control and automatic wake.
- Clean ceiling installation with no tabletop microphone or speaker clutter.
Ideal For
- Large conference rooms wanting fully integrated ceiling audio rather than tabletop devices
- Rooms with long tables or irregular seating that benefit from distributed ceiling microphone and speaker coverage
- ProAV-minded deployments building on Dante as the audio standard from day one
- Organizations wanting a pre-configured bundle rather than assembling camera, DSP, and ceiling audio separately
- Native Microsoft Teams Rooms standardization at the large-room tier
Resources

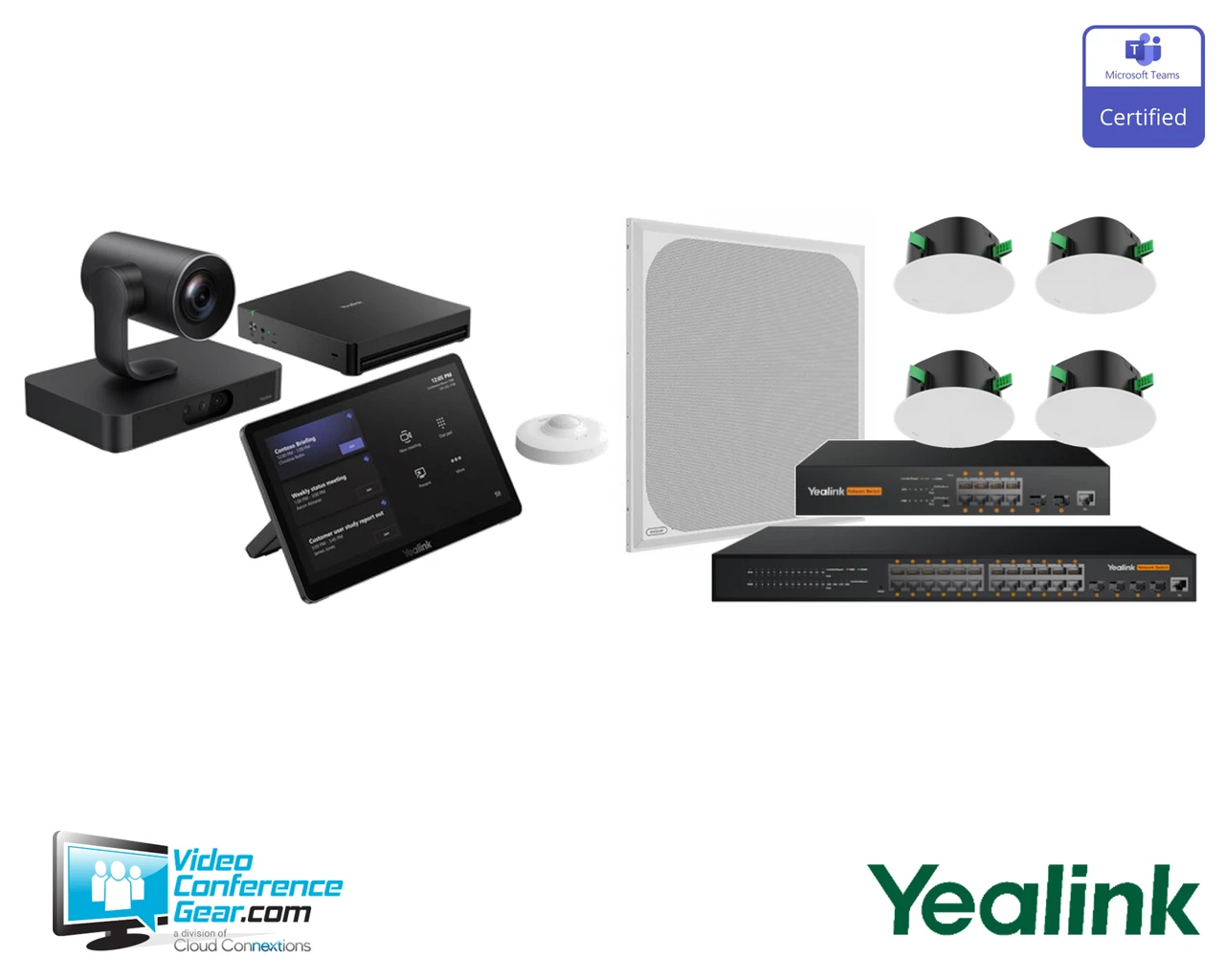

Yealink MVC S80 with Ceiling Audio System for Large Rooms (MVCS80CEAUDIO)
The MVCS80CEAUDIO bundle combines Yealink's MVC S80 Native Microsoft Teams Rooms system with a fully integrated Dante ceiling audio setup, purpose-built for large rooms. The SmartVision 80 camera provides quad-lens 4K video with 20x optical zoom, tracking subjects up to 20 meters away, while the CM50 ceiling microphone's 127-element beamforming array and four CS10-D ceiling speakers deliver room-filling audio without any tabletop hardware.
An AP08 digital signal processor ties the audio system together, routing and processing Dante audio between the CM50 and the four CS10-D speakers, so the room gets broadcast-quality sound without cable clutter at the table. The kit is completed by the MCore 4 mini-PC, preloaded with Windows 11 IoT Enterprise and the Teams Rooms app, plus the MTouch Plus touch console and RoomSensor for control and automatic wake. Before ordering, confirm the room's ceiling type for microphone and speaker mounting, plan the AP08's rack, wall, or table location, and confirm the included PoE+ switch model with your Yealink representative.
Key Specifications
- Kit components: MVC S80-C5U-000 (SmartVision 80, MCore 4, MTouch Plus, RoomSensor), CM50 ceiling microphone, 4x CS10-D ceiling speakers, AP08 DSP, PoE+ switch
- Camera (SmartVision 80): quad-lens 4K system, 20x optical zoom PTZ lens, 2x telephoto lenses, 1x panoramic lens, tracking to 20 m
- Compute (MCore 4): Intel Core Ultra 5, integrated NPU (34 TOPS), 16 GB (2x8 GB) DDR5, 256 GB SSD
- Microphone (CM50): 127-element beamforming array, 5 m radius pickup, 8 customizable zones, Dante
- Speakers (CS10-D): 4x, Dante-enabled ceiling speakers
- DSP (AP08): 16x16 Dante audio channels, 8 channels with dynamic AEC, noise cancellation, reverberation suppression
- Control: MTouch Plus 11.6-inch touch console
- Occupancy: RoomSensor, Bluetooth-connected, automatic wake
- Network: PoE+ switch included (confirm exact model with your Yealink representative; the standard Yealink SkySound hub is the RCH40 E2)
What's Included
- SmartVision 80 camera (with MVC S80-C5U-000 package: MCore 4, MTouch Plus, RoomSensor)
- CM50 Dante beamforming ceiling microphone
- 4x CS10-D Dante ceiling speakers
- AP08 digital signal processor
- PoE+ switch
Certifications and Compatibility
- Native Microsoft Teams Rooms on Windows: certified system, with the MCore 4 running Windows 11 IoT Enterprise and the Teams Rooms app preloaded.
- Dante audio networking: CM50, CS10-D speakers, and AP08 communicate over Dante as the audio transport.
- Camera integration: SmartVision 80 sound source localization supports accurate camera tracking alongside the ceiling audio system.
- Compatibility is limited to Yealink-published SkySound and MVC components. Confirm current compatibility, and confirm the exact PoE+ switch model included, against Yealink's documentation for this bundle.
Design Considerations
- Confirm ceiling type and mounting method for the CM50 and each CS10-D speaker before installation.
- Plan the AP08's physical location (rack, wall, or table) and its Dante network and power connections.
- Use Yealink Room Designer software to configure automated audio design and acoustic-environment adaptation for the specific room.
- Confirm the exact PoE+ switch model included in this bundle with your Yealink representative before finalizing network design.
- A Microsoft Teams Rooms license, display, and wired network are required and not included.
- For multi-room standardization, specify a consistent ceiling-audio configuration so every large room shares the same architecture.
Licensing, Warranty & Support
The MVCS80CEAUDIO is a Native Microsoft Teams Rooms system, and a Microsoft Teams Rooms license is required for operation and is not included with the hardware. The MCore 4 ships with Windows 11 IoT Enterprise and its license preloaded. The system is covered by Yealink's standard limited hardware warranty, with terms available from Yealink or an authorized reseller at the time of purchase. Firmware, configuration, and remote management are available through Yealink RoomConnect and Room Designer.
VideoConferenceGear.com Assistance
We can help confirm the MVCS80CEAUDIO is the right fit for your large room, and plan CM50 and CS10-D speaker placement for the ceiling type in use. We can advise on AP08 placement and Dante network routing, confirm the exact PoE+ switch model included, and help configure the system in Yealink Room Designer for acoustic-environment-adaptive tuning. For multi-room and multi-site programs we can help standardize the ceiling-audio Teams Rooms architecture across every large space.
Common Questions
What does this bundle include?
The MVC S80-C5U-000 package (SmartVision 80 camera, MCore 4, MTouch Plus, RoomSensor), plus a CM50 ceiling microphone, four CS10-D ceiling speakers, an AP08 DSP, and a PoE+ switch.
Why four ceiling speakers?
Four CS10-D speakers provide even, room-filling audio coverage for a large room without relying on a single point source.
How do the audio components communicate?
Over Dante audio networking, routed and processed through the AP08.
Is this Teams Rooms or Zoom Rooms?
Microsoft Teams Rooms on Windows.
Is a Teams Rooms license included?
No. A Microsoft Teams Rooms license is required for operation and is separate from the hardware.
Which PoE+ switch is included?
Distributor listings reference "RCH240." Confirm the exact model with your Yealink representative, since the standard Yealink SkySound hub is the RCH40 E2.
