Highlights
- Wireless presentation with 4K content sharing using two next-gen ClickShare Buttons (5th Generation) with USB-C DisplayPort.
- Wireless BYOD support for Microsoft Teams Rooms to run other conferencing platforms, including Zoom, Webex, and Google Meet.
- Includes the ClickShare Control Panel for one-tap meeting start.
- Built on the Microsoft Device Ecosystem Platform (MDEP) and requires a Microsoft Teams Rooms license.
- Dual display support, with HDMI-1 driving up to UW5K WUHD (5120 x 2160) and HDMI-2 up to 4K UHD (3840 x 2160), both at 30Hz.
- Cloud device management and reporting through XMS Cloud.
- Certified for Microsoft Teams as part of a room system bundle.
Ideal For
- Medium-sized Microsoft Teams Rooms deployments
- Rooms needing one-tap meeting start alongside wireless BYOD fallback
- Multi-room or multi-site standardization on a certified Teams Rooms bundle
- IT-managed environments using XMS Cloud for fleet monitoring
Resources
Barco ClickShare Hub Pro and Control Panel Kit, US, 2 Buttons (R9461810US)

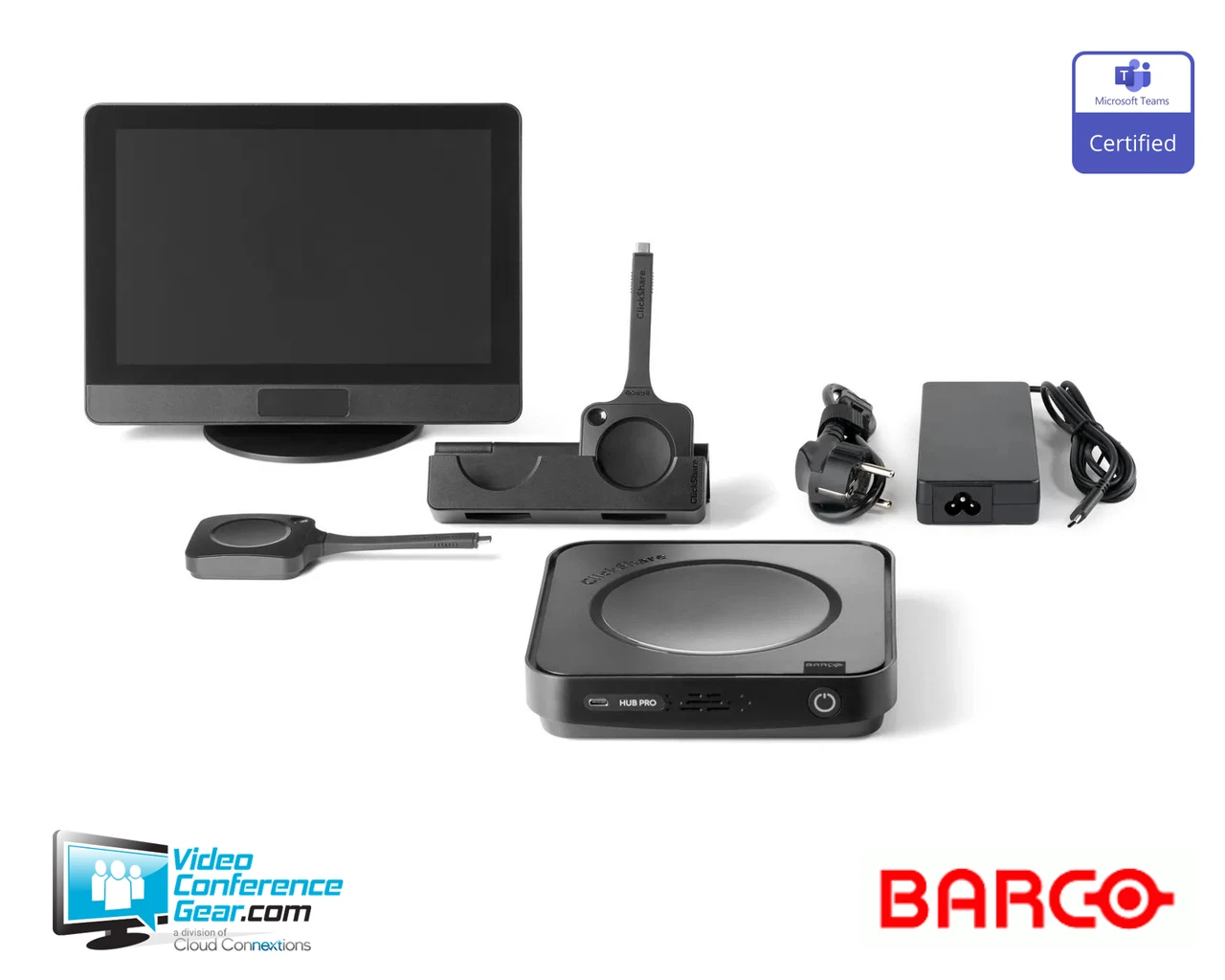

The ClickShare Hub Pro and Control Panel Kit pairs Barco's Hub Pro base unit with the ClickShare Control Panel and two next-gen ClickShare Buttons, giving a meeting room a one-tap Teams meeting start alongside 4K wireless content sharing. The Control Panel handles meeting start and room control, while the two Buttons provide guest-friendly, driver-free wireless sharing.
The system runs on the Microsoft Device Ecosystem Platform (MDEP) and requires a Microsoft Teams Rooms license, which should be confirmed and provisioned separately from the hardware purchase. Dual-display output is supported, with each HDMI port carrying a different maximum resolution, so display assignment should be planned before installation.
Key Specifications
- Operating system: Android (MDEP)
- Microsoft Teams Rooms license: required
- Video outputs: HDMI-1 up to UW5K WUHD (5120 x 2160) @30Hz; HDMI-2 up to 4K UHD (3840 x 2160) @30Hz; eDP (Control Panel) HD (1280 x 800) @60Hz
- Video input: 4K UHD (3840 x 2160) @30Hz via HDMI 2.0
- ClickShare Buttons: 2x 5th Generation
- Wireless: IEEE 802.11 a/b/g/n/ac/ax/be and Bluetooth 5.3; 2.4GHz, 5GHz, and 6GHz bands
- Wireless reach: up to 100 ft. (30 m) between Button and Base Unit
- Noise level: max 25 dBA below 30°C (86°F), max 30 dBA above 30°C (86°F)
- Base Unit connections (rear): 1x Gigabit Ethernet, 1x USB-C Power Delivery 3.1 EPR, 2x HDMI 2.0 output, 2x USB-C 2.0/3.0, 1x USB-A 2.0/3.0, 1x USB-C 2.0/3.0 device + DisplayPort output, 1x USB-C 2.0 + DisplayPort output; front: 1x USB-C 2.0/3.0
- Base Unit dimensions (H x W x D): 1.46 in x 7.09 in x 7.09 in (37 x 180 x 180 mm)
- Base Unit weight: 1.59 lb (720 g)
- Control Panel: 10.1-inch projected capacitive touchscreen, 1280 x 800 @60Hz, 300 nits, up to 4 touch points
- Control Panel dimensions (H x W x D): 10.02 in x 7.40 in x 3.03 in (254.5 x 187.9 x 76.9 mm)
- Control Panel weight: 1.81 lb (820 g)
- Power supply: external USB-C charger, 100 W (PD3.0 SPR) or 180 W (PD3.1 EPR)
- Power consumption: 160 W operational (max)
- Certifications: FCC/CE
- Anti-theft: Kensington lock on Base Unit and Control Panel
What's Included
- ClickShare Hub Pro Base Unit
- 2x ClickShare Buttons, 5th Generation
- ClickShare Control Panel
- Mounting disc
- ClickShare 10M 20W USB-C AOC cable
- L-shape mounting plate
- Round base
- Screw pack
- USB-C cable lock kit
- Power cord and power supply
- Safety manual and quick setup guide
Certifications and Compatibility
- Certified for Microsoft Teams as part of a room system bundle; requires a Microsoft Teams Rooms license.
- Supports wireless BYOD for other videoconferencing platforms, including Zoom, Webex, and Google Meet.
Design Considerations
- Confirm and provision the Microsoft Teams Rooms license separately before deployment; it is not included with the hardware.
- Plan display assignment before installation. HDMI-1 and HDMI-2 support different maximum resolutions, so match each display to the correct port.
- Confirm the power adapter used, since maximum Power Delivery differs between the 100 W (PD3.0 SPR) and 180 W (PD3.1 EPR) options.
Licensing, Warranty & Support
A Microsoft Teams Rooms license is required and is provisioned separately from the hardware purchase. Barco's standard warranty on this kit is 3 years. The system is managed and monitored through XMS Cloud.
VideoConferenceGear.com Assistance
We can help confirm Teams Rooms licensing requirements before you order, plan display assignment across the HDMI-1 and HDMI-2 outputs, and advise on power adapter selection for your room. We can also support standardizing this kit across a multi-room or multi-site rollout.
Common Questions
Does this kit include the ClickShare Control Panel?
Yes. The Control Panel is included and provides one-tap meeting start.
Does it require a Microsoft Teams Rooms license?
Yes. The system is built on the Microsoft Device Ecosystem Platform and requires a Microsoft Teams Rooms license, provisioned separately from the hardware.
Can it be used with platforms other than Microsoft Teams?
Yes. It supports wireless BYOD for other videoconferencing platforms, including Zoom, Webex, and Google Meet.
What warranty applies to this kit?
3 years standard.
